Specifications
Model NO. :
ZM0.3B
Fineness :
Nano, Mircon
Separator :
Gap Separator
Seal Type :
Lip Seal
Automatic Circulation :
Yes
Transport Package :
Fumigation Wooden Box
Specification :
CE, ISO9001: 2008, SGS
Trademark :
DEGOLD
Origin :
Chongqing, China
HS Code :
8479820090
Supply Ability :
60 Sets Per Month
Grinding Chamber Volume :
0.3 L
Bead Mill Type :
Grinding Discs Type
Application :
Paint, Inks, Pigments
Function :
R&D
Cooling Water Jacket :
Yes
Suitable Grinding Medium :
Zirconium/Zirconia/Zircon Beads
Customization :
Available | Customized Request
Description

Explosion Proof Horizontal Bead Mill Nano Bead Grinding Machine

Grinding Chamber Volume of 0.3L Lip Seal Explosion-Proof Horizontal Bead Mill ZM0.3BHorizontal Nano Bead Mill Explosion Proof Horizontal Sand Mill
Product Description:

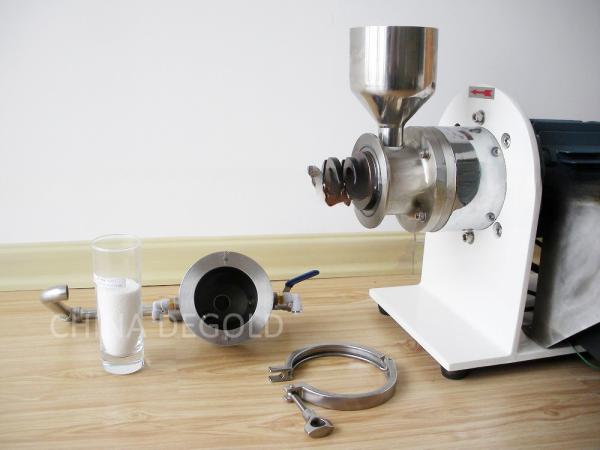

Laboratory Wet Bead Mill - Model (ZM0.3B)

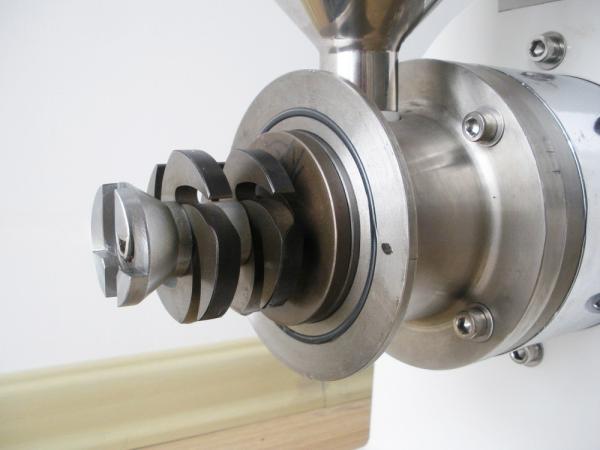

Construction:
1. Facile structure is great practicably.
2. Having with water-cooling clamp sheath.
3. Automatic circular grinding structure, no need pump and valve.
4. Transducer adjusts the rotor speed of main machine, which is much easier to control the whole effect.
5. Simply operation, convenient and simply to remove the grinding groove to wash;

6. Swift changing the lab prescription is available.
7. Cooling and heating procedures according to different requirements is available.
8. Ex proof, suitable for solvent based formulations.
Horizontal Nano Bead Mill Explosion Proof Horizontal Sand Mill


Application:
Horizontal Nano Bead Mill Explosion Proof Horizontal Sand Mill

Agrochemicals Pesticide, Herbicide, Fertilizer, SC
Ceramic Industry Ceramic inks, Ceramic pigments
Printing Inks Inkjet, Screen printing inks, Flexo printing inks
Pigments and Dyes Pigment, Titanium dioxide
Paint and Coating Construction Paint, Road Marking Paint, Wood Paint, Varnish, Marine Paint, Dispersion Paint, Automotive Paint, Coil Coating, Top Coat, Clear Coat
Minerals Calcium carbonate, Pharmaceuticals, Cosmetics

Technical Data:

Effective grinding volume 0.3
Main motor power (ABB motor) 0.75kW
Grinding shaft rotary speed (Siemens AC drive) 0-1500r/min
Eestimated productivity lab use
Net weight 50kg
Dimensions(L*W*H) 640 x 410 x 485
