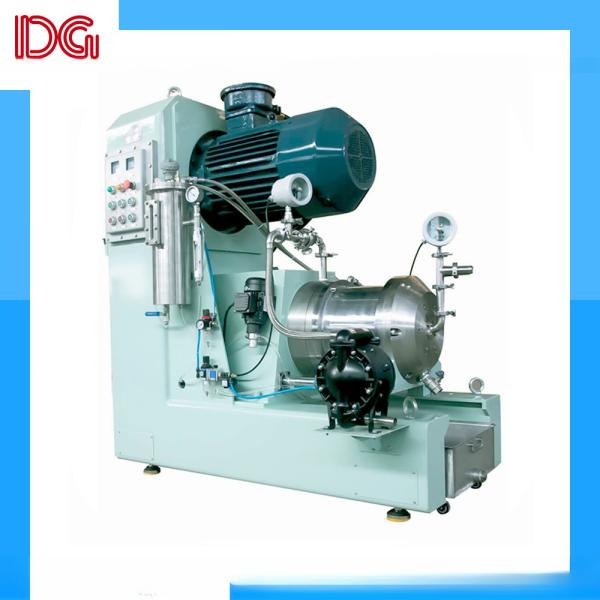

Turbo Type Nano Grinding Mill Machine Horizontal Bead Mill Machine
Turbo Type Nano Grinding Mill Machine Horizontal Bead Mill Machine
Specifications
Brand Name :
Degold
Model Number :
ZM20SB3310-T
Place of Origin :
Chongqing,China
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability :
Peak Season Lead Time: one month, Off Season Lead Time: one month
Batch size (L) :
20
Main motor power(kW) :
37-45
Weight (kg) :
1800
Description

Nano Grinding Mill Machine Price Turbo Type Horizontal Bead Mill

Description

  • Turbo accelerator makes zirconium beads high energy and homogeneous movement. It ensures high efficiency and energy input to reduce nanometer range for various viscosity materials.
  • High efficiency centrifugal separation system is good for separating the products and grinding medium.
  • Double mechanical seal.
  • Optional ceramic, cast steel, wear-resistant steel grinding chamber and grinding discs designs.

Technical Characteristics

  • High volume specific power density of 2 kW/dm3.
  • For large scale production (continuous-pass and circulation operations).
  • Narrow particle size distribution.
  • High efficiency separator system.
  • Smallest grinding medium size is 0.1mm.
  • Exchangeable inner grinding chamber according to abrasive-resistant and corrosion-resistant requirements.
  • Easy installation.
  • Applicable in wide viscosity range (from 20 mPas to 7000 mPas).
  • Low product temperature because of intensive cooling of grinding chamber and grinding shaft. (use rotor cooling).
  • Simple operation and process control.

Please refer to fllowing table technical data for more technical information or contact with us.Technical data are different if there are some customized constructions.
