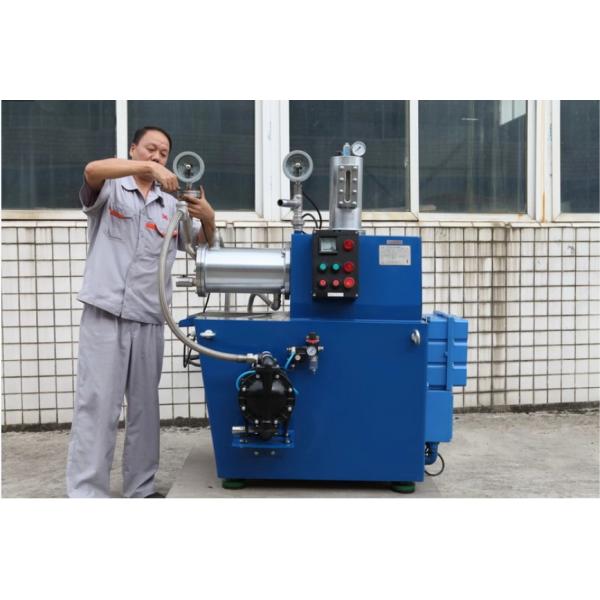

5L Disc-Type Bead Mill: Ideal Equipment for Small-Batch Production
5L Disc-Type Bead Mill: Ideal Equipment for Small-Batch Production
5L Disc-Type Bead Mill: Ideal Equipment for Small-Batch Production
5L Disc-Type Bead Mill: Ideal Equipment for Small-Batch Production
Specifications
Brand Name :
DEGOLD
Model Number :
ZM5SB3310-X
Certification :
CE
Place of Origin :
Chongqing China
MOQ :
1 SET
Price :
US $6,000.00-12,000.00
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 SET MOUTHS
Delivery Time :
5-8 work days
Packaging Details :
Non fumigation wood packaging
Grinding chamber volume :
5L
Main motor power :
7.5KW-11KW
Inner grinding chamber material :
9Cr18mov
Grinding discs material :
9cr18mov
Raw materials transfer pump :
Ingersoll Rand
Linear velocity :
11M-12M/S
Explosion-proof equipment :
Overall explosion-proof equipment
Description

The 5L disc-type bead mill is an ideal equipment for small-batch production, offering the following advantages:

  1. 1.Compact Design: The 5L bead mill features a compact design, making it suitable for small-scale production or laboratory research. It occupies minimal space and is easy to operate.
  2. 2.Efficient Grinding: This equipment utilizes a disc-type design, providing high-speed rotation and intense grinding action. It can rapidly and uniformly grind and disperse samples, achieving efficient grinding results.
  3. 3.Precise Control: The bead mill is equipped with adjustable process parameters such as grinding time, speed, and grinding media, allowing precise control of the grinding process to obtain the desired particle size and dispersion.
  4. 4.Versatile Applications: The 5L bead mill is suitable for various industries, including paints, inks, dyes, cosmetics, and food. It can be used for pigment grinding, sample preparation, and new product development, among other applications.
  5. 5.Reliability and Stability: The equipment is constructed using high-quality materials and advanced manufacturing processes, ensuring durability and stable operation over an extended period.

Bead mills are suitable for the following fields:

The paint and coating industry: used for grinding and dispersing pigments to obtain a uniform pigment suspension or pigment slurry.

Ink industry: used for grinding and dispersing pigments and fillers to prepare high-quality ink.

Dye industry: used for grinding and dispersing dyes to obtain delicate and uniform dye dispersions.

Food and Beverage Industry: Used for grinding, dispersing, and mixing food and beverage ingredients to improve product uniformity, texture, and taste.

Cosmetic industry: used for grinding and dispersing pigments, fillers, and active ingredients to prepare high-quality cosmetic products.

Pharmaceutical industry: used for grinding and dispersing pharmaceutical raw materials to obtain delicate and uniform drug dispersions or emulsions.

Mining and Mineral Industry: Used for grinding and refining ores, sands, and minerals to improve mineral availability and processing efficiency.

Biotechnology and pharmaceutical industry: used for applications such as cell fragmentation, protein extraction, and dispersion to support sample preparation and research in biotechnology and pharmaceutical processes.

In summary, ball mills play an important role in many fields, used for grinding, dispersing, and mixing pigments, dyes, fillers, drugs, and other granular materials to achieve improved product quality and increased production efficiency.

ZM-X Series Disc Type Bead Mill Technical Data Sheet:

Model ZM5-X ZM15-X ZM20-X ZM30-X ZM50-X ZM100-X ZM200-X
Effective grinding chamber volume (L) 5 15 20 30 50 100 200
Main motor power (kW) 7.5/11 18.5 22 30 37/45 45/55 55/75
Grinding shaft rotary speed (r/min) 1650 1200 1200 1120 900 700 550
Adjustable range of materials flow (L/min) 0~2 0~2 0~10 0~10 0~60 0~60 0~150
Max. cooling water consumption (t/h) 1 1 2 2 2.5 2.5 3~4
Estimated productivity (kg/h) 15~150 40~400 50~500 60~800 150~1500 150~1500 200~2000
Dimension (mm) Length 1250 1560 1670 1760 1970 2175 2150
Width 900 1050 1050 1050 1150 1200 1200
Height 1250 1550 1565 1585 1650 1880 2150
Net weight (kg) 700 800 1000 1150 1350 2000 2500


5L Disc-Type Bead Mill: Ideal Equipment for Small-Batch Production

5L Disc-Type Bead Mill: Ideal Equipment for Small-Batch Production

5L Disc-Type Bead Mill: Ideal Equipment for Small-Batch Production

What is the difference between a bead mill and a homogenizer?

A bead mill and a homogenizer are both equipment used for particle size reduction and sample preparation, but they operate on different principles and have distinct differences:

Bead Mill:

1.Grinding Principle: Bead mills utilize small grinding media, such as beads, to grind and disperse the material through high-energy collisions between the beads and the particles. The grinding action is achieved by the mechanical agitation and shearing forces generated by the movement of the beads.

2.Particle Size Range: Bead mills are capable of producing a wide range of particle sizes, from sub-micron to several microns, depending on the size of the beads used. They offer precise control over the particle size distribution.

3.Applications: Bead mills are commonly used in industries such as paints, inks, coatings, pharmaceuticals, and cosmetics for grinding, dispersion, and particle size reduction. They are particularly suitable for processes that require fine grinding and uniform particle size distribution.

Homogenizer:

1.Homogenization Principle: Homogenizers use mechanical force or high-pressure forces to break down and disperse particles in a sample. They often utilize high-speed rotor-stator action or high-pressure fluid shear to create turbulence and disrupt the sample's structure, resulting in particle size reduction and uniform mixing.

2.Particle Size Range: Homogenizers are typically used for reducing particle sizes to the sub-micron or nano-scale range. They are particularly effective in breaking down cell walls, emulsifying liquids, and achieving uniform dispersion of particles.

3.Applications: Homogenizers are widely used in various industries, including biotechnology, food and beverage, pharmaceuticals, and research laboratories. They are commonly employed for cell disruption, emulsion formation, sample preparation, and achieving uniform mixing or blending.

In summary, the main difference between a bead mill and a homogenizer lies in the grinding principle and the particle size range they can achieve. Bead mills primarily rely on grinding media to grind and disperse particles, offering a wide range of particle sizes. Homogenizers, on the other hand, utilize mechanical or high-pressure forces to break down particles, achieving sub-micron or nano-scale particle sizes and ensuring uniform mixing or dispersion. The choice between a bead mill and a homogenizer depends on the specific application requirements for particle size reduction and sample preparation.
