Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Specifications
Model NO. :
ZM50SB3320-X
After-Sales Service Provided :
Engineers Available to Service Machinery Overseas
Warranty :
12 Months
Transport Package :
Fumigation Wooden Box
Specification :
CE, ISO9001: 2008, SGS
Trademark :
DEGOLD
Origin :
Chongqing, China
HS Code :
8479820090
Supply Ability :
250sets/Year
Type :
Disc Grinder
Suitable Grinding Medium :
Zirconium/Zirconia/Zircon Beads
Function :
Wet Grinding for Particle Size Reduce
Applicable Industry :
Paint, Ink, Pigment, Agrochemical etc.
Object :
Milling Cutter
Application :
Chemical
Customization :
Available | Customized Request
Description
50L horizontal bead mill-Model (ZM50 Series)
50L bead mill/sand mill are the min. size we produce for the production scale. The effective grinindg chamber is 50 liters, then they suitable for large scale batches.
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
"ZM50SB3320-X Specification" specification.
1) 50L
2) Double mechanical seal
3) Ex proof
4) Mold steel for inner grinding chamber and grinding discs
5) Gear pump
6) Without AC drive
7) Dynamic gap separator
8) Chilling water jacket
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Option:
1) Single mechanical seal, double mechanical seal.
2) Ex proof or Non Ex proof.
3) SS304, hard alloy, mold steel, ceramic, PU etc. materials selection.
4) Double diaphragm fuild transfer pump, gear pump, screw pump.
5) AC drive or without AC drive.
6) Dynamic gap separator or static gap separator.
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Model Motor (kW) Grinding Container Volume (L) Production Capacity Weight (approx. ) Dimension (L× W× H)mm
ZM0.3 0.75 0.3 50 640× 410× 485
ZM1.4 2.2 1.4 5-50kg/h 500 655× 570× 885
ZM5 7.5 5 20-100 kg/h 700 1250× 900× 1250
ZM15 15 15 30-150 kg/h 800 1560× 1050× 1550
ZM20 18.5 20 50-200 kg/h 980 1600× 1050× 1550
ZM30 22 30 50-300 kg/h 1100 1860× 1100× 1550
ZM50 30 50 60-500 kg/h 1300 2100× 1150× 1650
ZM60 30 60 60-600 kg/h 1400 2100× 1150× 1650
ZM100 45 100 100-1000 kg/h 2000 2250× 1280× 1640
ZM200 55 200 150-1500 kg/h 2500 2250× 1280× 1735
ZM250 75 250 200-2000 kg/h 2700 2800× 1280× 1765
ATTN: Different constructions horizontal bead mills have different technical data. Please contact with seller to get the exact suitable model and technical data.

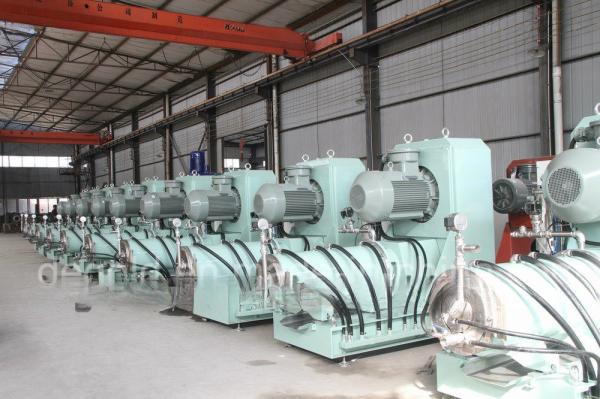

Production Line:
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
Exhibition:
Zircon/Zirconia/Zircon Beads Grinding 50L Horizontal Sand Mill with Customized Request
