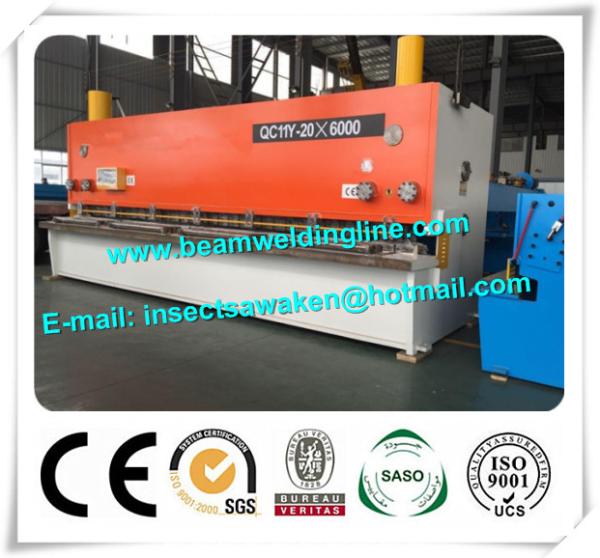

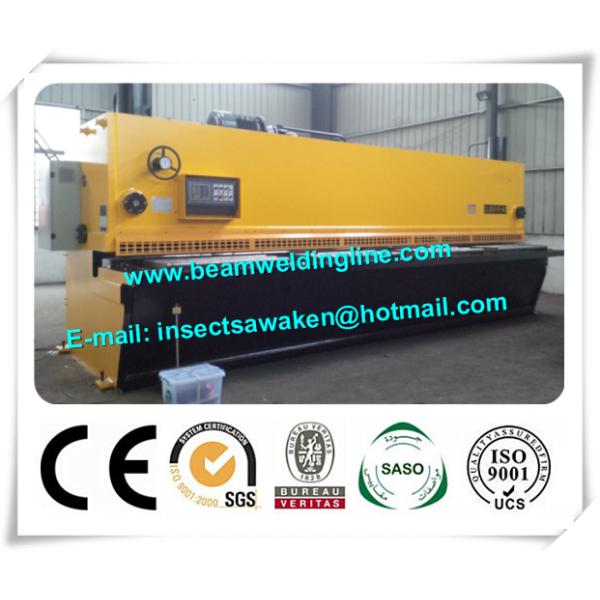

Steel Plate E21S NC Hydraulic Swing Beam Shear Hydraulic Guillotine Shearing Machine
Steel Plate E21S NC Hydraulic Swing Beam Shear Hydraulic Guillotine Shearing Machine
Steel Plate E21S NC Hydraulic Swing Beam Shear Hydraulic Guillotine Shearing Machine
Steel Plate E21S NC Hydraulic Swing Beam Shear Hydraulic Guillotine Shearing Machine
Specifications
Brand Name :
Friendship Machinery
Model Number :
FSM-PB
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Supply Ability :
30 sets per month
Delivery Time :
20 working days
Packaging Details :
wooden pallet
Model :
QC11Y-16×6000
The maximum shear thickness :
16mm
The maximum shear width :
6000mm
The sheared steel sheet strength :
450N/mm2
Shearing angle :
0.5-3°
The strokes :
7min-1
Description

1. Overview

● This device suit to shear various material by different need, main suit to shipbuilding, car made, steel made, switch appliance, contain made, machinery made and light manufacturing and so on. As the major support of shipbuilding and equipment made, and replacement of large hydraulic guillotine shearing machine in time, to suit new requirement, that is very important.

● The device use one-piece steel sheet welded structure, and use vibration age treatment to release internal stress, with good rigidity and stability.

● Hydraulic driven, accumulator return, working is stable, low noise. Through electric system and hydraulic system cooperate in harmony, to get the ideal shearing performance.

● The controller adopts EC21S.

2. Technical parameters

Model Unit QC11Y-16×6000
The maximum shear thickness mm 16
The maximum shear width mm 6000
The sheared steel sheet strength N/mm2 450
The shearing angle ° 0.5-3
The strokes min-1 7
The blade length mm 6060
The distance between uprights mm 6150
The backgauge range mm 20-800
The worktable height mm 1000
Main motor Power KW 37
Model / Y220L-4B5
Rotated speed Rpm 1440
Gear pump Model / NBT5G-63F
Flow ml/r 80.
Pressure Mpa 31.5
Net weight kg 29000
Overall dimension mm 6800×2500×3200
