Specifications
Brand Name :
Friendship Machinery
Model Number :
FSM-PB
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Supply Ability :
30 sets per month
Delivery Time :
20 working days
Packaging Details :
wooden pallet
Description

1. Applicable industry

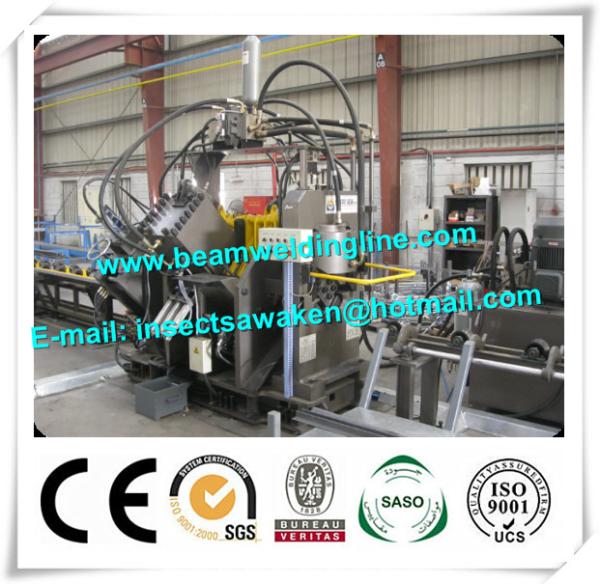

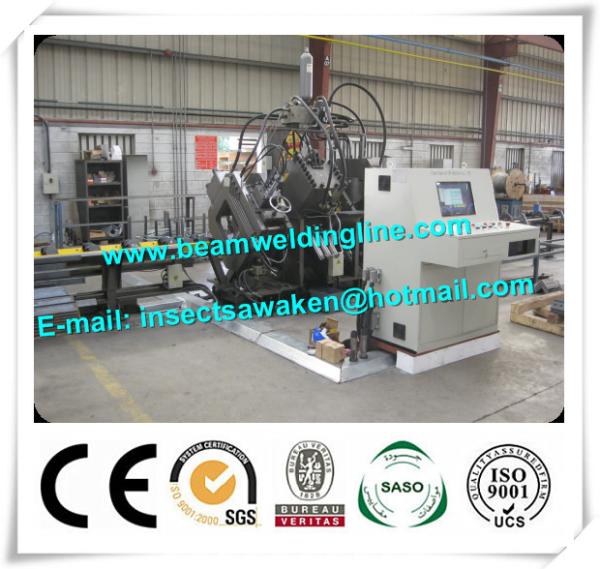

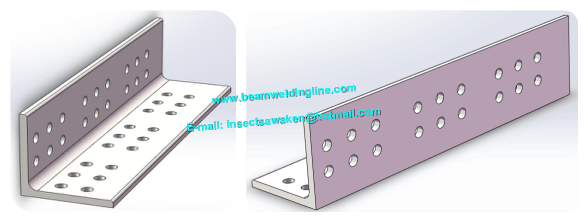

The machine is the special equipment used for angle steel punching, marking & shearing in the field of angle steel tower industry.

2. Specifications of TAPM1516

Model TAPM1516
Angle size (Q235) L40*40*3mm to L150*150*16mm
Maximum punching diameter * thickness Φ26*16
Punching force 1000KN
Marking force 800KN
Cutting force 1800KN
Maximum length of blank 12 or 14m
Maximum length of finished 10m
Punches per side 3
Group of marking letters 4
Stadia servo motor power 1.3KW * 2, YASKAWA
NC carriage motor power 4.4KW, YASKAWA
Motor power of infeed conveyor 2.2KW
Motor power of overturn rack 2.2KW
Motor power of hydraulic station 30KW
Dimension of letter 14*10*19 mm
CNC axes 3
Cutting mode Single blade cutting
Maximum feeding speed of angle 80m/min
Programming mode Lofting software or manual program
Overall dimensions ≈25000*7500*3000mm
Gross weight of machine ≈16500kg
