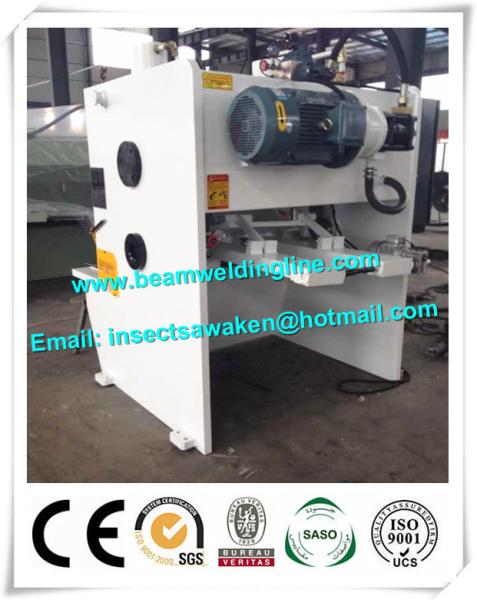

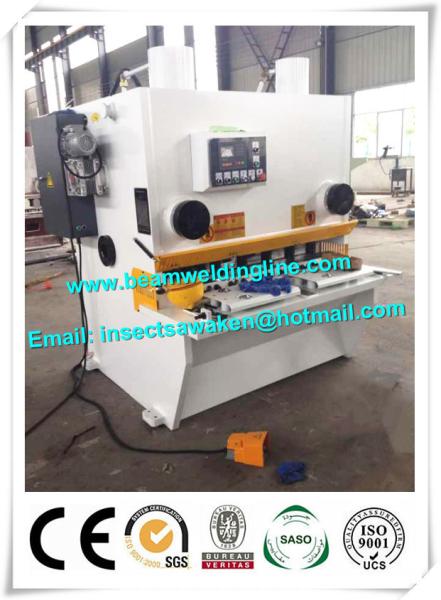

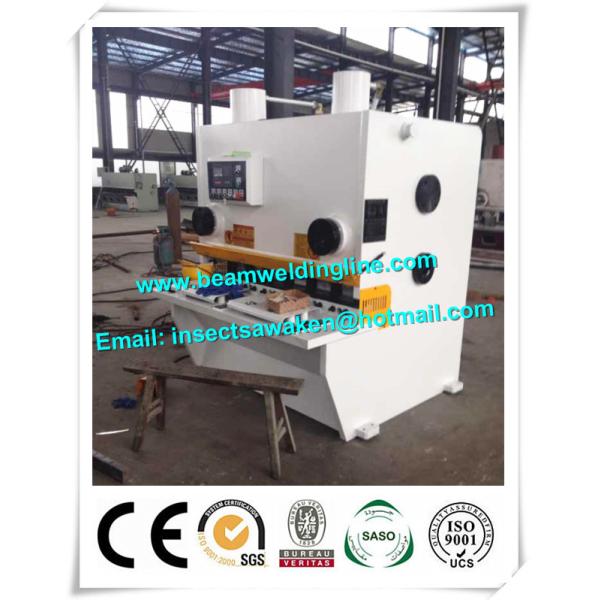

18.5KW CNC Hydraulic Shearing Machine For Steel Plate 2100 * 1850 * 2200mm
18.5KW CNC Hydraulic Shearing Machine For Steel Plate 2100 * 1850 * 2200mm
18.5KW CNC Hydraulic Shearing Machine For Steel Plate 2100 * 1850 * 2200mm
18.5KW CNC Hydraulic Shearing Machine For Steel Plate 2100 * 1850 * 2200mm
Specifications
Brand Name :
Friendship Machinery
Model Number :
QC11Y
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Supply Ability :
10 sets per month
Delivery Time :
30 working days
Packaging Details :
Standard export packing
Model :
QC11Y 12*1500
Control type :
NC
Driven method :
Hydraulic
Overall dimension :
2100*1850*2200mm
Net weight :
8000kg
Main motor power :
18.5KW
Description

18.5KW CNC Hydraulic Shearing Machine For Steel Plate 2100 * 1850 * 2200mm

1. Technical parameters

Model Unit QC11Y-12*1500
Controller / E21S
Maximum shear thickness mm 12
Maximum shear width mm 1500
Sheared steel sheet strength N/mm2 450
Shearing angle ° 0.5-2
Times of strokes per/mm 8-25
Blade length mm 1550
Back gauge range mm 20-600
Main motor power KW 18.5
Gear pump Model / CP1-40-P-10R
Flow ml/r 40.
Pressure Mpa 31.5
Net weight kg 8000
Overall dimension mm 2100*1850*2200

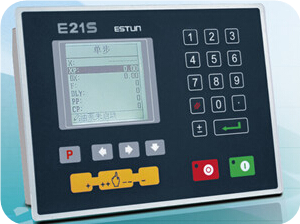

2. The main features of E21S numerical control device

● Positioning control of back gauge

● Intelligent positioning control

● One-side and two-side positioning which eliminates spindle clearance effectively

● Retract functions

● Automatic reference searching

● One-key parameter backup and restore

● Fast position indexing

● 40 programs storage space, each program has 25 steps

● Power-off protection

● FOB Price: USD11,000 (20’ GP container)

18.5KW CNC Hydraulic Shearing Machine For Steel Plate 2100 * 1850 * 2200mm

18.5KW CNC Hydraulic Shearing Machine For Steel Plate 2100 * 1850 * 2200mm
