Specifications
Brand Name :
Friendship Machinery
Model Number :
FSM Series
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
USD20000
Delivery Time :
30 working days
Description

Star Beam Automatic Assembly Machine Welding Line Powerful Motor

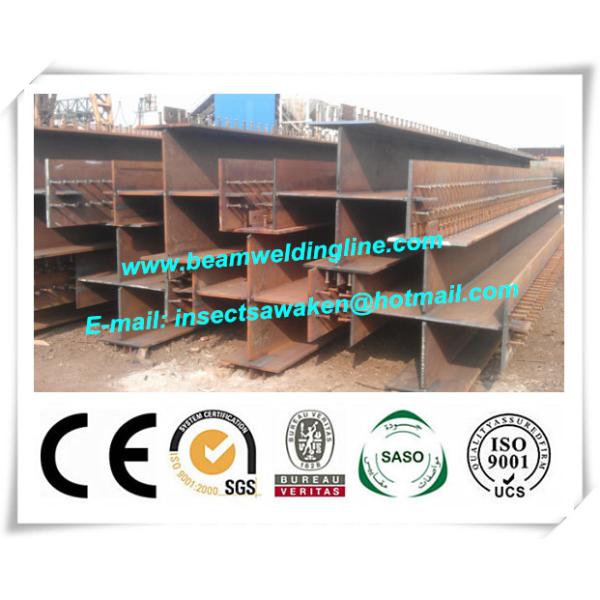

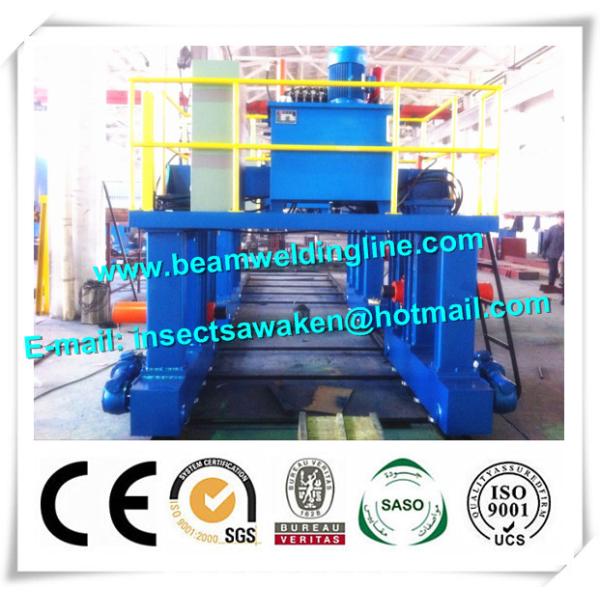

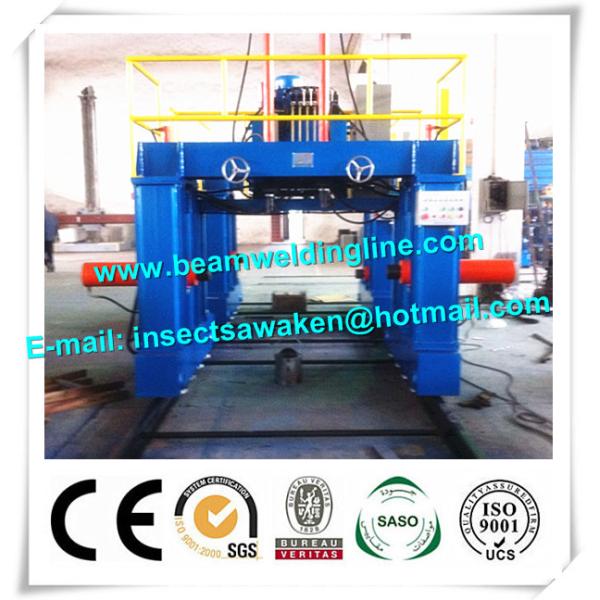

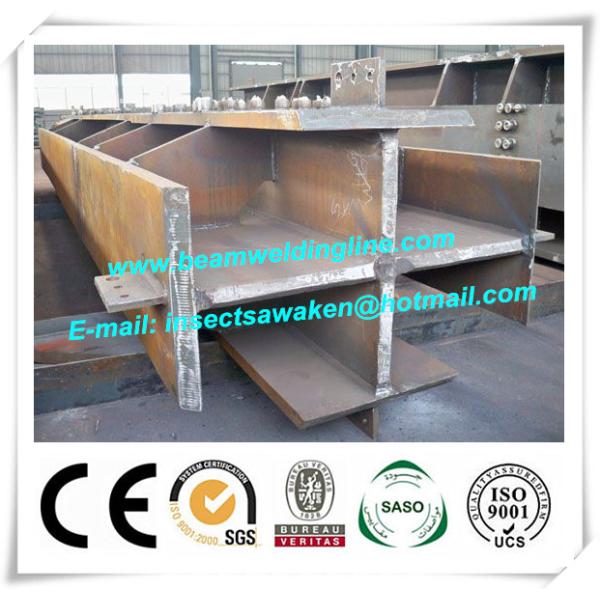

It is used to assembling the star beam (including 1 pc H beam and 2 pcs T beam), during the assembling process H beam will be fixed on the worktable, 2 pcs T beam at the both side will connect the web of main H beam, locking block (support the T beam) will be made in advance to fit the different heights, upper cylinders and side cylinders on the main framework will separately press the web of T beam and flange of T beam, and then worker can manual assembling.

Usually it needs two sets star beam assembling machine to work together, they will clamp and connect the T beam to H beam and then worker will manaul assmebling in the middle of two sets machine in order to get a finished star beam.

2. Technical parameter

● Star beam size: 200*200 to 1500*1500mm

● Thickness range: 6-50mm

● Star beam length: 3000-12000mm

● Framework moving speed: 0.4-4.0m/min

● Hydraulic system pressure: 14Mpa

● Left and right cylinder pressure: 30T

● Left and right cylinder stroke: 500mm

● Upper cylinder pressure: 2T

● Upper cylinder stroke: 600mm

● Moving motor: 1.5KW * 2

● Oil pump motor: 7.5KW
