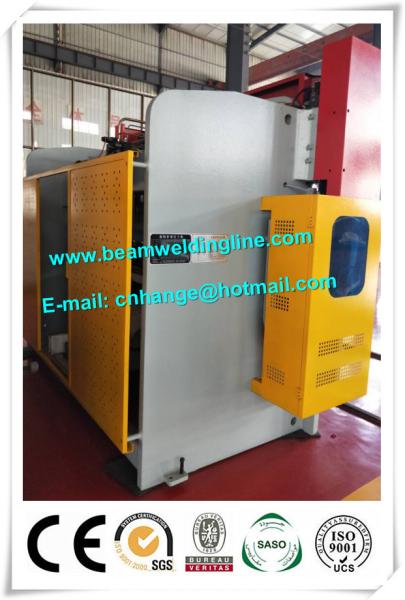

Hydraulic Press Brake Machine , WE67Y-125T/3200 CNC Press Brake Bending Machine
Hydraulic Press Brake Machine , WE67Y-125T/3200 CNC Press Brake Bending Machine
Hydraulic Press Brake Machine , WE67Y-125T/3200 CNC Press Brake Bending Machine
Hydraulic Press Brake Machine , WE67Y-125T/3200 CNC Press Brake Bending Machine
Hydraulic Press Brake Machine , WE67Y-125T/3200 CNC Press Brake Bending Machine
Hydraulic Press Brake Machine , WE67Y-125T/3200 CNC Press Brake Bending Machine
Specifications
Brand Name :
FRIENDSHIP MACHINERY
Model Number :
WE67Y
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
standard export package
Steel sheet material :
Q235A
COntroller :
DA66T
Steel sheet strength :
450N.M
Seals ring :
Valqua, Japan
Mold material :
T8
Electric components :
Schneider or Siemens
Description

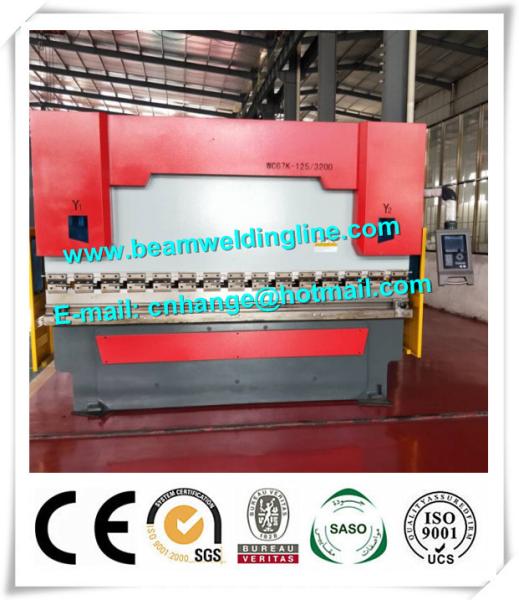

WE67K-125T/3200 DA66T Electro Hydraulic Servo Press Brake

1. The main character and use of the device

● This machine is widely used in light industry, aviation, shipbuilding, metallurgy, instrument, electrical appliances, stainless steel products, construction and decoration industry, especially suitable for urban construction, highway light pole, power pole, car girder work-piece processing and manufacturing, etc.

● This series hydraulic press brake machine, adopts steel weld structure; vibration aging to release stress, the device with good rigidity and stability; the whole frame with good rigidity, work is stable, safety and reliable, easy to operate.

● To adopts DA66T controller specialized used in CNC press brake machine from DELEM company, and adopts electro-hydraulic scale servo valve from BOSCH company, Germany, so the system work is stable, and with high make accuracy. On the system installed grating, electro-hydraulic scale valve, and electronic amplifier of valve to make a closed circle control system, thus inspect and control the relative location and synchronous accuracy between ram and worktable precisely, let the ram keep synchronous running, and assure the press brake depth and angle.

2. Technical parameters

Model Units WE67Y-125T/3200
Bended steel sheet strength N/mm2 450
Bended steel sheet thickness mm 6
Nominal pressure kN 1250
Worktable length mm 3200
Distance between uprights mm 2520
Throat depth mm 400
Ram stroke mm 120
Maximum opening height mm 385
Gear pump Model / CP0-25-P-10R
Flow L/min 25
Pressure MPa 31.5
Ram speed Unloaded mm/s 45
Work mm/s 6
Return mm/s 55
Working pressure of hydraulic system Mpa 26
Main motor power kW 7.5
Electrical system V/Hz 3P, 380V, 50HZ
Net weight kg 6600
Overall dimension mm 3300*1550*2450
