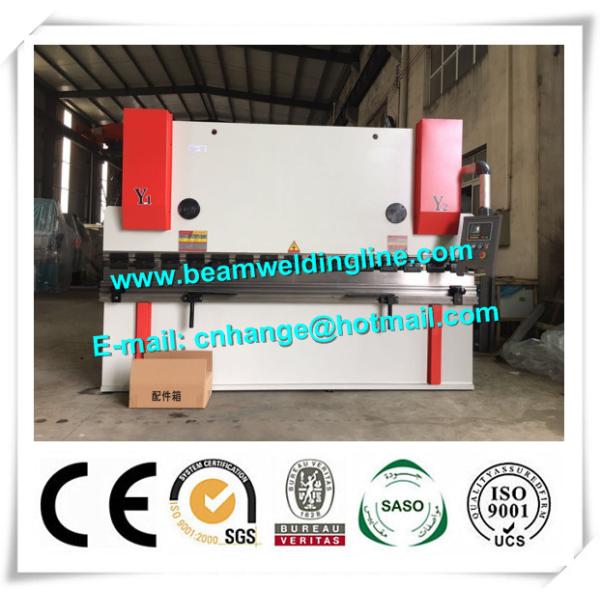

WC67Y Sheet Metal Press Brake , 80 Tons NC Press Brake For Steel Plate
WC67Y Sheet Metal Press Brake , 80 Tons NC Press Brake For Steel Plate
WC67Y Sheet Metal Press Brake , 80 Tons NC Press Brake For Steel Plate
WC67Y Sheet Metal Press Brake , 80 Tons NC Press Brake For Steel Plate
WC67Y Sheet Metal Press Brake , 80 Tons NC Press Brake For Steel Plate
WC67Y Sheet Metal Press Brake , 80 Tons NC Press Brake For Steel Plate
Specifications
Brand Name :
FRIENDSHIP MACHINERY
Model Number :
WC67Y
Certification :
CE, ISO
Place of Origin :
CHIA
MOQ :
1
Supply Ability :
5-10 sets per month
Delivery Time :
30 working days
Packaging Details :
Standard pakcing
NC system :
E21
Blade material :
T8
Main motor :
Jiangsu Hengli
Main electric components :
Siemens or Schneider
Seals :
VALQUA, Japan
Hydraulic pump :
HIGH-TECH
Description

WC67Y Sheet Metal Press Brake , 80 Tons NC Press Brake For Steel Plate

1. Technical parameters

Model Units WC67Y-125T/3200
Bended steel sheet strength N/mm2 450
Bended steel sheet thickness mm 6
Nominal pressure kN 1250
Worktable length mm 3200
Distance between uprights mm 2520
Throat depth mm 400
Ram stroke mm 120
Maximum opening height mm 385
Gear pump Model / CP0-25-P-10R
Flow L/min 25
Pressure MPa 31.5
Ram speed Unloaded mm/s 45
Work mm/s 6
Return mm/s 55
Working pressure of hydraulic system Mpa 26

2. Main component manufacturer

Component name Specification
Controller Model E21
Manufacturer Estun Automation Co., LTD
The punch and mold (standard) Material T8
Manufacturer Anhui Hualian Industry Machine Equipment Co., Ltd.
Base board and device body Material Q235A
Make art Welded construction, stress relieving treatment, CNC boring and milling machine processing
Main electric components Siemens/ Schneider
Main motor Type Y series
Manufacturer Jiangsu Hengli
Hydraulic pump Type Gear pump
Manufacturer Shanghai Hangfa
Valve Manufacturer HaiMen Xinli
Oil cylinder Cylinder and piston rod Forging, heat treatment HRC48-50
Seals VALQUA

3. Using environment

● The work voltage is 380V/ 50HZ/ 3P, the wave value ±10%.

● The environment temperature is 0℃-40℃, relative humidity: 20-80%, less ash, without harmful and corrosive gas, far away strong shock source and electromagnetic disturbance.

WC67Y Sheet Metal Press Brake , 80 Tons NC Press Brake For Steel Plate
