Specifications
Brand Name :
FRIENDSHIP MACHINERY
Model Number :
WJ SERIES
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
30-50 sets per month
Delivery Time :
20-30 working days
Packaging Details :
Standard Packing
Material :
Shanghai Bao Steel
Thickness :
1.5mm cold steel
Paint :
Epoxy Paint
Storage Capacity :
Single or double cylinders
Standard :
CE, ISO, OSHA
Lock :
Padlock
Description

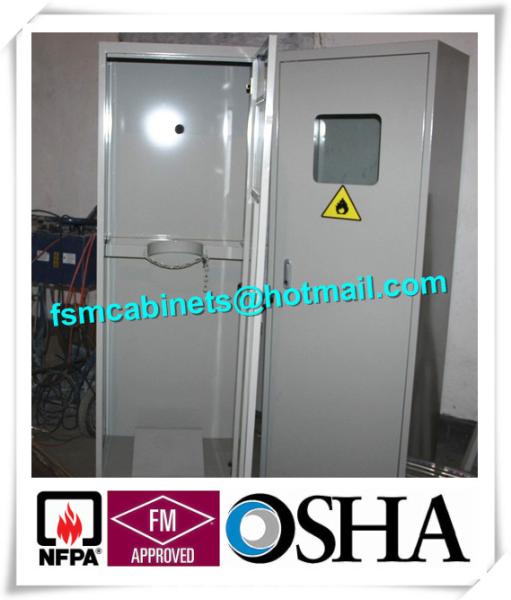

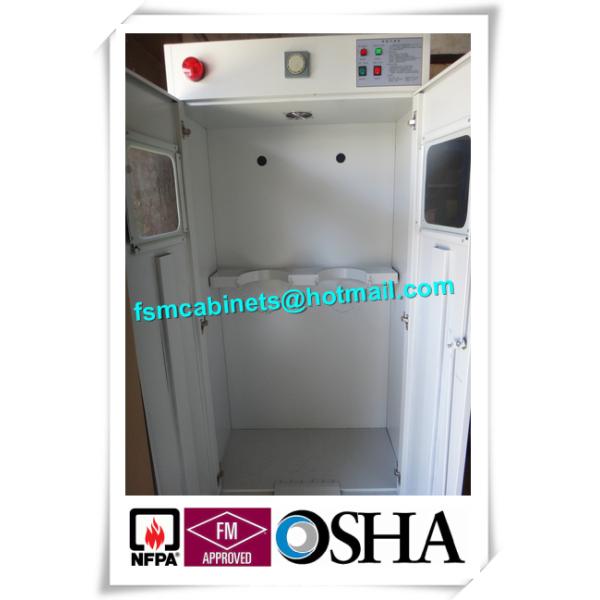

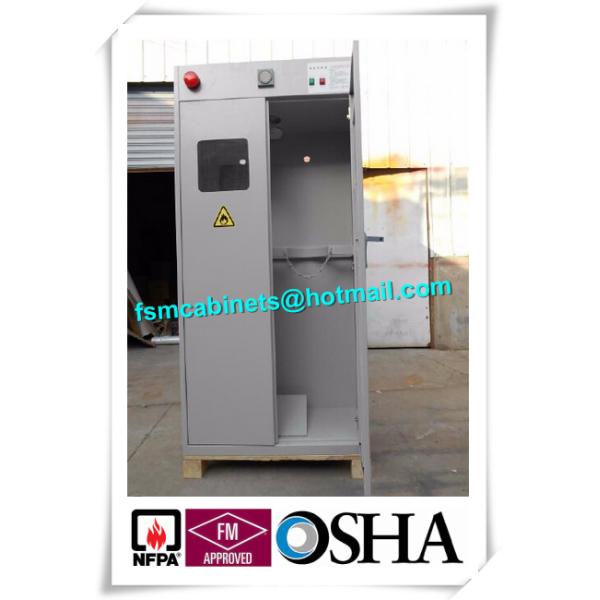

Gas cylinder storage cabinet is main product for storage of gas cylinder in the laboratory furniture.Its function is for protecting the inside gas cylinder from the outside fire ,and the surroundings from the internal fire.The entire body of cabinet is made of steel plates,nice seamless body,good load-bearing ability,easy to assemble and repair,and convenient to transport ,and outside shape design is more
elegant.


● Body: apply high quality cold rolled steel plates,treated with acid pickling and phosphating passivation, surface is coated by electrostatic spraying of epoxy powder to resist the acid, alkali and rusty.
● Door: removable linkage,with perspective window in the door.
● PASS hole: PASS hole on the both side of body,to ensure the fresh air flow inside.
● Fixed belt: with fixed belt to keep the gas cylinder stand.
● Fold down ramp: adjustable fold down ramp on the bottom,easy to load or unload the gas cylinder bottle in and out.(optional).
● Handle: flush-mounted high-strength handle.
● Alarm: alarm device can identify: combustible gas (such as methane, acetylene, gas, hydrogen, etc.), using special combustible gas detectors, air diffusion sampling, when the cut-off point to a concentration of chip set, will automatically alert.
● Automatic exhaust system: once the sensor detects the gas leakage and alerts,the exhaust fun on the top of cabinet will automatically works,and pump the gas outside the cabinet by though the pipe,to ensure the working zone workers secure.
● Special purpose alarm device is available according to the storage requirement, more safety and reliability.

Item Model Cylinder Dimension Note
Steel cylinder storage cabinets GNA-QCS-1 1 1800*600*450mm 1.0mm thick CR steel plate
GNA-QCS-2 2 1800*900*450mm
GNA-QCS-3 3 1800*1200*450mm
GNA-QCS-4 4 1800*1500*450mm
Steel cylinder storage cabinets GNA-SCS-1 1 1800*600*450mm
GNA-SCS-2 2 1800*900*450mm
GNA-SCS-3 3 1800*1200*450mm
GNA-SCS-4 4 1800*1500*450mm

Fire Resistance Gas Cylinder Storage Cabinet , Industrial Safety Cabinets For Cylinders

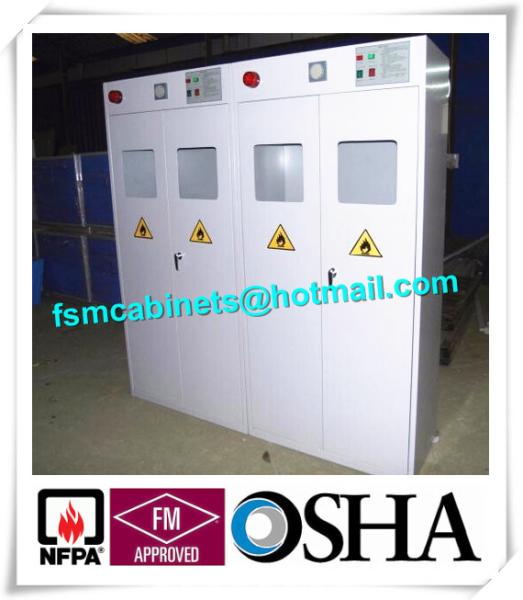

Double cylinder storage cabinet

Fire Resistance Gas Cylinder Storage Cabinet , Industrial Safety Cabinets For Cylinders
