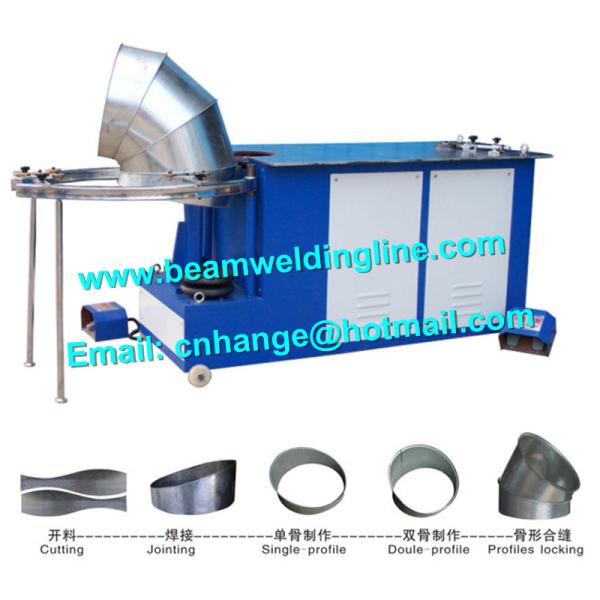

HVAC Duct Pipe Elbow Make Equipment Orbital Tube Welding Machine In Making Elbow
HVAC Duct Pipe Elbow Make Equipment Orbital Tube Welding Machine In Making Elbow
HVAC Duct Pipe Elbow Make Equipment Orbital Tube Welding Machine In Making Elbow
HVAC Duct Pipe Elbow Make Equipment Orbital Tube Welding Machine In Making Elbow
HVAC Duct Pipe Elbow Make Equipment Orbital Tube Welding Machine In Making Elbow
HVAC Duct Pipe Elbow Make Equipment Orbital Tube Welding Machine In Making Elbow
Specifications
Brand Name :
FRIENDSHIP MACHINERY
Model Number :
FSM-FG
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
100 sets per month
Delivery Time :
10 working days
Packaging Details :
Wooden box
Forming speed :
100-120m/min
Thickness :
1.5mm galvanized steel
Application :
HVAC duct, AC duct
Voltage :
380V 50HZ
Power :
7.5KW
Material :
Galvanized steel or Stainless steel
Description

Features

1. Dual working station
2. Maximum flexibility – eliminates equipment,s changing over and reduces tool,s changing.
3. Higher production speed
4. Up to 120 m per minute flanging speed
5.Higher capacity
6. Material thickness up to 1.5 mm Galvanised steel and 1.0 mm Stainless steel.
7. Improved seam,s quality
8. Optimised roller,s profile.
9. Virtually no maintenance
10. No lubrication necessary and all rotating parts are made of hardened, high grade steel.

Technical data

Electrical connection 380V 50 Hz,other connections on request
Total power 7.5 kw
forming speed 120m / per min.
Production time less than 90 seconds for a bend of 200 mm dia./900/4 segments by 1 Person
Diameter range 125-1250mm
Min.radius 1 times diameter,in relation to the centre line of the bend
Net weight 750 kg and 2550×870×930mm
Material Thickness in mm
from to
Black steel 0.4 1.5
Galvaniazed steel 0.4 1.5
Stainless steel 0.4 1.0
Aluminium 0.4 1.5

HVAC Duct Pipe Elbow Make Equipment Orbital Tube Welding Machine In Making Elbow
