Manual Positioned H Beam Welding Line , Marine T Bar Longitudinal Welding Machine
Manual Positioned H Beam Welding Line , Marine T Bar Longitudinal Welding Machine
Manual Positioned H Beam Welding Line , Marine T Bar Longitudinal Welding Machine
Manual Positioned H Beam Welding Line , Marine T Bar Longitudinal Welding Machine
Specifications
Brand Name :
Friendship Machinery
Model Number :
FSM Series
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Delivery Time :
30 working days
Packaging Details :
Standard export packing
Description

Manual Positioned H Beam Welding Line , Marine T Bar Longitudinal Welding Machine

Shipyard Production Lines


Friendship Machinery has since its involvement in shipbuilding developed production systems which substansially increase shipyard profitability and competitiveness through improved productivity, quality and increased capacity. Friendship Machinery offers complete production lines for welding and assembly of steel sections. All Friendship Machinery production lines utilise highly efficient integrated material handling systems in order to optimise the production processes. Friendship Machinery has supplied more than 200 production systems to a 100 shipyards in 30 countries.

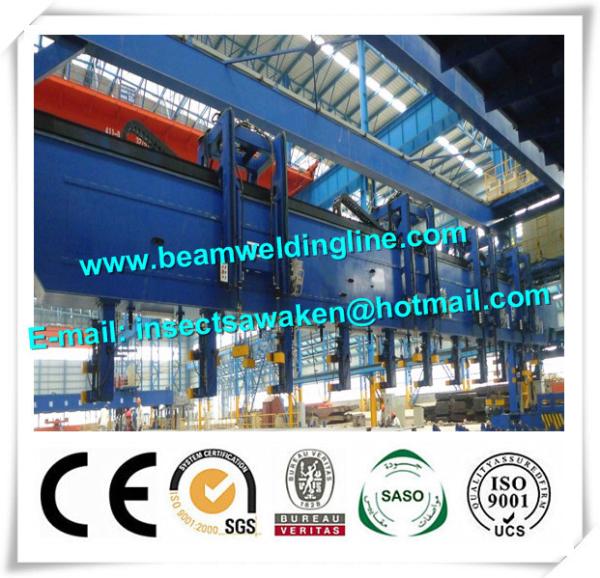

T panel longitudinal assembling machine (T bar longitudinal mounting machine) is composed of two drive devices, main door frame, T-bar lifting device, longitudinal clamping device and lifting device, main beam, moving trolley, left and right moving body, welding system and other components, mainly used for automatic assembly and positioned welding of longitudinal.

Bulb steel size

220*10-450*35mm

Angle steel

250*100*9-600*200*13.5mm

T-bar

300*10/ 100*17-850*11.5/ 300*25 mm

Distance between longitudinal

650-950 mm

Longitudinal length

4000-25000mm

Lifting power

≮4T

Angle adjust range

±5°

End adjust range

±150

Diagonal line adjust range

±50

Positioned welding method

Manual positioned welding

Manual Positioned H Beam Welding Line , Marine T Bar Longitudinal Welding Machine

Manual Positioned H Beam Welding Line , Marine T Bar Longitudinal Welding Machine

Structure showing for T panel fit up machine
