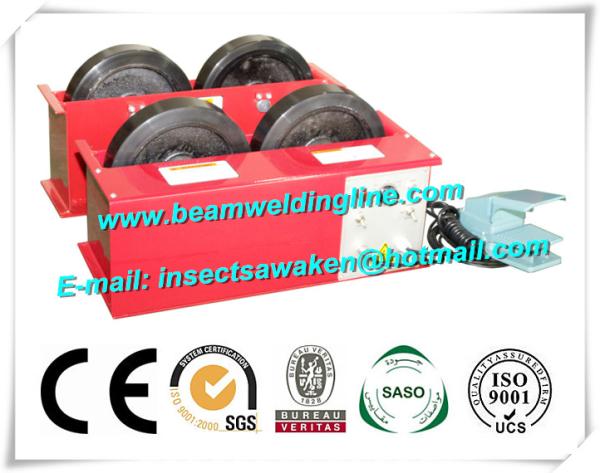

DC 100W Pipe Welding Rotator , elding Fit-up Beds Welding Turning Rolls
DC 100W Pipe Welding Rotator , elding Fit-up Beds Welding Turning Rolls
Specifications
Brand Name :
Friendship Machinery
Model Number :
FSM-CWR Series
Certification :
CE, ISO
Place of Origin :
CHINA
Packaging Details :
Steel framework and wire mesh
MOQ :
1 set
Supply Ability :
30 sets per month
Description

DC 100W Pipe Welding Rotator , elding Fit-up Beds Welding Turning Rolls

1. Simple introduction

Friendship Machinery rotators are a robust heavy duty design built to withstand the harsh

and rugged environments expected in the world of welding and fabrication requirements. Our

proven design uses 1 off 254mm diameter 76mm width replaceable hard-wearing polyurethane

types mounted onto a cast steel drum for maximum durability and superior traction.

The powered drive unit drives all wheels synchronized using the AC gear motors via the

latest inverter control. A hand held low voltage control pendant on a 3-metre cable provides the

operator with full control of the rotator including a potentiometer for varying the speed, forward/

reverse and stop.

All Friendship Machinery rotators are grit blasted to SA 2.5 for all structural steel and

polyurethane paintwork ensuring that your investment provides you with many years of reliable,

trouble-free use.

The idler roller has the same dimensions to match the powered drive unit. See drawing

attached.


2. Technical parameter


● Model: FSM-CWR-1
● Load capacity: 1T (1 power & 1 idler rotator)
● Rotation speed: 0 to 5580mm/min
● Vessel diameter: 115-500mm
● Incoming supply: 220V/ 1Phase/50HZ (specify input voltage when ordering)
● Inverter: DC 100W
● Control voltage: 24V low voltage control
● Weight: 50Kg power totator and 40Kg idler rotator
