Specifications
Brand Name :
Friendship Machinery
Model Number :
QH Series
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Delivery Time :
30 working days after down payment
Packaging Details :
Standard package
Description

Steel Trunking Roll Steel Silo Forming Machine Galvanized Cable Trays

1. Machine parts list

No.

Equipment name

Quantity

1

5T hydraulic uncoiler

1 set

2

Leveling device

1 set

3

Servo feeding device

1 set

4

Press machine

1 set

5

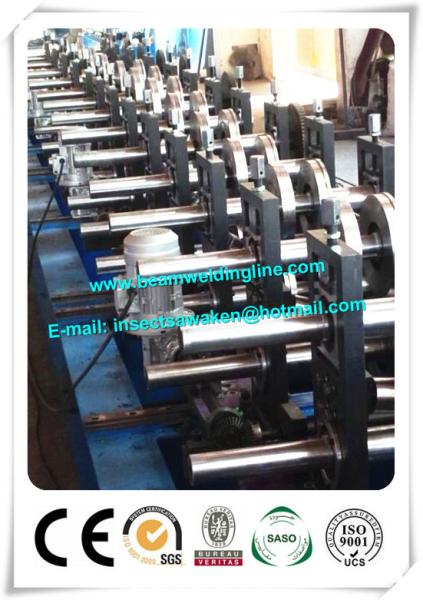

Main roll forming machine

1 set

6

Hydraulic station

1 set

7

Control system ( including control box)

1 set

8

Out tables

2 set

9

Spare parts

1 package

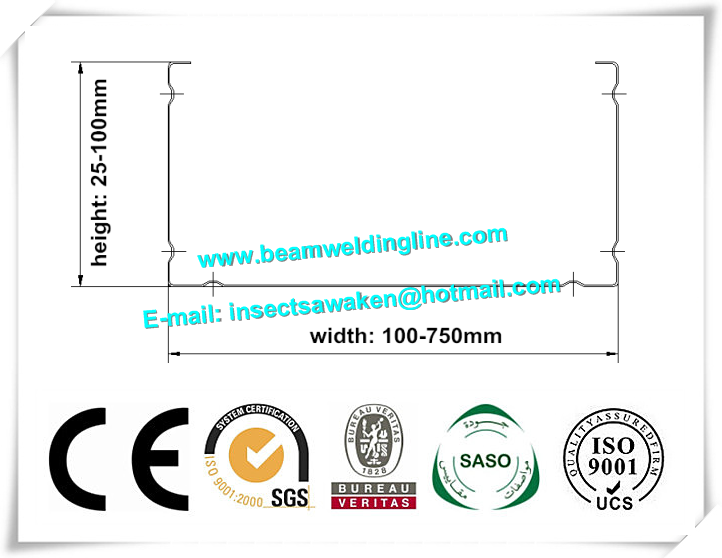

2. Profile drawing

Steel Trunking Roll Steel Silo Forming Machine Galvanized Cable Trays

3. Technique data


● Suitable plate material: thickness 1.5-2.0mm, galvanized steel or blank steel
● Working speed: 12-15 meters / min
● Forming steps: according to different profiles, changing by 5 sets cassettes
● Material of roller: Gcr15, quench HRC58-62 plated chrome
● Material of shaft: 45# advanced Steel (Diameter: *76mm), thermal refining
● Driven system: chain driven 1.5 inches 20A
● Main power with reducer: 15KW WH Chinese famous
● Cutting: hydraulic cutting Cr12mov
● Material of cutting Knife: Cr12Mov, quench HRC58-62
● Hydraulic station power: 11KW Wuxi Wanshen famous Chinese brand
● The whole machine is controlled by industry computer: PLC
● PLC: Panasonic, Japan
● Touch screen: Panasonic Japan
● Encoder: Omron, Japan
● Electric parts: Schneider

Steel Trunking Roll Steel Silo Forming Machine Galvanized Cable Trays
