Metal PU Sandwich Panel Production Line Steel Floor Decking Forming Machine
Metal PU Sandwich Panel Production Line Steel Floor Decking Forming Machine
Metal PU Sandwich Panel Production Line Steel Floor Decking Forming Machine
Metal PU Sandwich Panel Production Line Steel Floor Decking Forming Machine
Metal PU Sandwich Panel Production Line Steel Floor Decking Forming Machine
Metal PU Sandwich Panel Production Line Steel Floor Decking Forming Machine
Specifications
Brand Name :
Friendship Machinery
Model Number :
QH Series
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Delivery Time :
30 working days after down payment
Packaging Details :
Standard package
Description

Metal PU Sandwich Panel Production Line Steel Floor Decking Forming Machine

1. Components of line

Name

Model/Name

Q’ty

Technical description

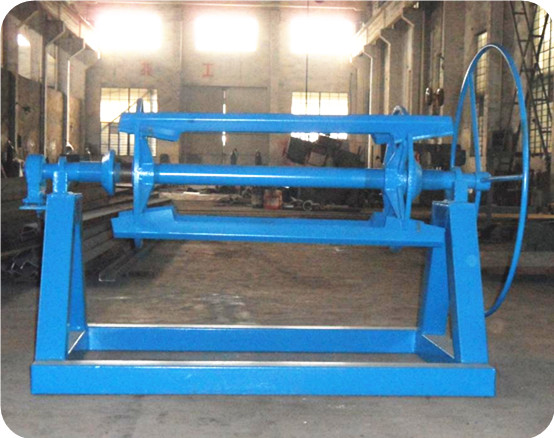

Decoiler system

5 T manual decoiler

1 set

Umbrella type, manual tensing,

bearing weight 5 tons

Main Forming system

Guiding device

1set

Roller 45 steel with treatment, designed by professional software, accuracy.

Torri assembling type, long life and better look.

Entire chain driven system to ensure the roller movement.

Cutting blade Cr12 with frequency

Roll forming system

1 set

Hydraulic cutting device

1set

Run out table

1.5M support table

Support the final production, roller design to make sure the panel without any scratch

Hydraulic system

1 set

Supply the power for cutting system

Electranic control system(PLC)

1 set

PLC control, fully automatically, cut to length.

Button operation, big touch screen.

AC frequency to adjust speed

2. Technical specifications

Decoiler

● Decoiler: umbrella type, passive feeding, manual tensing

● Bearing weight: 5Tons

Metal PU Sandwich Panel Production Line Steel Floor Decking Forming Machine

Main forming machine

● Suitable material: 0.8-1.2mm, yield strength≤G250Mpa

● Voltage: 220V, 60HZ, 3 phases

● Decoiler: passive feeding, manually tense

● Decoiler bearing: 5T

● Main motor power: 2X22KW=44KW

● Forming stations: 36 stands

● Main shaft diameter: φ85mm

● Hydraulic station motor power: 5.5KW

● Shear material: Cr12with quenching

● Coil width: 1250mm, Cut to length: 10m±2mm

● Roller material: NO.45 steel with hard chrome plating

● Forming speed: 12-15m/min

● Shear material: Cr12with quenching

● Profile measure up to Chinese GBT/12755-91 standard

● Hydraulic station oil pump, gear pump CB-E314

Metal PU Sandwich Panel Production Line Steel Floor Decking Forming Machine

PLC control system
● Computer adopt PLC control system, Mitsubishi FX-IS series
● Computer operating board: Xinjie OP320A
● Frequency: American Danfoss
● Function and operation: Control the starting, operation and stopping of the complete line, including distribution section, operation table, counting instrument. Use PLC to control, set and adjust the length. Both man-made and auto operations: on the man-made condition, each equipment can operated by switch; on the auto condition, only circulating stop and rapid stop switch.

Hydraulic system
● Motor power of hydraulic station: 5.5KW
● Function: apply power for cutting machine

Metal PU Sandwich Panel Production Line Steel Floor Decking Forming Machine

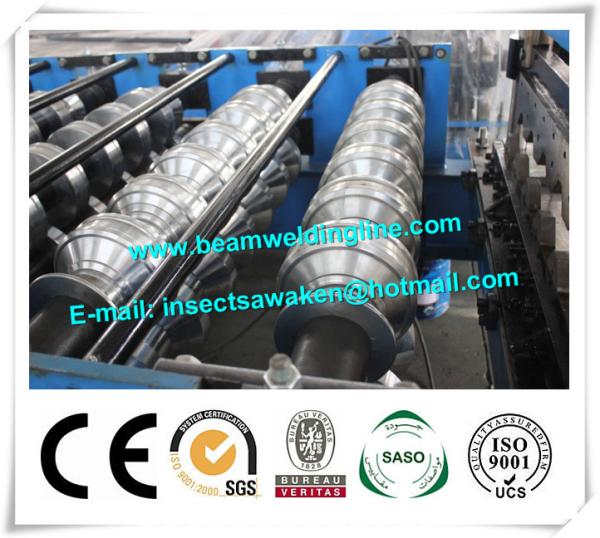

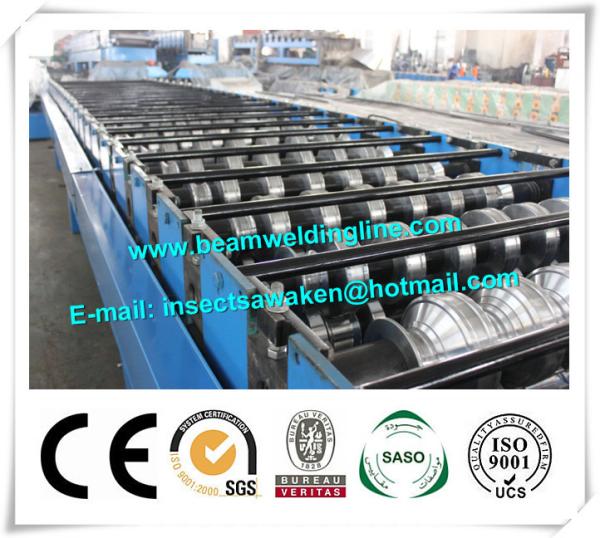

Floor Decking Roll Forming Machine

Steel coilInput area

 Metal PU Sandwich Panel Production Line Steel Floor Decking Forming Machine
