Steel Plate Butt Joint H Beam Welding Line FOr Ship Yard Welding
Steel Plate Butt Joint H Beam Welding Line FOr Ship Yard Welding
Steel Plate Butt Joint H Beam Welding Line FOr Ship Yard Welding
Steel Plate Butt Joint H Beam Welding Line FOr Ship Yard Welding
Steel Plate Butt Joint H Beam Welding Line FOr Ship Yard Welding
Steel Plate Butt Joint H Beam Welding Line FOr Ship Yard Welding
Specifications
Brand Name :
Friendship Machiney
Model Number :
FSM Series
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Delivery Time :
30 working days
Packaging Details :
Standard export packing
Description

Steel Plate Butt Joint H Beam Welding Line FOr Ship Yard Welding

1. Technical parameter


● Welding width: 6100mm
● Steel plate thickness: 6-14mm
● Material: carbon steel

Steel Plate Butt Joint H Beam Welding Line FOr Ship Yard Welding

2. Simple introduction

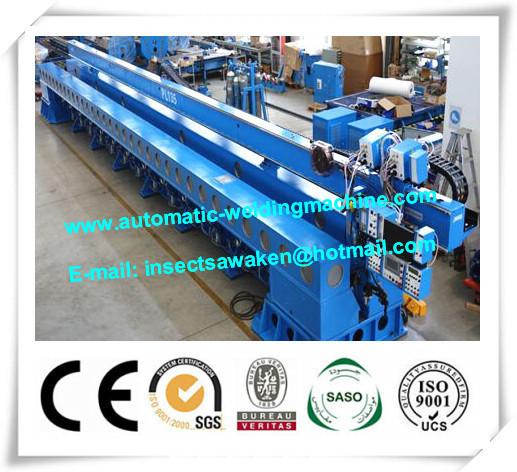

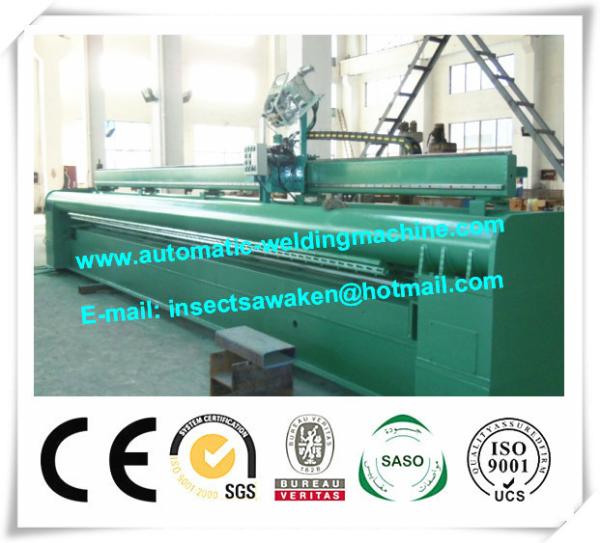

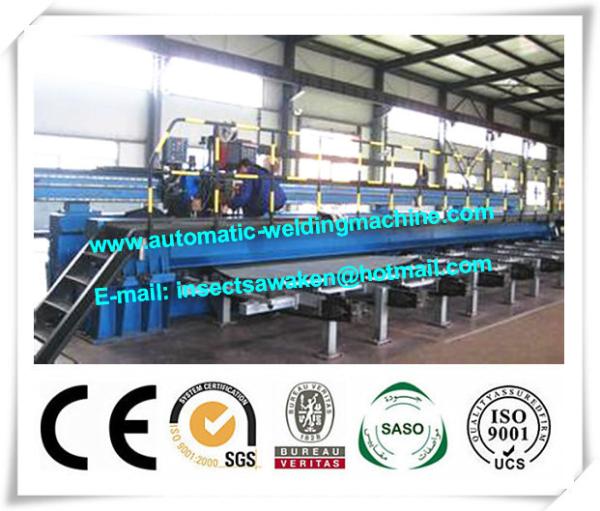

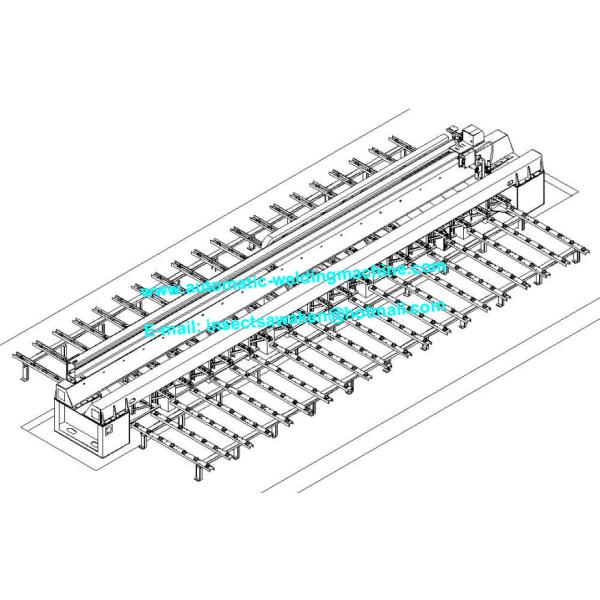

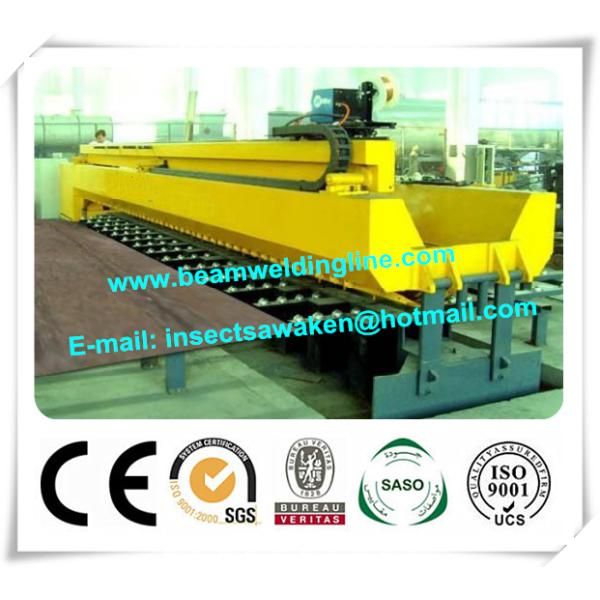

Steel butt welding machine includes main welding device and control system, they are connected by cable. Main welding device includes main framework, hydraulic type press and clamp device, copper backup block, welding cart, welding gun adjustment device, pneumatic centering device, work-piece conveyor, air circle system ect.

3. Key parts introduction

● Piano type clamping device

● Work-piece conveyor

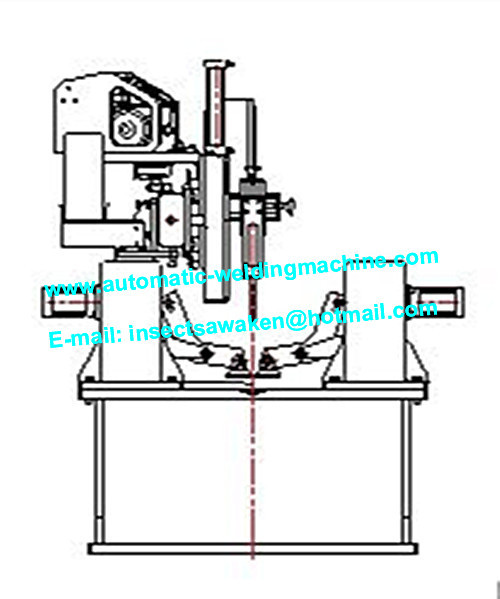

● Welding cart

● Backside molding groove

● Centering device

● Welding seam tracking system (monitor) - Option

4. Supply range

Name

Specification

Effective welding width

6100mm

Effective welding thickness

6-14mm

Work-piece material

Carbon steel

Welding method

MAG/ MIG

Welding seam tracking system

Option

Welding seam effect

One side welder two sides are sharped,

the height of welding seam on the reverse

side is less than 1.5mm, beveling in advance

Clamp method

Hydraulic cylinder clamp and press

Welding speed

50-500mm/min

Welder source

Miller

Molding groove material

Copper

Molding groove cooling method

Water cooling

Dry running speed

Step-less adjustable (0-4000mm/min)

Welding action adjust

Manual adjust

Welding gun cooling method

Water cooling

Voltage

AC380V 50HZ

Steel Plate Butt Joint H Beam Welding Line FOr Ship Yard Welding

Steel Plate Butt Joint H Beam Welding Line FOr Ship Yard Welding
