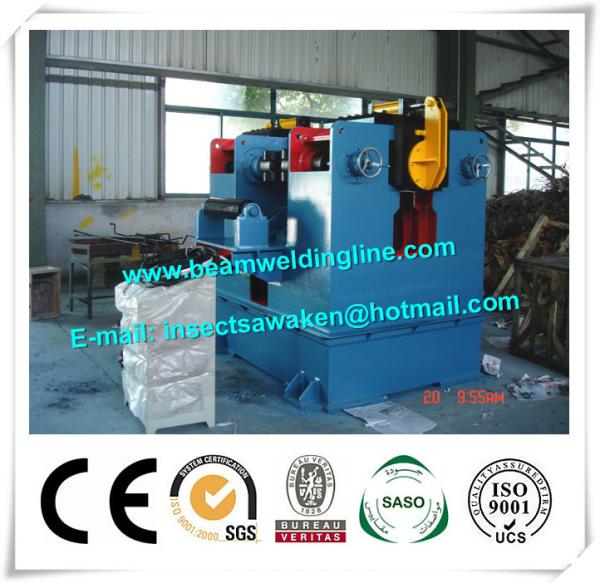

80mm Calibrate H Beam Production Line Hydraulic Flange Straightening Machine
80mm Calibrate H Beam Production Line Hydraulic Flange Straightening Machine
80mm Calibrate H Beam Production Line Hydraulic Flange Straightening Machine
80mm Calibrate H Beam Production Line Hydraulic Flange Straightening Machine
Specifications
Brand Name :
Friendship Machinery
Model Number :
HYJ-60 Series
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD33,000
Delivery Time :
30 working days after down payment
Packaging Details :
Standard package
Description

80mm Calibrate H Beam Production Line Hydraulic Flange Straightening Machine

1. Main introduction

Hydraulic flange straightening machine is used for the angle distortion straightening of the H-beam with large thickness. Hydraulic cylinder presses from down side to up side, which has strong force and high driving torque and with good straightening efficiency and good quality. This machine is widely used for the fire electric furnace, heavy duty steel structure construction, steel bridge, water power industry.

h-beam machine, h-beam steel, h-beam welding line, h-shape steel, h-beam production machine, h-beam production line, h-beam straightening machine, h-beam fabrication line, spot welding machine for h-beam, steel structure equipment, steel welding line, welding line, welding production line, steel welding production line, steel production line, I-beam production line.

2. Machine specifications

Type

HYJ-60

HYJ-80

Width of flange

180-800mm

600-1000mm

Thickness of flange

≤60mm

≤80mm

Minimum height of the web

350mm

500mm

Material

Q345A

Q235Mn

Straightening speed

6.37m/min

6m/min

Motor power

37kw

44kw

Overall dimension

3120×4100×2100mm

4700×25001×2400mm

Weight

25000kg

28000kg

80mm Calibrate H Beam Production Line Hydraulic Flange Straightening Machine

● Structure of mechanical flange straightening machine simple, with convenient and reliable operation which used for semi-automatic H-beam production line

● Hydraulic type straightening with strong straightening force and high automation which usually used for full automatic H-beam production line

● Straightening and powered roller: nice alloy steel, which are made after heat treating with long lifespan usage

● Hydraulic type straightening machine used for angle distortion straightening of H-beam with large thickness

● Hydraulic cylinder presses from down side to up side, which strong force and high driving torque and with nice straightening efficiency

 80mm Calibrate H Beam Production Line Hydraulic Flange Straightening Machine
