Specifications
Brand Name :
Friendship Machinery
Model Number :
MZ
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
25 working days
Packaging Details :
steel framework
Welder :
MZ1000 IGBT, SAW
H beam height :
200-1800mm
H beam width :
200-800mm
Flux system :
2 sets
Welding cable :
95m2 * 30m
Rail :
15m * 2
Description

H beam welding line - Gantry type welding machine

● Width of the flange: 200-800mm

● Thickness of the flange: 6-40mm

● Height of the web: 200-1800mm

● Thickness of the web: 6-32mm

● Length of the usable h beam: 4000-12000mm
● Welding speed: 240-1500mm/min
● Welding position: ship-type welding seam
● Size of the usable welding wire: 3.2-5mm

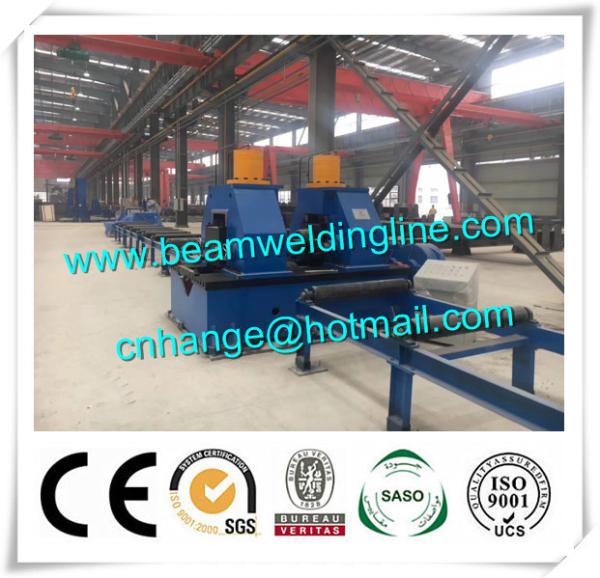

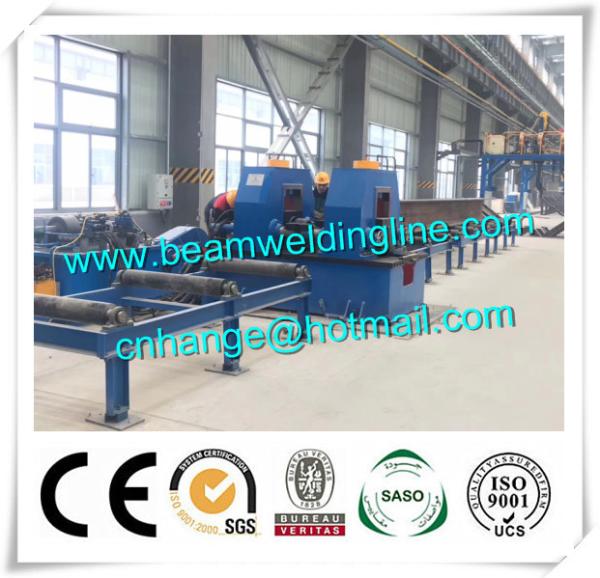

H beam welding line - Hydraulic straightening machine

● Materials: Q235/ Q345

● Width of the flange: 200-800mm

● Maximum thickness of the flange: 60mm for Q235 and 42mm for Q345

● Height of the web: ≥350mm

● Flange yield strength: ≤235MPa

● Relationship between the thickness and width (materials of the work-piece: Q235)

T 6-30 30-40 40-50 50-60
W 250-800 300-800 350-800 400-800

● Note: when web has a height within 160-350mm, and flange has a thickness of less than 16mm, use straightening small-roller.

● Driven motor: 15KW

● Hydraulic system pressure: 26Mpa

● Press-roller/ transmission shaft: 35CrMo

● Power: 20.5KW

Automatic H Beam Welding Line , H Beam Gantry Welding And Straightening Machine

Box beam welding line - box beam assembling machine

Automatic H Beam Welding Line , H Beam Gantry Welding And Straightening Machine

H beam welding line, H beam production line
