Specifications
Brand Name :
Friendship Machinery
Model Number :
FG
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
20 sete per month
Delivery Time :
30 working days
Packaging Details :
wooden pallet, standard export package
Production speed :
20m/min
Material :
Galvanized stee, Stainless steel, Aluminum
Thickness :
0.5-1.2mm
Application :
Air duct
Name :
Air duct production line
Voltage :
380V
Description

HVAC Air Pipe Production Line

Air Duct Wind Tower Production Line

Rectangle Air Duct Production Line

Duct manufacture auto line is designed for large volume workshops and is used to work with the coiled metal with weighting up to 6 tons, thickness up to 1,2 mm and minimal duct size 160x160 mm.

The machine provides high efficiency production of straights air-ducts. The production process can be managed by only one operator. The quantity and the parameters of the required products are inserted directly through the Touch Screen of the controller with a convenient and easy to manage interface.

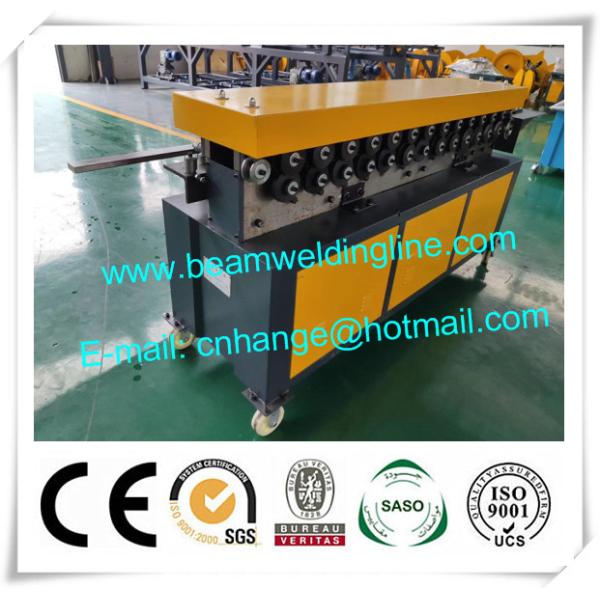

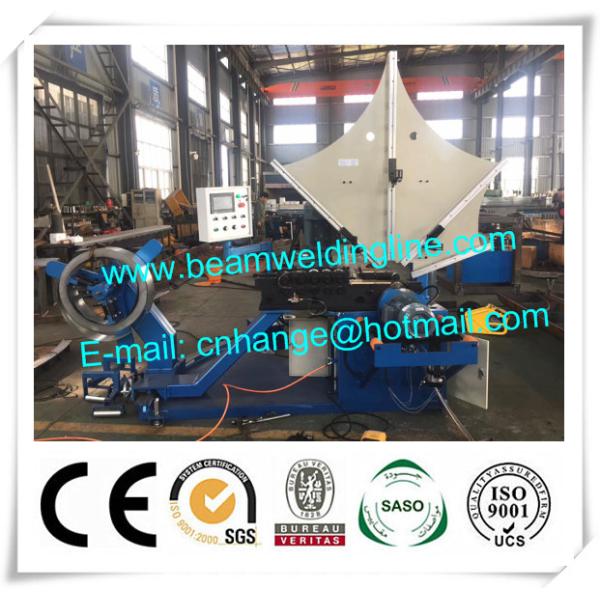

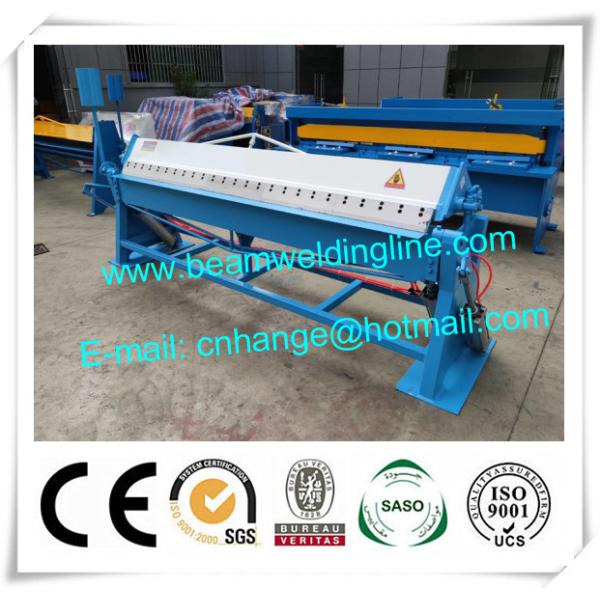

Duct manufacture auto line has a modular design which allows to use it in different configurations: feeding & straightening of the coiled metal, bending, punching, cutting-to-length, Pittsburgh forming, TDF flange, “C” flange, angle iron flange forming, duct folding and closing

Model No. Max Coil Width Thickness Range Speed Shearing Tolerance Diagonal Tolerance
PML3-1.2x1300 1300mm 0.4-1.2mm 0-18m/min ±0.5mm ±0.5mm
PML3-1.2x1600 1600mm 0.4-1.2mm 0-18m/min ±0.5mm ±0.5mm

HVAC Air Pipe Production Line , Air Duct Wind Tower Production Line

HVAC Air Pipe Production Line , Air Duct Wind Tower Production Line

HVAC Air Pipe Production Line , Air Duct Wind Tower Production Line
