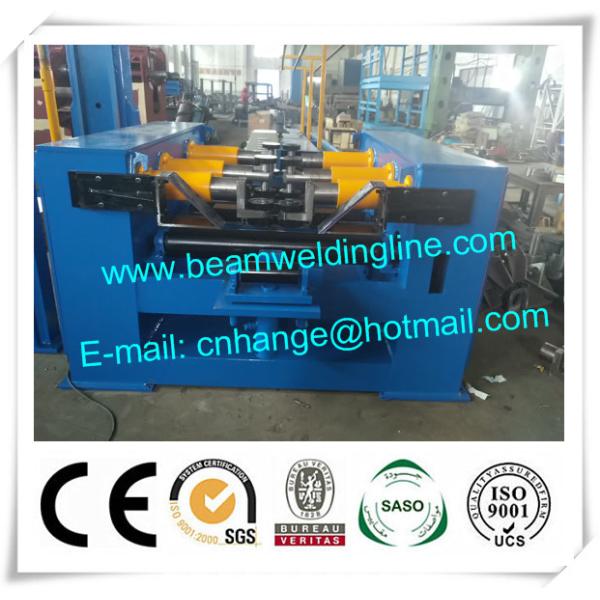

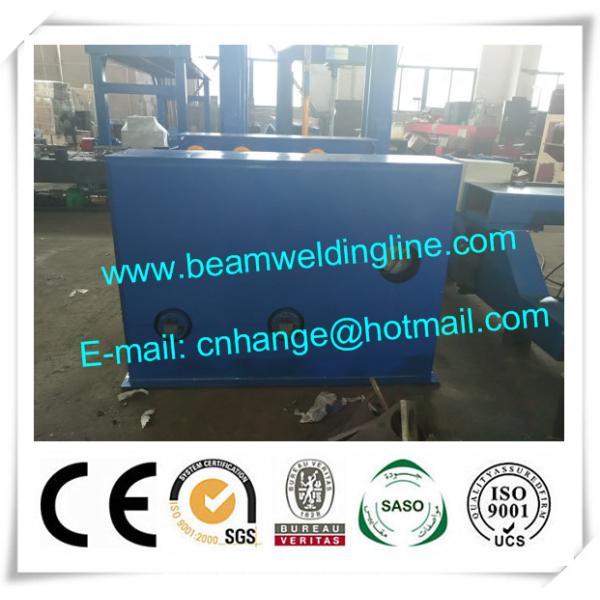

Light Steel Automatic H Beam Production Line , H Beam Combination Welding Machine
Light Steel Automatic H Beam Production Line , H Beam Combination Welding Machine
Light Steel Automatic H Beam Production Line , H Beam Combination Welding Machine
Light Steel Automatic H Beam Production Line , H Beam Combination Welding Machine
Light Steel Automatic H Beam Production Line , H Beam Combination Welding Machine
Light Steel Automatic H Beam Production Line , H Beam Combination Welding Machine
Specifications
Brand Name :
FRIENDSHIP MACHINERY
Model Number :
PHJ-1500
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
5 sets per month
Delivery Time :
25 working days
Packaging Details :
Wooden box, standard sea packing
H beam flange :
200-600mm
H beam web :
200-1500mm
H beam length :
12000mm
Machine name :
H beam welding line
Material :
Q235, Q345
Welder :
Chinese brand
Description

Light Steel Automatic H Beam Production Line ,H Beam Combination Welding Machine

H beam automatic assembling machine

● Height of the web: 200-1500mm

● Thickness of the web: 6-32mm

● Width of the flange: 200-800mm

● Thickness of the flange: 6-40mm

● Length of the h beam: 4000-12000mm

● Assembling speed: 500-1200mm/min

● KR-350 gas shielded welder: 2 sets

Gantry type welding machine

● Width of the flange: 200-800mm
● Thickness of the flange: 6-40mm
● Height of the web: 200-1800mm
● Thickness of the web: 6-32mm
● Length of the usable h beam: 4000-12000mm
● Welding speed: 240-1500mm/min
● Welding position: ship-type welding seam
● Size of the usable welding wire: 3.2-5mm

Straightening machine

● Width of the flange: 200-800mm

● Thickness of the flange: 6-40mm

● Minimum height of the web: 200mm (when web has a height within 200-350mm and flange has a thickness of less than 16mm, use straightening sub-roller)

● Power rate of the major motor: 25kw (main motor 22kw)

● Straightening speed: 13300mm/min

Light Steel Automatic H Beam Production Line , H Beam Combination Welding Machine

Light Steel Automatic H Beam Production Line , H Beam Combination Welding Machine
