Remote Controller Pipe Welding Rotator VFD Adjust Smaller Electromagnetic Vibration
Remote Controller Pipe Welding Rotator VFD Adjust Smaller Electromagnetic Vibration
Specifications
Brand Name :
Friendship Machinery
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Delivery Time :
30 sets per month
Packaging Details :
Steel framework and wire mesh
Wheel Working Linear Speed :
6-60 m/h
Frame center distance :
1400 mm
Control :
Remote Controller/Wireless Controller
Speed Adjust Way :
VFD Adjust
Description

High Efficiency Self Aligning Rotator Welding Stands Pipe Roller

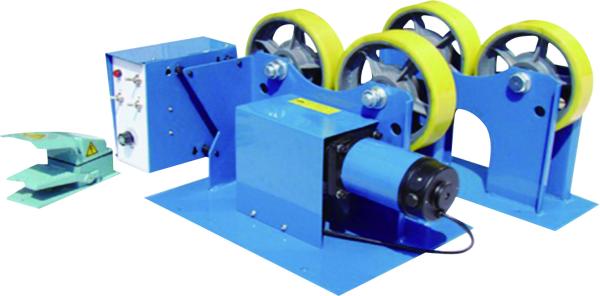

The turning roll is designed to aid the welding of tanks. By using independent drive and idler units, tanks of varying lengths can be placed on the turning rolls supported on the turning rolls wheels. The power welding rotator and the passive welding rotator can be moved on the track, and the distance between them can be adjusted to weld cylinders of different lengths. The wheels of self aligned welding rotator can be opened on the base frame to accommodate different vessel diameters. Our heavy duty, built to last self aligned welding rotators are designed and manufactured to tolerate the hardest, hard-wearing and unrelenting workload environments. The self-aligned welding rotator is driven by one AC variable frequency motor to drive two gear reducers to rotate at the same time. Compared with ordinary motors, variable frequency motor has lower noise and smaller electromagnetic vibration.

Capacity

(T)

Roller Diameter

(mm)

Roller Width

(mm)

Roller speed

(m/h)

Adaptation welding Rotator (mm)

 Speed control mode
2 180 100 6-60 220-1200 frequency speed control
5 200 130 6-60 250-2200
10 300 150 6-60 320-3500
20 300 200 6-60 450-3500
30 350 250 6-60 500-4500
50 400 300 6-60 500-4500
70 400 300 6-60 600-5000
100 500 300 6-60 700-5500
150 500 300 6-60 800-6000
200 600 300 6-60 800-6000
250 600 320 6-60 800-6000
300 800 320 6-60 1000-6500
350 800 350 6-60 1000-6500
400 800 350 6-60 1000-7000
450 800 350 6-60 1000-7000
550 800 350 6-60 1000-8000

Remote Controller Pipe Welding Rotator VFD Adjust Smaller Electromagnetic Vibration

Remote Controller Pipe Welding Rotator VFD Adjust Smaller Electromagnetic Vibration

Remote Controller Pipe Welding Rotator VFD Adjust Smaller Electromagnetic Vibration
