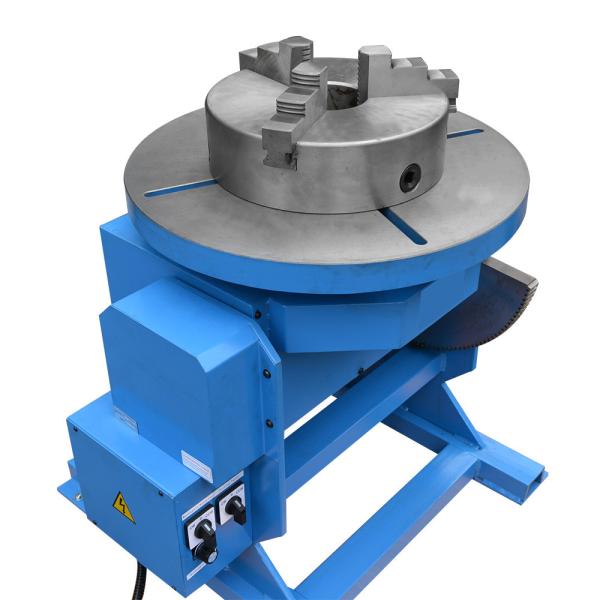

CE Automatic 5T Tilt Lift Benchtop Pipe Rotary Welding Positioner Turntable
CE Automatic 5T Tilt Lift Benchtop Pipe Rotary Welding Positioner Turntable
Specifications
Brand Name :
Friendship Machinery
Model Number :
FSM-LT Series
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
30 sets per month
Delivery Time :
25 Working days after down payment
Packaging Details :
Steel framework and wire mesh
Speed adjusting way :
Revote speed is VFD (COMMON BREAK MOTOR)
Rated loading (kg) :
5000
Tilt speed (rpm) :
≈0.2
Work-table diameter (mm) :
φ1600
Description

Tilt And Lift Welding Positioner , Floor Turning Table Tank Weld Positioner

1. Simple introduction

Friendship Machinery horizontal turntable model LT seires is fully tempered after welding before precision machining of 4 x parallel slots or concentric ring markings and pilot center hole. The base frame is constructed from heavy duty structural steel designed for rigidity and provides protection to the gearing system. The gearing system is located internally and offers unsurpassed safety to the operator. An AC motor controlled by the latest inverter control box provides infinitely variable speed control. The table is bolted to a heavy-duty thrust bearing, which can be lubricated externally via a lub-duct, thus providing ease of maintenance. Control is via a low voltage push button controller offering the following functions; control, forward/reverse, stop/start, variable speed potentiometer.

2. Technical parameter


● Model: FSM-LT-5
● Capacity: 5T
● Worktable diameter: 1200mm
● Rotation speed: 0.25-2.5rpm
● Power supply: 380V 3P 50HZ
● Control means: via push button pendant with 6m cable

3. Features


● 5T at 300mm at eccentricity
● Single pinion drive
● 1.5KW drive control system inverter type
● Rotary ground clamp, earth, 800amps
● Pendant control, push button type with 6m control leads
