1020mm/Min Pipe Welding Rotator , Welding Positioner Rotator 40T Capacity
1020mm/Min Pipe Welding Rotator , Welding Positioner Rotator 40T Capacity
Specifications
Brand Name :
Friendship Machinery
Model Number :
FSM-SWR Series
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 set
Supply Ability :
30 sets per month
Packaging Details :
Steel framework and wire mesh
Description

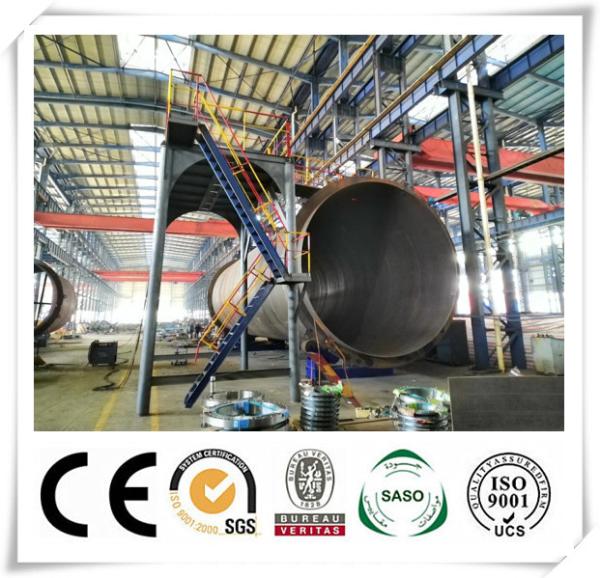

Self Aligned Pipe Welding Rotator Column Boom Pipe Welding Turning Roll For Tank

1. Simple introduction


Friendship Machinery self aligning rotators are robustly designed and built to withstand the harsh and rugged environments expected of such applications and permits rollers to align themselves to the work-piece without the need for manual pre-adjustment irrespective of vality or irregularity. It uses replaceable polyurethane types mounted onto a cast steel drum for durability and superior traction.

On the powered model both types are simultaneously driven by an AC gear motor fitted with inverter control box. A hand held low voltage control pendant on a 10-metre cable provides the operator with a full control of the rotator including a potentiometer for varying the speed, start/stop, forward/reverse and emergency stop.

Standard 3170mm base frame length can accommodate vessel diameters ranging from diameter 300mm to 6000mm. Grit blasting to SA 2.5 for all structural steel and polyurethane paintwork will ensure that your investment provides you with many years of uninterrupted use.

The idler roll has the same dimension to match the powered roller.


2. Technical parameter


● Model: FSM-SWR-40
● Load capacity: 40T (1 power & 1 idler rotator)
● Rotation speed: 102-1020mm/min
● Vessel diameter: 1000-5800mm
● Incoming supply: 380/ 400/ 415V, 3 Phase, 50HZ
● Roller driven control: AC 2.2KW Inverter
● Roller drive motor: 2 * 1.1KW AC motors
● Control means: via foot control pendant with 10m cable
● Weight: 4650kg
