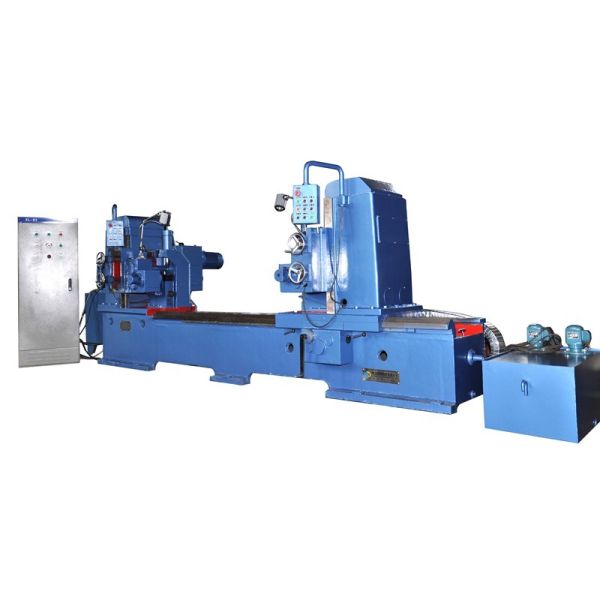

Conveyor Roller Slot Flat Double-end Automatic Milling Machine
Conveyor Roller Slot Flat Double-end Automatic Milling Machine
Specifications
Brand Name :
OEM/ODM
Model Number :
TX-2023
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
0.4 - 2.5 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
20 Days
Packaging Details :
Wooden case
Name :
Roller Slot Flat Double-end Automatic Milling Machine
Color :
Bule
Description

Conveyor Roller Slot Flat Double-end Automatic Milling Machine



Specification:


1. This product is an automated special equipment for processing the groove flats at both ends of the belt conveyor roller shaft, which is suitable for the current production and processing of roller shafts at home and abroad.

2. The machine adopts the domestic advanced superimposed valve hydraulic system to realize the fast forward and fast reverse of the main shaft box, and can be steplessly adjusted, with less auxiliary working hours and high work efficiency.

3. It can process the groove flats with and without shaft head, and the four processing surfaces at both ends can be processed at the same time.

4. With the programmable controller imported from Taiwan as the core, the advanced non-contact switch is used as the limit, and the program is controlled.

5. It has stable and reliable operation, high degree of automation, suitable for batch processing of roller shafts, and is an essential equipment for shaft flat processing in the conveyor industry.


Parameter:


Item

Parameter

Model

TX-2023

Workpiece center height

850mm

Processing roller shaft diameter

Ф20-Ф55mm

Processing roller shaft length

210-2300mm

Processing roller shaft length

6-35mm

Milling depth

0-5mm

Spindle motor

4kw×2

Hydraulic system working pressure

1.5-4Mpa

Machine weight

2500kg

Overall dimensions

4500×1500× 1540mm
