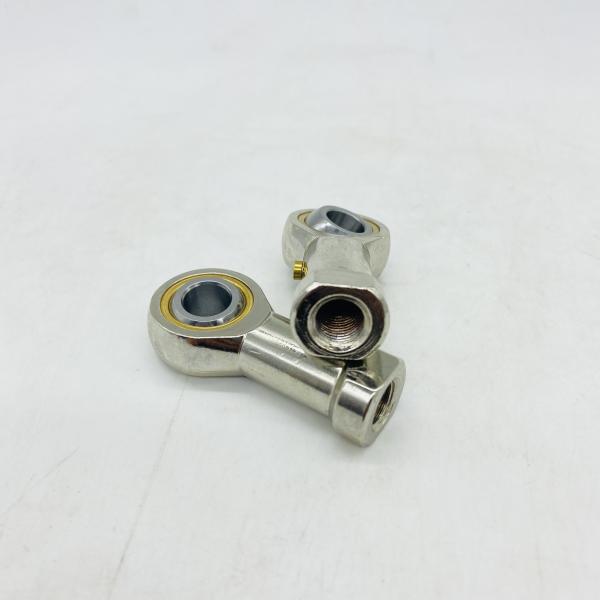

PHSB6L - JFZ Left Hand Lubrication Type Rod End With Female Thread
PHSB6L - JFZ Left Hand Lubrication Type Rod End With Female Thread
PHSB6L - JFZ Left Hand Lubrication Type Rod End With Female Thread
PHSB6L - JFZ Left Hand Lubrication Type Rod End With Female Thread
PHSB6L - JFZ Left Hand Lubrication Type Rod End With Female Thread
PHSB6L - JFZ Left Hand Lubrication Type Rod End With Female Thread
PHSB6L - JFZ Left Hand Lubrication Type Rod End With Female Thread
PHSB6L - JFZ Left Hand Lubrication Type Rod End With Female Thread
Specifications
Brand Name :
JFZ
Model Number :
PHSB6L
MOQ :
1
Price :
USD 0.5-10 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Bearing Type :
Ball Bearing
Brand :
JFZ
Compatible Lubricant :
Grease
Description

Female Rod End Left Hand PHSB6L Female Rod End PHSB6L, Left hand Works with 3/8" Shafts, they are marked PHSB6L with 3/8" inner diameter, the internal thread size is 3/8", Here is the interchange designation in every brand:

  • Item: PHSB6L Bearing
  • Type: Female Rod Ends
  • Thread Size: 3/8" UNF
  • Ball diameter: 23/32"
  • Quantity: One Bearing
  • Dynamic Load Rating: 9.4 KN
  • Static Load Rating: 10 KN Dimensions (Inches)a dBr1sC1d1d2d3 UNF 2Bh1L3L4L5d4d5S 3/8"1/2"0.5mm13/32"13.13mm1"3/8-241-5/8"15/16"2-1/8"1/4"9/16"11/16"9/16"9

Description

This PHSB6L bearing is a Left Hand Lubrication Type Rod End With Female Thread.

PHSB 6 L
Female Thread Size Left Hand Lubrication Type

Product Information

BRAND:
JFZ



SKU:
PHSB6L-IKO



AVAILABILITY:
IN STOCK



WEIGHT:
0.0590 KGS

Technical Data

INSIDE DIAMETER (INCH):
3/8 INCH



OUTSIDE DIAMETER (INCH):
1 INCH



WIDTH (INCH):
9/16 INCH



DYNAMIC LOAD RATING (KN):
9.23



STATIC LOAD RATING (KN):
21.6



THREAD SIZE:
0.3750-24UNF



BALL DIAMETER (INCH):
23/32 INCH

PHSB6L - JFZ Left Hand Lubrication Type Rod End With Female Thread

Product pictures

PHSB6L - JFZ Left Hand Lubrication Type Rod End With Female ThreadPHSB6L - JFZ Left Hand Lubrication Type Rod End With Female ThreadPHSB6L - JFZ Left Hand Lubrication Type Rod End With Female ThreadPHSB6L - JFZ Left Hand Lubrication Type Rod End With Female Thread

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
