SKF 361206 R Crowned Yoke Roller - Chrome Steel, 72 mm Roller Diameter, 30 mm Bore, 16 mm Roller Width, Sealed
SKF 361206 R Crowned Yoke Roller - Chrome Steel, 72 mm Roller Diameter, 30 mm Bore, 16 mm Roller Width, Sealed
SKF 361206 R Crowned Yoke Roller - Chrome Steel, 72 mm Roller Diameter, 30 mm Bore, 16 mm Roller Width, Sealed
SKF 361206 R Crowned Yoke Roller - Chrome Steel, 72 mm Roller Diameter, 30 mm Bore, 16 mm Roller Width, Sealed
SKF 361206 R Crowned Yoke Roller - Chrome Steel, 72 mm Roller Diameter, 30 mm Bore, 16 mm Roller Width, Sealed
SKF 361206 R Crowned Yoke Roller - Chrome Steel, 72 mm Roller Diameter, 30 mm Bore, 16 mm Roller Width, Sealed
SKF 361206 R Crowned Yoke Roller - Chrome Steel, 72 mm Roller Diameter, 30 mm Bore, 16 mm Roller Width, Sealed
SKF 361206 R Crowned Yoke Roller - Chrome Steel, 72 mm Roller Diameter, 30 mm Bore, 16 mm Roller Width, Sealed
Specifications
Brand Name :
SKF
Model Number :
361206 R
MOQ :
1
Price :
USD 0.5-10 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Bearing Type :
Crowned Yoke Roller
Material :
Chrome Steel
Description

Bearing Type : Crowned Yoke Roller

Brand :SKF

Bore Type : Cylindrical

Closure Type : Sealed

Internal Clearance : C3

Scope application : Industria and Construction Machinery

Inner Packing : Carton/wooden box, packaging with a woven belt

Outer Packing : Carton/wooden box

Stock : Great Supplying Ability

Supply a sample : Yes

DIMENSIONS

D
72 mm
 Outside diameter
d
30 mm
 Bore diameter
B
16 mm
 Width
d1
≈40.3 mm
 Shoulder/recess diameter inner ring
D1
≈54.1 mm
 Recess diameter outer ring
R
400 mm
 Profile running surface (crown) outer ring
r1,2
min.1 mm
 Chamfer dimension

CALCULATION DATA

C
17.4 kN
 Basic dynamic load rating
C0
9.5 kN
 Basic static load rating
Pu
0.4 kN
 Fatigue load limit
Fr
max.14.6 kN
 Maximum dynamic radial load
F0r
max.20.8 kN
 Maximum static radial load
5 300 r/min
 Limiting speed
f0
13.8
 Calculation factor

SKF 361206 R Crowned Yoke Roller - Chrome Steel, 72 mm Roller Diameter, 30 mm Bore, 16 mm Roller Width, Sealed

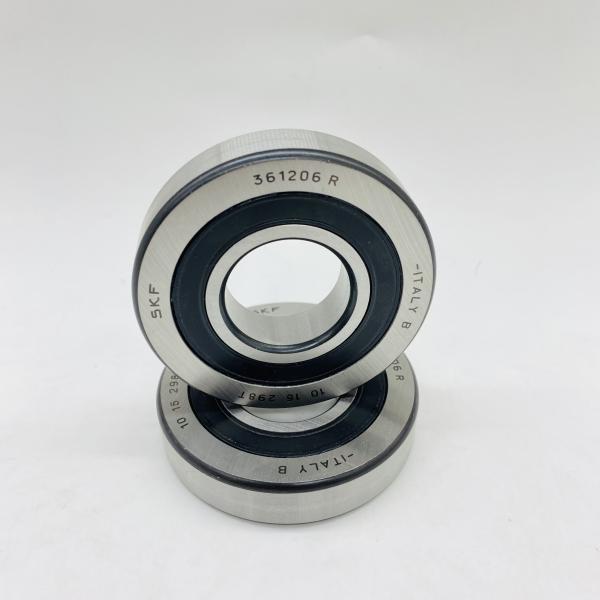

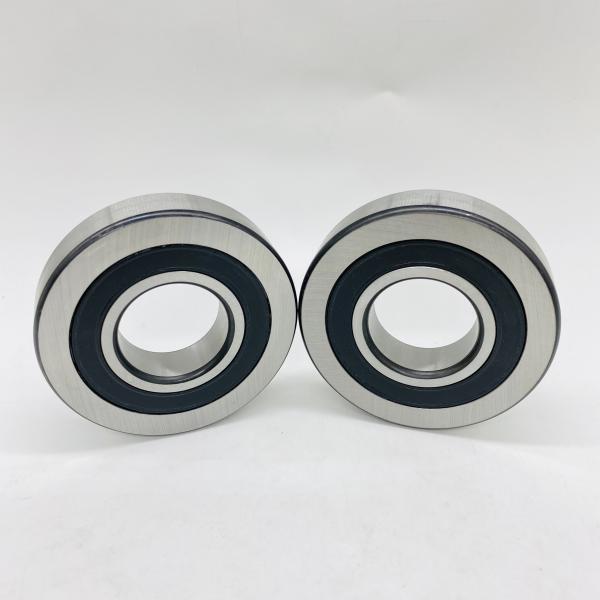

Product Picture

SKF 361206 R Crowned Yoke Roller - Chrome Steel, 72 mm Roller Diameter, 30 mm Bore, 16 mm Roller Width, SealedSKF 361206 R Crowned Yoke Roller - Chrome Steel, 72 mm Roller Diameter, 30 mm Bore, 16 mm Roller Width, SealedSKF 361206 R Crowned Yoke Roller - Chrome Steel, 72 mm Roller Diameter, 30 mm Bore, 16 mm Roller Width, SealedSKF 361206 R Crowned Yoke Roller - Chrome Steel, 72 mm Roller Diameter, 30 mm Bore, 16 mm Roller Width, Sealed

Recommended Model

GE40ES-2RS,GE45ES-2RS,GE50ES-2RS,GE60ES-2RS,GE70ES-2RS,GE80ES-2RS,GE90ES-2RS,GE100ES-2RS,GE110ES-2RS,GE120ES-2RS,GE140ES-2RS,GE160ES-2RS,XB-3,XB-4,XB-5

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
