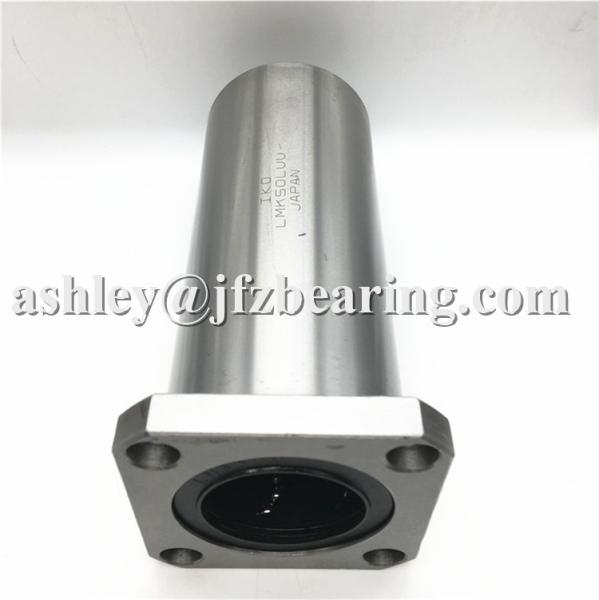

Rectangular Flanged Linear Bushing - Long Type, LMK-L Shape (IKO) (LMK40LUU LMK50LUU LMK60LUU for industrial machinery)
Rectangular Flanged Linear Bushing - Long Type, LMK-L Shape (IKO) (LMK40LUU LMK50LUU LMK60LUU for industrial machinery)
Rectangular Flanged Linear Bushing - Long Type, LMK-L Shape (IKO) (LMK40LUU LMK50LUU LMK60LUU for industrial machinery)
Rectangular Flanged Linear Bushing - Long Type, LMK-L Shape (IKO) (LMK40LUU LMK50LUU LMK60LUU for industrial machinery)
Rectangular Flanged Linear Bushing - Long Type, LMK-L Shape (IKO) (LMK40LUU LMK50LUU LMK60LUU for industrial machinery)
Rectangular Flanged Linear Bushing - Long Type, LMK-L Shape (IKO) (LMK40LUU LMK50LUU LMK60LUU for industrial machinery)
Rectangular Flanged Linear Bushing - Long Type, LMK-L Shape (IKO) (LMK40LUU LMK50LUU LMK60LUU for industrial machinery)
Rectangular Flanged Linear Bushing - Long Type, LMK-L Shape (IKO) (LMK40LUU LMK50LUU LMK60LUU for industrial machinery)
Specifications
Brand Name :
IKO
Model Number :
LMK40LUU
MOQ :
1
Price :
USD 0.5-10 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Description

Configured Specifications

TYPE Flange Motion Linear Motion
Style Standard Form Outer Cylinder Material [Steel] Bearing Steel
Outer Cylinder Surface Finish [None] No Surface Treatment For Shaft Diameter(mm) 40
Overall Length L(mm) 154 Flange Type Standard Flange
Lubrication Type Anti-Rust Only (customer needs to add own Grease) O.D. D(mm) 60
Type Flanged End Face Length Long
Ball Recirculating Type [Double] Double Basic Dynamic Load Rating (Details)(N) 3430
Basic Static Load Rating(N) 8040 Precision High Grade
Inscribed Bore Diameter Tolerance(mm) 0/-0.015 Eccentricity(µm) 25
Flange Shape Square type The material of a ball Steel
Seal Option UU: Seal attached on both ends Retainer Material Resin
Operating Temperature Min(°C) -15 Operating Temperature Max(°C) 80
RoHS 10 - -

Basic Information

TYPE Flange Motion Linear Motion Style Standard Form
Outer Cylinder Material Bearing Steel Outer Cylinder Surface Finish No Surface Treatment Flange Type Standard Flange
Lubrication Type Anti-Rust Only (customer needs to add own Grease) Type Flanged End Face Length Long
Ball Recirculating Type Double Precision High Grade Flange Shape Square type
The material of a ball Steel Retainer Material Resin

Rectangular Flanged Linear Bushing - Long Type, LMK-L Shape (IKO) (LMK40LUU LMK50LUU LMK60LUU for industrial machinery)

Rectangular Flanged Linear Bushing - Long Type, LMK-L Shape (IKO) (LMK40LUU LMK50LUU LMK60LUU for industrial machinery)

Additional Products in this Category

  • Product Picture

Rectangular Flanged Linear Bushing - Long Type, LMK-L Shape (IKO) (LMK40LUU LMK50LUU LMK60LUU for industrial machinery)Rectangular Flanged Linear Bushing - Long Type, LMK-L Shape (IKO) (LMK40LUU LMK50LUU LMK60LUU for industrial machinery)Rectangular Flanged Linear Bushing - Long Type, LMK-L Shape (IKO) (LMK40LUU LMK50LUU LMK60LUU for industrial machinery)Rectangular Flanged Linear Bushing - Long Type, LMK-L Shape (IKO) (LMK40LUU LMK50LUU LMK60LUU for industrial machinery)

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
