Specifications
Brand Name :
THK
Model Number :
CF8UU
MOQ :
1
Price :
USD 0.5-10 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Description

Configured Specifications

Category Cam Followers Roller Type Cylindrical Outer Ring
Outer Diameter D(Ø) 19 Outer Ring Width C(mm) 11
Thread(mm) M8×1.25 Fastening Methods Hex Socket on Head Side Only
Material Carbon Steel Roller Lining No
Cam Follower Type Standard Stud With Stud
Unit Metric System Roller Guiding Method With Cage
Basic Dynamic Load Rating(kN) 4.17 Basic Static Load Rating(kN) 4.65
Allowable Rotational Speed(rpm) 14000 Sealing Structure UU: With Seal
Track Load Capacity(kN) 4.02 Dedicated Grease Fitting Included No
Max. Allowable Load(kN) 4.73 RoHS 10

Basic Information

Category Cam Followers Fastening Methods Hex Socket on Head Side Only Roller Lining No
Cam Follower Type Standard Stud With Stud Unit Metric System
Dedicated Grease Fitting Included No

Product Properties

  • Seal2L - LS-seal at Both Sides
  • ExcenterringOther Mounting Method
  • Running SurfaceCylindrical

Suffix description

  • UULip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30℃/+100℃. If Letter R Is In The Suffix, Than The Cam Follower Is With Crowned Outer Ring, Otherwise It's A Cylindrical Running Surface (X)

THK Cam Follower Cf-a CF8UU Cf8uu-a 450316 Shipsameday

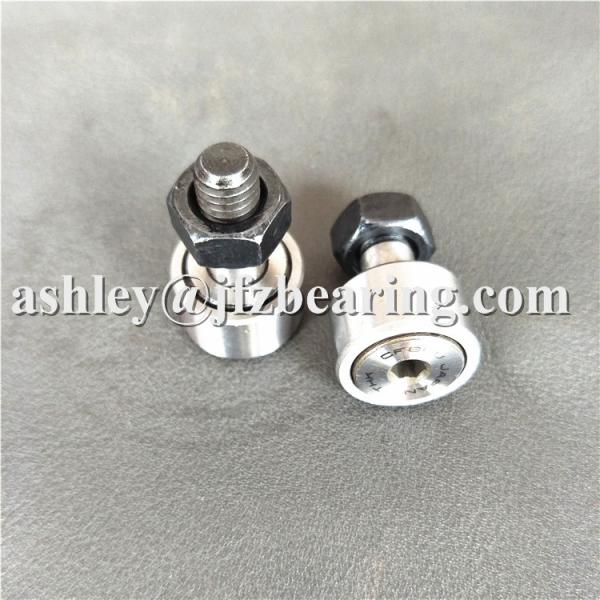

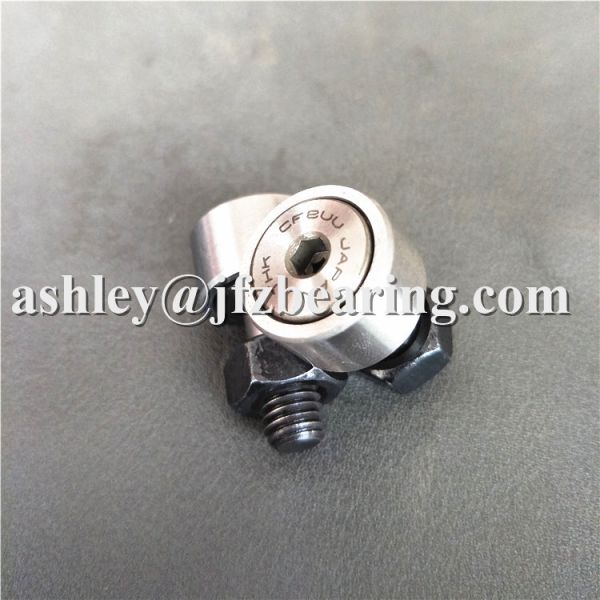

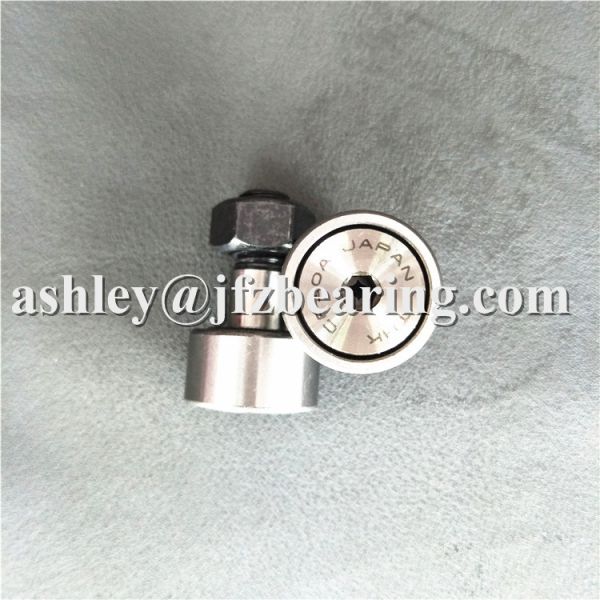

Product Picture

THK Cam Follower Cf-a CF8UU Cf8uu-a 450316 ShipsamedayTHK Cam Follower Cf-a CF8UU Cf8uu-a 450316 ShipsamedayTHK Cam Follower Cf-a CF8UU Cf8uu-a 450316 ShipsamedayTHK Cam Follower Cf-a CF8UU Cf8uu-a 450316 Shipsameday

Packing , Payment , Delievry and Stock

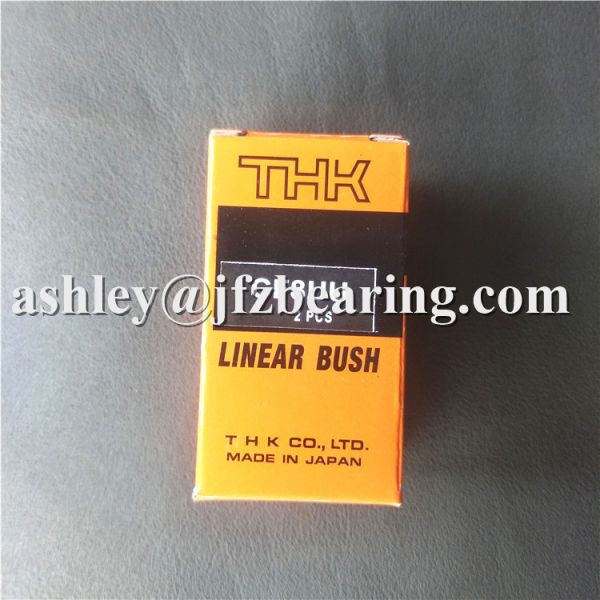

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
