HM807049 / HM807010 TIMKEN 2.125x4.125x1.4375 Tapered Roller Bearings
HM807049 / HM807010 TIMKEN 2.125x4.125x1.4375 Tapered Roller Bearings
HM807049 / HM807010 TIMKEN 2.125x4.125x1.4375 Tapered Roller Bearings
HM807049 / HM807010 TIMKEN 2.125x4.125x1.4375 Tapered Roller Bearings
HM807049 / HM807010 TIMKEN 2.125x4.125x1.4375 Tapered Roller Bearings
HM807049 / HM807010 TIMKEN 2.125x4.125x1.4375 Tapered Roller Bearings
Specifications
Brand Name :
TIMKEN
Model Number :
HM807049
MOQ :
1
Price :
USD 0.5-10 PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Bearing Type :
Tapered Roller Bearings
Bearing model :
HM807049
Material :
Chrome Steel
ABMA Precision Rating :
Class 2
Description

Bearing Type : Tapered Roller Bearings

Brand : TIMKEN

Weigh : 1.44KG

Material : Chrome Steel

Seals Type : TS

Number of rolling elements : Single row

Inner Packing : Carton/wooden box, packaging with a woven belt

Outer Packing : Carton/wooden box

Stock : Great Supplying Ability

Supply a sample : Yes

Bearing Specification

 Bearing Designation HM807049/HM807010 Bearing

series Tapered roller bearings

Boundary Dimensions

Inner diameter (d)

 53.975

Foreign Economics (D)

 104.775

Height (thickness) (B)

 36.512

Basic Load Ratings

Dynamic Load Rating (Cr)

 154

Static load rating (Cor)

 204

Limiting Speeds

Grease (Grease)

 4500

Oil lubrication (oil)

 6700

Single row tapered roller bearings

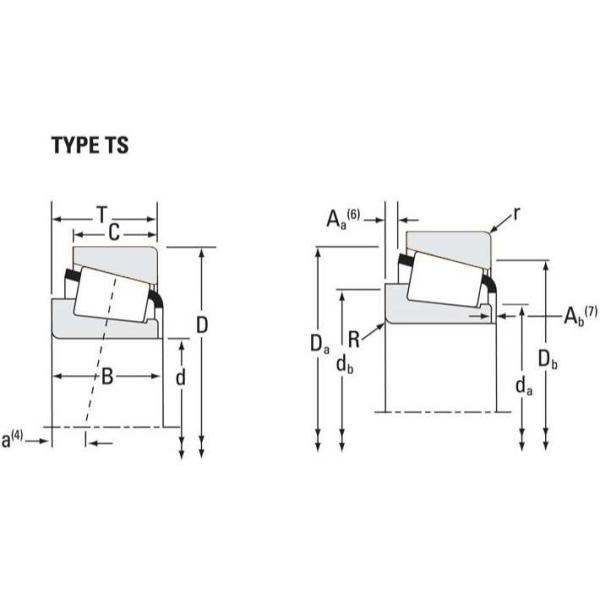

Abutment Dimensions

da 62.99mm

Da 100.10 mm

db 72.90 mm

Db 88.90 mm

Aa 3 mm

Ab 2.5 mm

HM807049 / HM807010 TIMKEN 2.125x4.125x1.4375

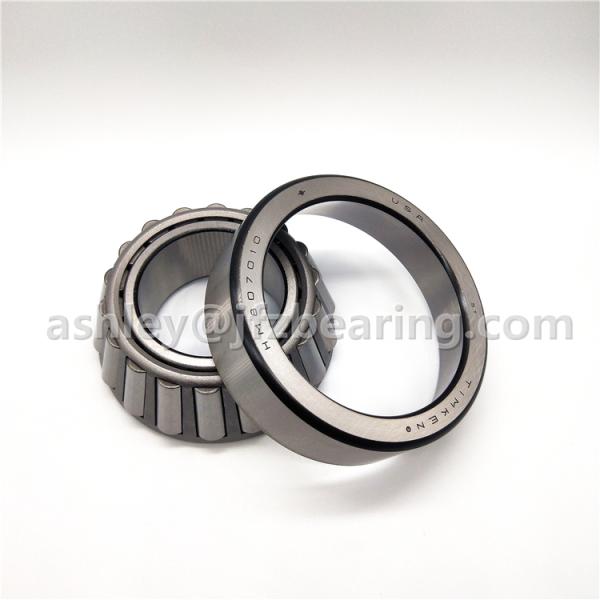

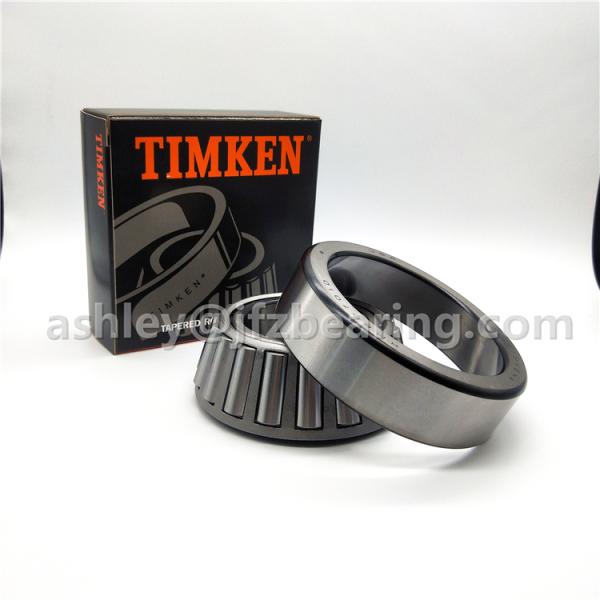

Product Picture

HM807049 / HM807010 TIMKEN 2.125x4.125x1.4375HM807049 / HM807010 TIMKEN 2.125x4.125x1.4375

Recommended Model

  • JW5549/JW5510 TIMKEN, HM804846/HM804810 TIMKEN,
    • JLM813049/JLM813010
      M86649/M86610
      H917840/H917810
      H913840/H913810
      9380/9321
      2850/2520
      45285A/45220
      45284/45220
      45285/45220
      HM803149/803110
      HM807046/807010
      M12649/M12610
      HR322/22C
      HR322/20C
      HR302/22XJ

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis

HM807049 / HM807010 TIMKEN 2.125x4.125x1.4375
