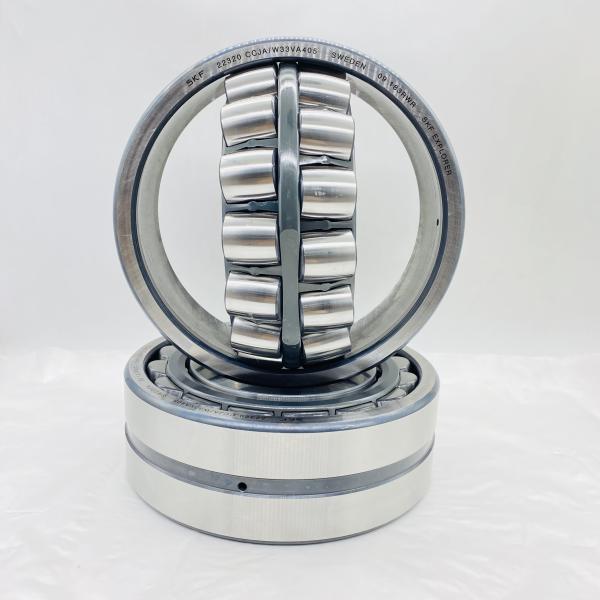

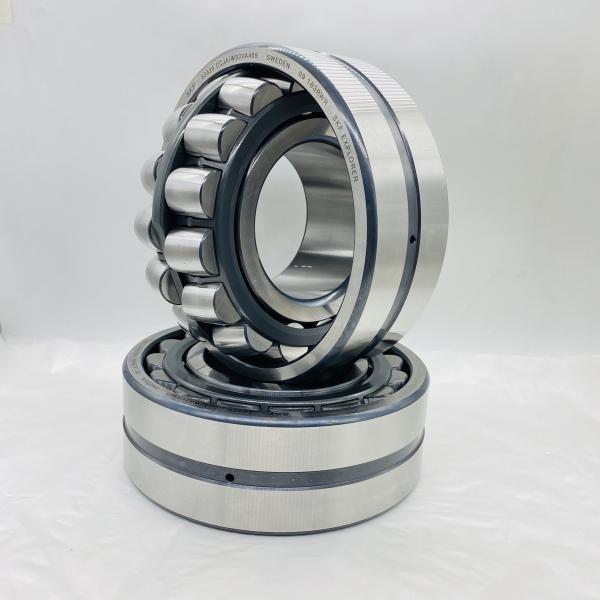

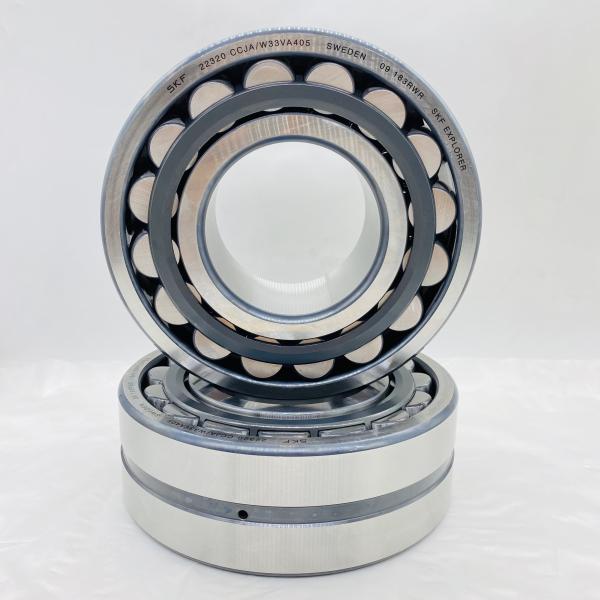

SKF 22320 CCJA/W33VA405 Spherical roller bearing SKF Bearing W33 - Lubrication Groove and 3 Holes
SKF 22320 CCJA/W33VA405 Spherical roller bearing SKF Bearing W33 - Lubrication Groove and 3 Holes
SKF 22320 CCJA/W33VA405 Spherical roller bearing SKF Bearing W33 - Lubrication Groove and 3 Holes
SKF 22320 CCJA/W33VA405 Spherical roller bearing SKF Bearing W33 - Lubrication Groove and 3 Holes
SKF 22320 CCJA/W33VA405 Spherical roller bearing SKF Bearing W33 - Lubrication Groove and 3 Holes
SKF 22320 CCJA/W33VA405 Spherical roller bearing SKF Bearing W33 - Lubrication Groove and 3 Holes
Specifications
Brand Name :
NSK
Model Number :
22328 CCJA/W33VA405
MOQ :
1
Price :
USD 0.5-10 PCS
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Precision rating :
ABEC1, P0
Seals type :
W33
Material :
Chrome Steel
Bearing Model :
22320 CCJA/W33VA405
Bearing Type :
Spherical Roller Bearing
Description

Bearing Type : Spherical Roller Bearing

Brand : SKF

Cage material : Steel Cage

Material : Steel

Number : Columns

Scope application : Industria and Construction Machinery

Inner Packing : Carton/wooden box, packaging with a woven belt

Outer Packing : Carton/wooden box

Stock : Great Supplying Ability

Supply a sample : Yes

Bearing Specification

  • Availability0 pcs
  • BrandSKF
  • Item Number22320CCJA/W33VA405 SKF
  • Technical details (CCJA/W33VA405)CC=Two Window-Type Steel Cages, Flangeless Inner Ring And Guide Ring Centered On The Inner Ring. JA=Pressed Cage Of Unhardened Sheet Steel, Centred On The Outer Ring. W33=Lubrication Groove And Three Holes In Bearing Outer Ring. VA405=(Segment Rad. Int. Play, Code 4 & Segment Vibr. Scr. Ex., Code V)=Bearings For Vibratory Applications With Surface Hardened Cages.
  • CategorySpherical Roller Bearing
  • Inner (d) MM100
  • Outer (D) MM215
  • Width (B) MM73
  • Weight (kg)12.1
  • BoreC - Cylindrical Bore
  • Lubrication EnhancementW33 - Lubrication Groove and 3 Holes
  • SealNo Seal
  • Cage TypeS - Steel or Standard Cage
  • Manufacturer Part Number (MPN)22320CCJA/W33VA405
  • Radial Internal PlayC4 Internal Play (Higher than C3)
  • PrecisionStandard Precision
  • Heat StabilizationNo Heat Stabilization - Temperatures up to 120 °C
  • Vibrating Screen ExecutionVibrating Screen Execution


Description

Model: 22328 CCJA/W33VA405
Type: spherical roller bearing
Suffix meaning:
CC: C type design spherical roller bearing, the guide of the roller has been improved; machined double buckle steel cage
JA: Hardened steel cage
W33: Outer ring (outer diameter) with oil groove and three oil holes
VA405: Bearings for Vibration Machinery

Bearing Size

  1. da
    min. 157 mm
    		 Abutment diameter shaft
    Da
    max. 283 mm
    		 Abutment diameter housing
    ra
    max. 3 mm
    		 Fillet radius

SKF 22320 CCJA/W33VA405 Spherical roller bearing SKF Bearing W33 - Lubrication Groove and 3 Holes SKF 22320 CCJA/W33VA405 Spherical roller bearing SKF Bearing W33 - Lubrication Groove and 3 Holes

Product Picture

SKF 22320 CCJA/W33VA405 Spherical roller bearing SKF Bearing W33 - Lubrication Groove and 3 HolesSKF 22320 CCJA/W33VA405 Spherical roller bearing SKF Bearing W33 - Lubrication Groove and 3 Holes

SKF 22320 CCJA/W33VA405 Spherical roller bearing SKF Bearing W33 - Lubrication Groove and 3 HolesSKF 22320 CCJA/W33VA405 Spherical roller bearing SKF Bearing W33 - Lubrication Groove and 3 Holes

Recommended Model

32005-X轴承 FAG S6200-2RSR FAG RTW617 FAG PCJT35-N-FA125 FAG 32232-A-N11CA FAG 22314-E1-K+H2314

FAG CSXF140 FAG 61815-2RSR-Y FAG CSXA045 FAG 3317-M FAG 23236-E1A-M FAG 6010-2RSR

FAG 61820-2RSR-YFAG B71914-C-2RSD-T-P4SFAG B7230-E-T-P4SFAG 22217-E1-K+AHX317FAG GAKR14-PWFAG SL024960 and

other model

We also provide Brand Bearing

If you need, please contact us,Catalog and sample can be offered,let me the model you need,i will quote to you For reference.

TIMKEN,FAG,SKF,INA,NSK,NTN,KOYO,ASAHI,IKO Bearing

Packing , Payment , Delievry and Stock

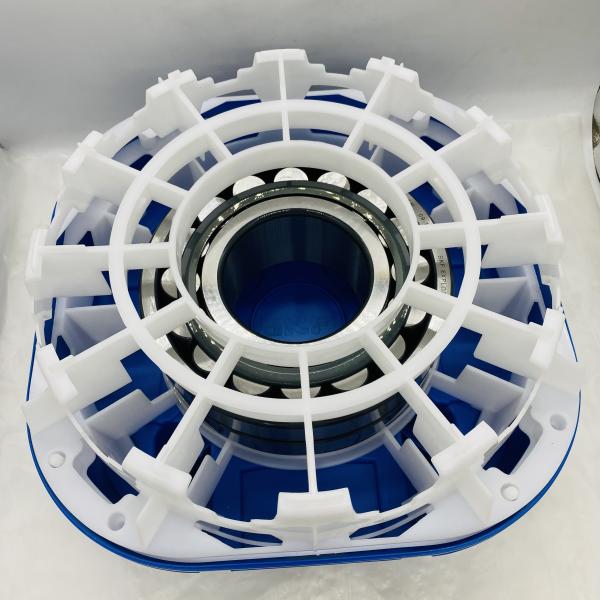

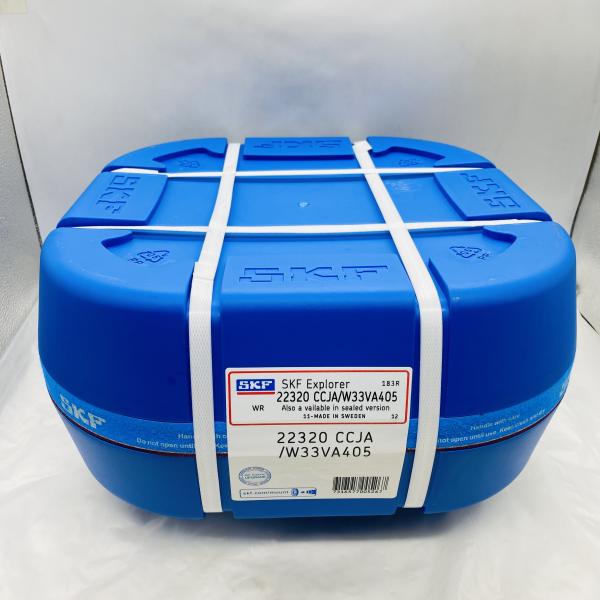

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
