NTN 6203ZZ / 6203 LLU Deep Groove Ball Bearings 17x40x12mm 6203ZZCM/5K
NTN 6203ZZ / 6203 LLU Deep Groove Ball Bearings 17x40x12mm 6203ZZCM/5K
NTN 6203ZZ / 6203 LLU Deep Groove Ball Bearings 17x40x12mm 6203ZZCM/5K
NTN 6203ZZ / 6203 LLU Deep Groove Ball Bearings 17x40x12mm 6203ZZCM/5K
Specifications
Brand Name :
NTN
Model Number :
6203ZZ
MOQ :
1
Price :
USD 0.5-10 PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Bearing Type :
Deep Groove Ball Bearing
Bearing Model :
6203ZZ
Precision Rating :
ISO Class 0
Material :
Carbon Chrome Steel
Description

Bearing Type : Deep Groove Ball Bearing

Brand :NTN

Load Direction : Radial

Material : Chrome Steel

Seals Type : ZZ

Scope application : Industria and Construction Machinery

Inner Packing : Carton/wooden box, packaging with a woven belt

Outer Packing : Carton/wooden box

Stock : Great Supplying Ability

Supply a sample : Yes

Bearing Specification

Bore Diameter 17 mm
Outside Diameter 40 mm
Overall Width 12 mm
Bore Type Round
Closure Type Double Shielded
Row Type & Fill Slot Single Row Non-Fill Slot
Snap Ring Included Without Snap Ring
Internal Clearance CN
Operating Temperature Range -40 to 120 ºC
Dynamic Load Capacity 9600 N
Static Load Capacity 4600 N

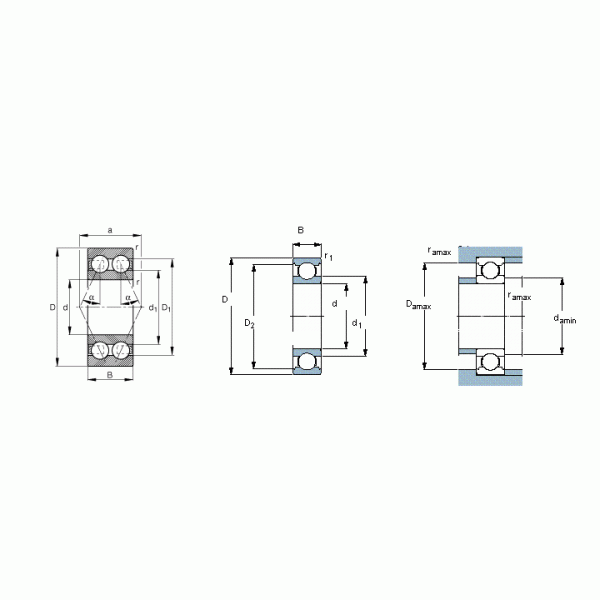

Abutment Dimensions

Boundary dimensions
mm		 Basic load ratings Factor Limiting speeds

min^-1		 Bearing numbers
dynamic static dynamic static
d D B rsmin^ 1) rNS
min		 kN kgf fo grease
open type
ZZ LLB 		oil
open type
Z LB 		LLH LLU open
type
Cr Cor Cr Cor
40 12 0.6 0.5 9.6 4.6 980 465 12.8 18 000 21 000 15 000 12 000 6203

NTN 6203ZZ / 6203 LLU Deep Groove Ball Bearings 17x40x12mm 6203ZZCM/5K

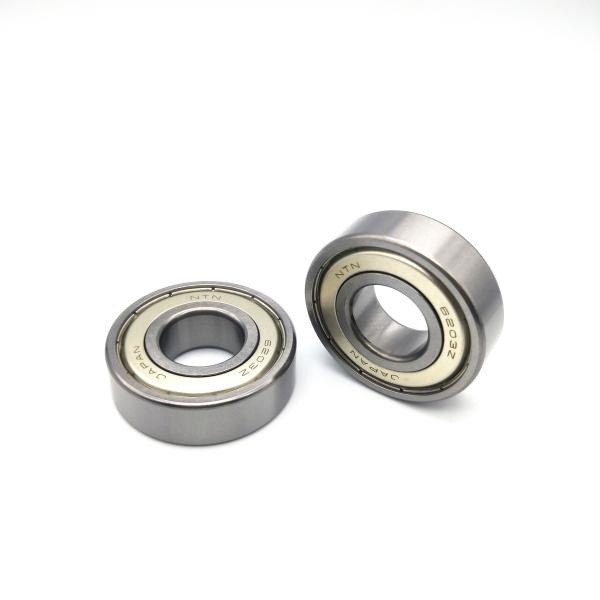

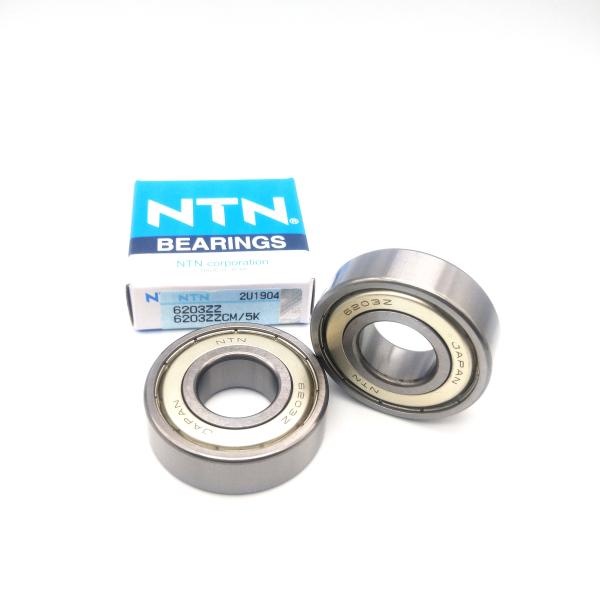

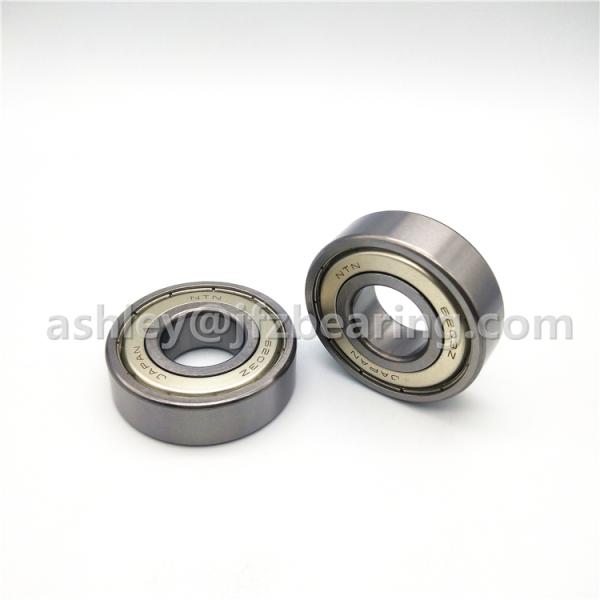

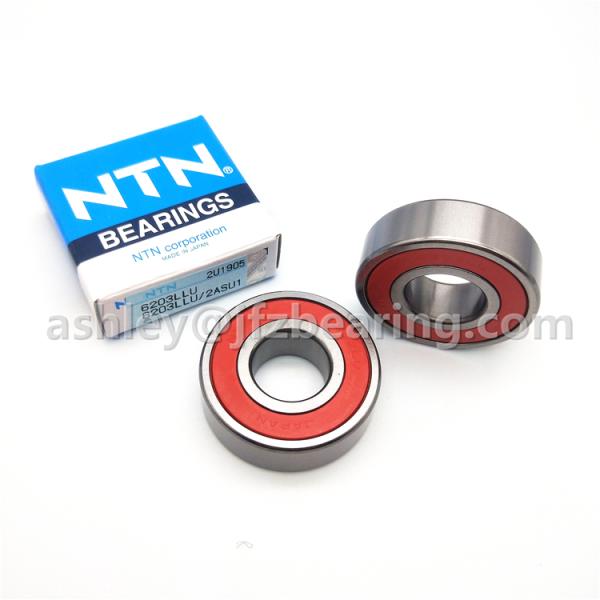

Product Picture

NTN 6203ZZ / 6203 LLU Deep Groove Ball Bearings 17x40x12mm 6203ZZCM/5KNTN 6203ZZ / 6203 LLU Deep Groove Ball Bearings 17x40x12mm 6203ZZCM/5KNTN 6203ZZ / 6203 LLU Deep Groove Ball Bearings 17x40x12mm 6203ZZCM/5K

Recommended Model

6201ZZ / LLU , 6202ZZ / LLU , 6203ZZ / LLU , 6204ZZ /LLU , 6205ZZ / LLU , 6206ZZ / LLU and other model

We also provide Brand Bearing

If you need, please contact us,Catalog and sample can be offered,let me the model you need,i will quote to you For reference.

TIMKEN,FAG,SKF,INA,NSK,NTN,KOYO,ASAHI,IKO Bearing

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
