3782/3720 - Timken Taper Roller Bearing -Wheel Bearing and Race Set-Race Set Front Outer 1.75x3.6718x1.1875 inches
3782/3720 - Timken Taper Roller Bearing -Wheel Bearing and Race Set-Race Set Front Outer 1.75x3.6718x1.1875 inches
3782/3720 - Timken Taper Roller Bearing -Wheel Bearing and Race Set-Race Set Front Outer 1.75x3.6718x1.1875 inches
3782/3720 - Timken Taper Roller Bearing -Wheel Bearing and Race Set-Race Set Front Outer 1.75x3.6718x1.1875 inches
3782/3720 - Timken Taper Roller Bearing -Wheel Bearing and Race Set-Race Set Front Outer 1.75x3.6718x1.1875 inches
3782/3720 - Timken Taper Roller Bearing -Wheel Bearing and Race Set-Race Set Front Outer 1.75x3.6718x1.1875 inches
3782/3720 - Timken Taper Roller Bearing -Wheel Bearing and Race Set-Race Set Front Outer 1.75x3.6718x1.1875 inches
3782/3720 - Timken Taper Roller Bearing -Wheel Bearing and Race Set-Race Set Front Outer 1.75x3.6718x1.1875 inches
Specifications
Brand Name :
TIMKEN
Model Number :
3782/3720
MOQ :
1
Price :
USD 0.5-10 PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Type :
Roller
Structure :
Taper
Material :
Chrome Steel GCr15
SEALS OR SHIELDS :
OPEN TYPE
Description

Bearing Type : Tapered Roller Bearings

Brand : TIMKEN

Weigh : 0.97 KG

Material : Chrome Steel

Seals Type : Open

Number of rolling elements : Single row

Inner Packing : Carton/wooden box, packaging with a woven belt

Outer Packing : Carton/wooden box

Stock : Great Supplying Ability

Supply a sample : Yes

Description

This 3782/3720 bearing is an imperial taper roller bearing. The bearing's dimensions are 1.75x3.6718x1.1875inch

CONE REFERENCE CUP REFERENCE
3782 3720
Imperial Series Cone Reference Imperial Series Cup Reference

Bearing Specification

Dimensions

d - Bore

 1 3/4 in44.450 mm

D - Cup Outer Diameter

 3.6718 in93.264 mm

B - Cone Width

 1.1930 in30.302 mm

C - Cup Width

 0.9375 in23.813 mm

T - Bearing Width

 1.1875 in30.163 mm

Basic Load Ratings

C90 - Dynamic Radial Rating (90 million revolutions)4

7120 lbf

31700 N
C1 - Dynamic Radial Rating (1 million revolutions)5

27500 lbf

122000 N

C0 - Static Radial Rating

34300 lbf

153000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)6

4120 lbf

18300 N

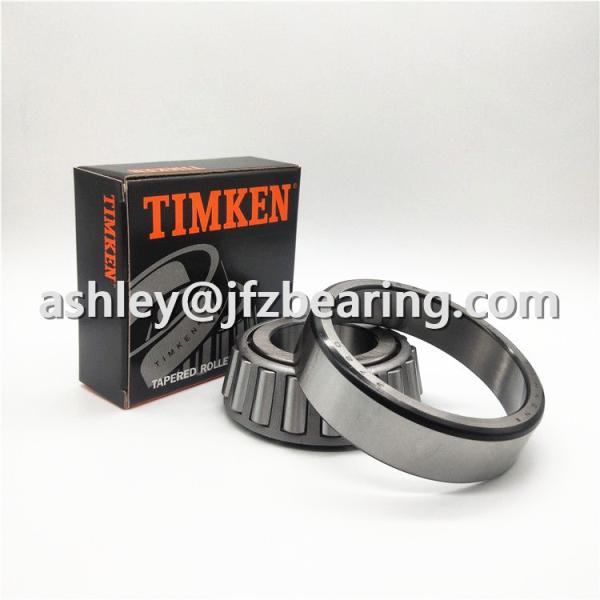

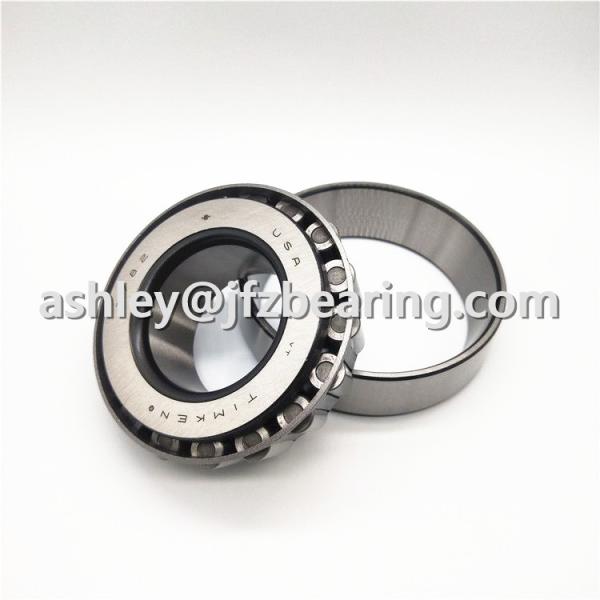

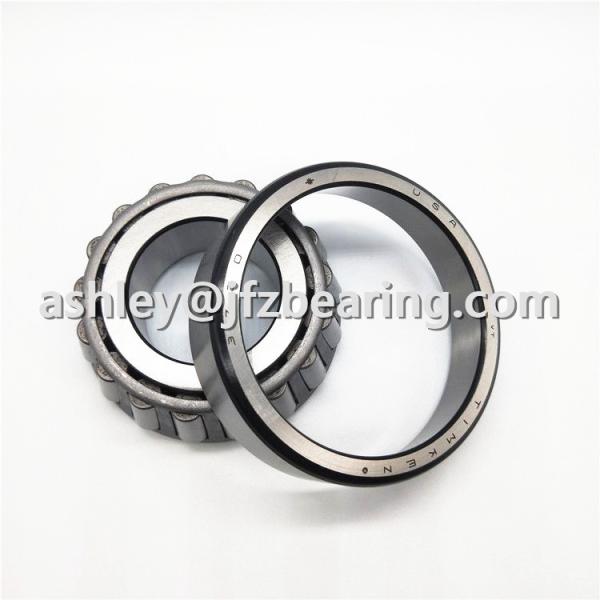

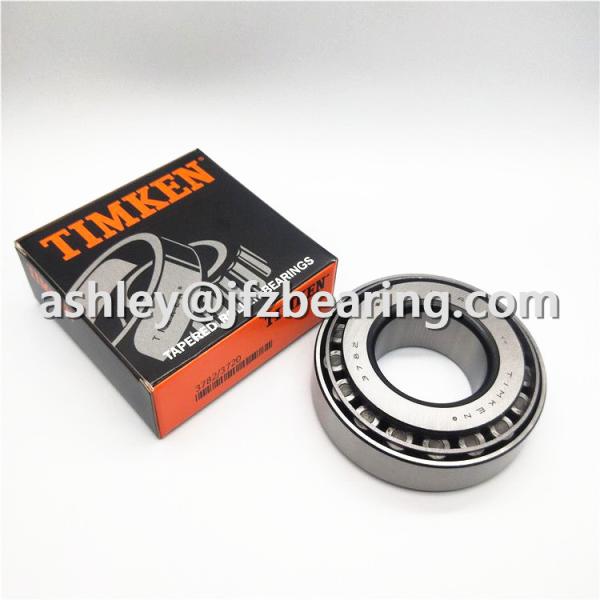

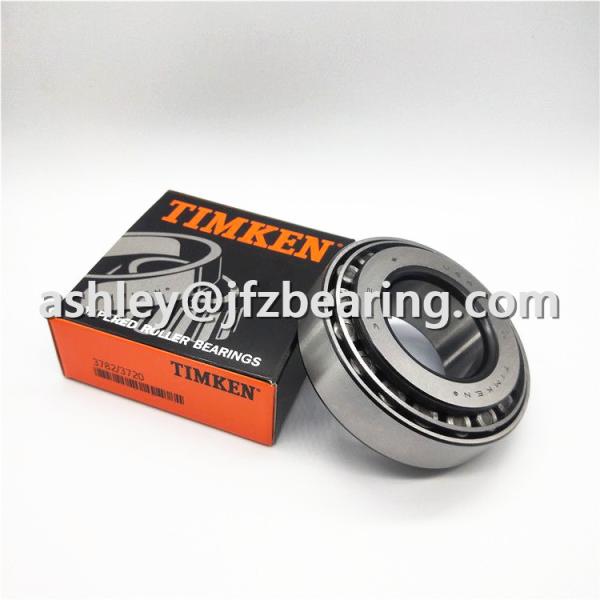

Product Picture

3782/3720 - Timken Taper Roller Bearing -Wheel Bearing and Race Set-Race Set Front Outer 1.75x3.6718x1.1875 inches3782/3720 - Timken Taper Roller Bearing -Wheel Bearing and Race Set-Race Set Front Outer 1.75x3.6718x1.1875 inches

3782/3720 - Timken Taper Roller Bearing -Wheel Bearing and Race Set-Race Set Front Outer 1.75x3.6718x1.1875 inches3782/3720 - Timken Taper Roller Bearing -Wheel Bearing and Race Set-Race Set Front Outer 1.75x3.6718x1.1875 inches

Recommended Model

  • JW5549/JW5510 TIMKEN, HM804846/HM804810 TIMKEN,
    • JLM813049/JLM813010
      M86649/M86610
      H917840/H917810
      H913840/H913810
      9380/9321
      2850/2520
      45285A/45220
      45284/45220
      45285/45220
      HM803149/803110
      HM807046/807010
      M12649/M12610
      HR322/22C
      HR322/20C
      HR302/22XJ

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
