SUCAFL206, Corrosion Resistant Hygienic Two-Bolt Flanged Housed Units - Set Screw Locking
SUCAFL206, Corrosion Resistant Hygienic Two-Bolt Flanged Housed Units - Set Screw Locking
SUCAFL206, Corrosion Resistant Hygienic Two-Bolt Flanged Housed Units - Set Screw Locking
SUCAFL206, Corrosion Resistant Hygienic Two-Bolt Flanged Housed Units - Set Screw Locking
SUCAFL206, Corrosion Resistant Hygienic Two-Bolt Flanged Housed Units - Set Screw Locking
SUCAFL206, Corrosion Resistant Hygienic Two-Bolt Flanged Housed Units - Set Screw Locking
Specifications
Brand Name :
No Brand
Model Number :
SUCAFL206
MOQ :
1
Price :
USD 0.5-10 PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Material :
Paslanmaz Rulmanlı Termoplastik Yataklar
Color :
white
Type :
Pillow block bearing
Description

Bearing Type : Pillow block bearing

Brand : Anything

Weigh : 1 KG

Material : Paslanmaz Rulmanlı Termoplastik Yataklar

Precision : Standard Precision

Scope application : Textile Machine,elevator Machine, Strap/belt Tighteners• Bucket Conveyors • Belt Reversing Locks

Inner Packing : Carton/wooden box, packaging with a woven belt

Outer Packing : Carton/Wooden box

Stock : Great Supplying Ability

Supply a sample : Yes

Bearing Specification

Housing Material

 Machined Stainless Steel

Bearing Number

 SUC206-18/F

Lubrication Type

 Standard Food Safe Grease

Bore Size

 1 1/8 in

Weight

 1.0 Kg2.3 lb

Locking Style

 Set Screw Locking

Housing Construction

 Two-Bolt Flange

Bearing Style

Dimensions

Total Length H

5.594 in

142.0 mm

Total Height L

3.118 in

79.2 mm

Total Width A0

1.531 in

38.9 mm

Bolt Hole Spacing J

4.600 in

116.8 mm

Housing Width A

1.067 in

27.2 mm

Bolt Hole Size N

0.469 in

11.9 mm

Center of Bearing from Housing End A2

0.657 in

16.7 mm

Center of Bearing from Bearing End S

0.626 in

15.9 mm

Inner Ring Width B

1.500 in

38.1 mm

Basic Load Ratings

Static Load Rating

2035 lbf

9050 N

Dynamic Load Rating

3710 lbf

16500 N

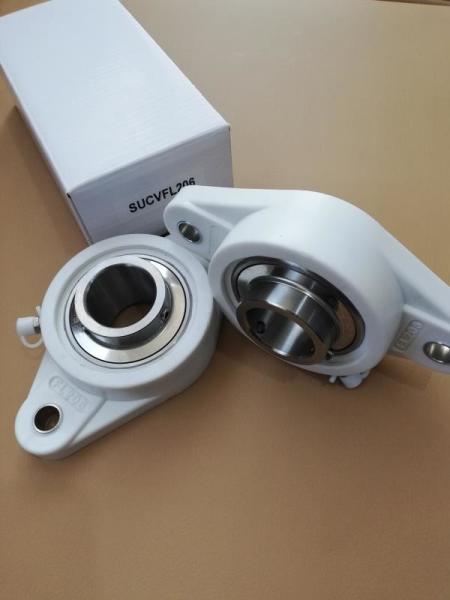

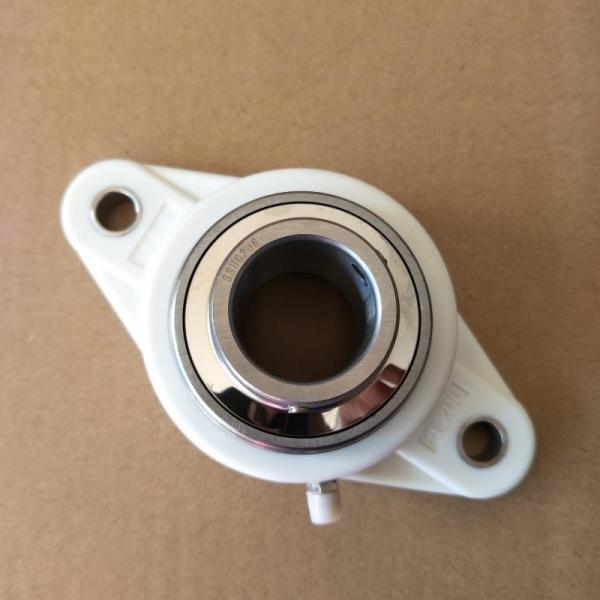

Product Picture

SUCAFL206, Corrosion Resistant Hygienic Two-Bolt Flanged Housed Units - Set Screw LockingSUCAFL206, Corrosion Resistant Hygienic Two-Bolt Flanged Housed Units - Set Screw LockingSUCAFL206, Corrosion Resistant Hygienic Two-Bolt Flanged Housed Units - Set Screw Locking

The most concerned nsk bearing models by users

NSK16034M NSK22314HKE4 NSKHR32207J NSK53208U NSKNU213ET NSK6321 NSK7908A5TY NSKUCF216-302D1 NSKZM-UCFL213D1 NSK53215 NSK6909 NSK7015A NSK23284CAE4 NSK692ZZ NSKZM-UCP209-112D1

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis

SUCAFL206, Corrosion Resistant Hygienic Two-Bolt Flanged Housed Units - Set Screw Locking
