Timken X32016X , Y32016X Tapered Roller Bearing Cone and Cup Set, Steel, Metric, 80mm ID, 125mm OD, 32016 Bearing
Timken X32016X , Y32016X Tapered Roller Bearing Cone and Cup Set, Steel, Metric, 80mm ID, 125mm OD, 32016 Bearing
Timken X32016X , Y32016X Tapered Roller Bearing Cone and Cup Set, Steel, Metric, 80mm ID, 125mm OD, 32016 Bearing
Timken X32016X , Y32016X Tapered Roller Bearing Cone and Cup Set, Steel, Metric, 80mm ID, 125mm OD, 32016 Bearing
Timken X32016X , Y32016X Tapered Roller Bearing Cone and Cup Set, Steel, Metric, 80mm ID, 125mm OD, 32016 Bearing
Timken X32016X , Y32016X Tapered Roller Bearing Cone and Cup Set, Steel, Metric, 80mm ID, 125mm OD, 32016 Bearing
Specifications
Brand Name :
TIMKEN
Model Number :
32016
MOQ :
1
Price :
USD 0.5-10 PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Bearing Material :
Steel
Bearing Model :
32016
Bearing Type :
Tapered Roller Bearing
Precision rating :
P0 P6 P5 P4 P2
Description

Bearing Type : Tapered Roller Bearing

Brand : TIMKEN

Item Shape : Cup and Cone

Material : Chrome Steel

Closure Type : Open

Scope application : Industria and Construction Machinery

Inner Packing : Carton/wooden box, packaging with a woven belt

Outer Packing : Carton/wooden box

Stock : Great Supplying Ability

Supply a sample : Yes

Bearing Specification

Specifications

Series

 32016X

Cup Part Number

 Y32016X

Design Units

 METRIC

Full Timken Part Number

 32016X

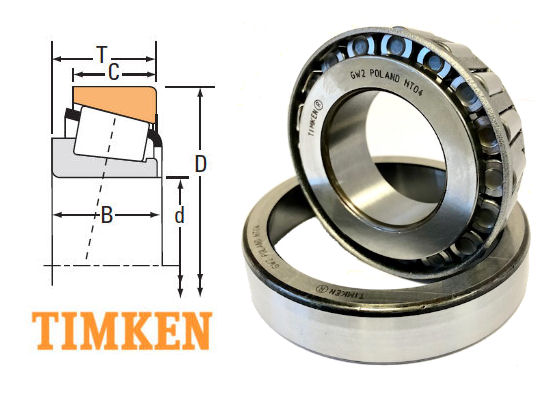

Dimensions

D - Cup Outer Diameter

 125 mm4.9213 in

C - Cup Width

 22.000 mm0.8661 in

Abutment and Fillet Dimensions

r - Cup Backface "To Clear" Radius1 1.52 mm0.06 in

Da - Cup Frontface Backing Diameter

 119.90 mm4.75 in

Db - Cup Backface Backing Diameter

 114.05 mm4.49 in

Specifications

Series

 32016X

Cone Part Number

 X32016X

Design Units

 METRIC

Cage Type

 Stamped Steel
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)1 342000 N77000 lbf
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)2 88800 N20000 lbf

Full Timken Part Number

 32016X

Dimensions

d - Cone Bore

 80 mm3.1496 in

B - Cone Width

 29.000 mm1.1417 in

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius3 1.520 mm0.06 in

da - Cone Frontface Backing Diameter

 87 mm3.43 in

db - Cone Backface Backing Diameter

 91 mm3.58 in

Ab - Cage-Cone Frontface Clearance

 3 mm0.12 in

Aa - Cage-Cone Backface Clearance

 2.3 mm0.09 in
a - Effective Center Location4 -1.8 mm-0.07 in

Description

This 32016X bearing is a metric taper roller bearing. The bearing's dimensions are 80x125x29mm

3 20 16 X
Tapered Roller Very Light Series, Wide 80mm - Bore Size ISO bearing with same boundary dimensions as basic part number but with different internal geometry, yielding increased rating.

Timken X32016X , Y32016X Tapered Roller Bearing Cone and Cup Set, Steel, Metric, 80mm ID, 125mm OD, 32016 Bearing

Product Picture

Timken X32016X , Y32016X Tapered Roller Bearing Cone and Cup Set, Steel, Metric, 80mm ID, 125mm OD, 32016 BearingTimken X32016X , Y32016X Tapered Roller Bearing Cone and Cup Set, Steel, Metric, 80mm ID, 125mm OD, 32016 BearingTimken X32016X , Y32016X Tapered Roller Bearing Cone and Cup Set, Steel, Metric, 80mm ID, 125mm OD, 32016 BearingTimken X32016X , Y32016X Tapered Roller Bearing Cone and Cup Set, Steel, Metric, 80mm ID, 125mm OD, 32016 Bearing

About this bearing

  • Cone (inner ring assembly) and cup (outer ring) combine to form a complete single tapered roller bearing
  • Supports both radial and axial loads between a rotating and non-rotating member
  • Operating temperatures range from -54 to 120 degrees C (-65 to 250 degrees F)
  • Stamped steel cage evenly spaces rollers for reduced friction, vibration, and noise
  • Open configuration for lubrication applied in place

We also provide Brand Bearing

If you need, please contact us,Catalog and sample can be offered,let me the model you need,i will quote to you For reference.

TIMKEN,FAG,SKF,INA,NSK,NTN,KOYO,ASAHI,IKO Bearing

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
