FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage
FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage
FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage
FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage
FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage
FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage
FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage
FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage
FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage
FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage
Specifications
Brand Name :
KOYO
Model Number :
2308-TVH
MOQ :
1
Price :
USD 0.5-10 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Number of row :
Double Row
Type :
Ball
Package :
Box,Original Package
Cage :
Steel Cage
Description

Description

This 2308-TVH bearing is a double row, extra wide series, metric self aligning bearing with a solid cage made from glass fibre reinforced polyamide 66 and a normal radial internal clearance. The bearing's dimensions are 40x90x33mm

23 08 TVH
Extra Wide 40mm - Bore Size Cylindrical Bore Open Type Solid Cage Made From Glass Reinforced Polyamide 66 Normal Radial Internal Clearance

Product Information

BRAND:
FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage




SKU:
2308-TVH-FAG




AVAILABILITY:
IN STOCK




WEIGHT:
0.9220 KGS

FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage

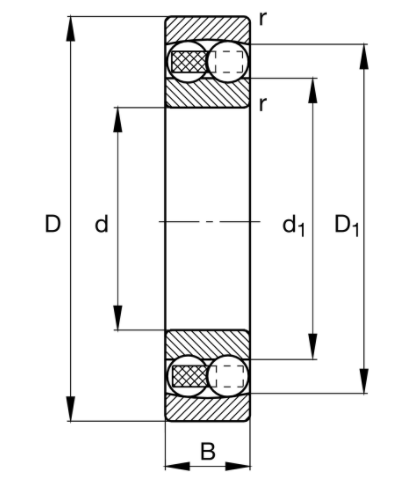

Main Dimensions & Performance Data
d 40 mm Bore diameter
D 90 mm Outside diameter
B 33 mm Width
rmin 1.5 mm Minimum chamfer dimension
Cr 46,000 N Basic dynamic load rating, radial
C0r 13,500 N Basic static load rating, radial
Cur 860 N Fatigue load limit, radial
nG 7,900 1/min Limiting speed
nϑr 8,700 1/min Reference speed
≈m 0.925 kg Weight
Mounting dimensions
da min 49 mm Minimum diameter shaft shoulder
Da max 81 mm Maximum diameter of housing shoulder
ra max 1.5 mm Maximum fillet radius
Temperature range
Tmin -30 °C Operating temperature min.
Tmax 120 °C Operating temperature max.
Calculation factors
e 0.43 Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y
D1 74.5 mm Shoulder diameter outer ring
Y1 1.46 Dynamic axial load factor
Y2 2.25 Dynamic axial load factor
d1 53.7 mm Shoulder diameter inner ring
Y0 1.52 Static axial load factor

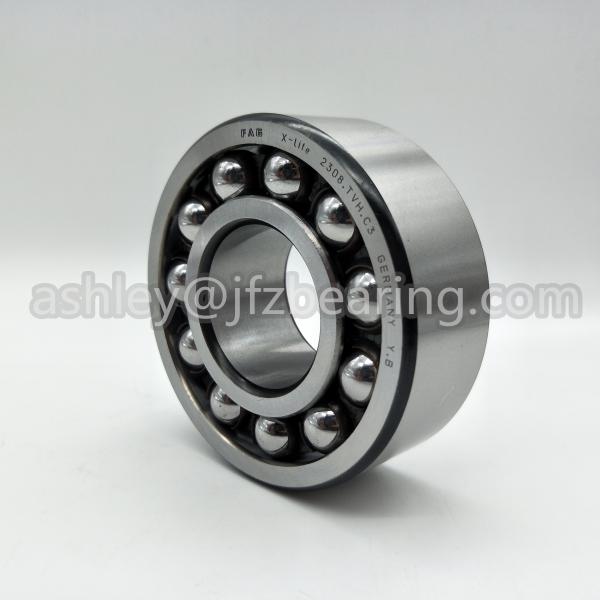

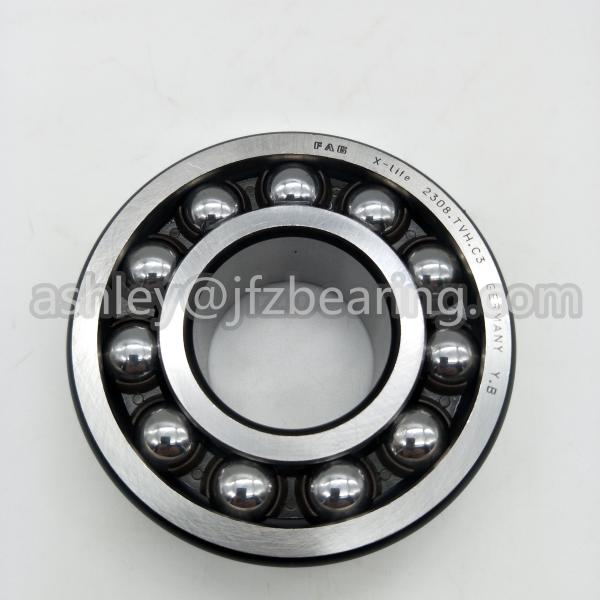

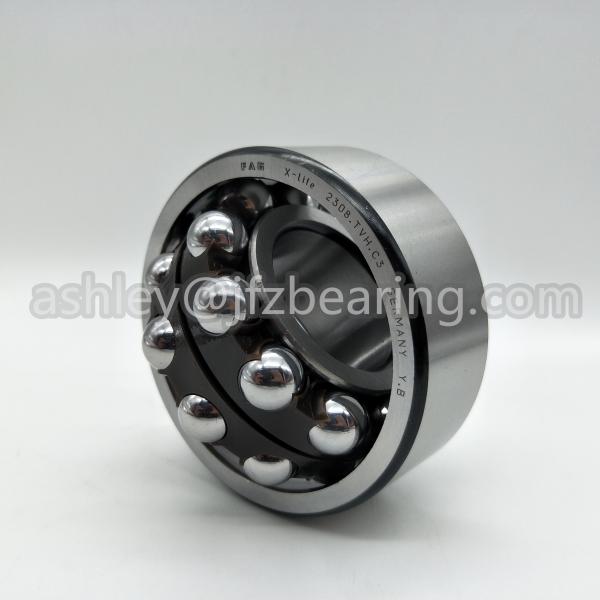

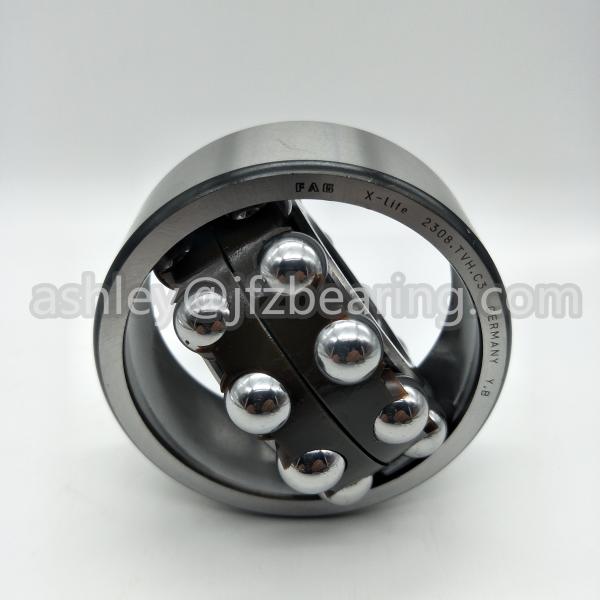

Product Picture

FAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cageFAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cageFAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cageFAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cageFAG Self-aligning Ball Bearings - Double Row- 40x90x33mm, 23..Series (FAG (Schaeffler)) (2308-TVH),plastic cage

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
