SKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup Width
SKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup Width
SKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup Width
SKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup Width
SKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup Width
SKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup Width
SKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup Width
SKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup Width
SKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup Width
SKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup Width
Specifications
Brand Name :
SKF
Model Number :
32228 J2
MOQ :
1
Price :
USD 0.5-10 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Number of row :
Single Row
Precision rating :
P0 P6 P5 P4 P2
Material :
Chrome Steel
Cage :
Steel
Package :
Original Package
Description

SKF Taper roller bearing priced cup & cone together 140mm inside x 250mm outside x 71.75mm width, also known as 32228J2

Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.

Industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.

Benefits:
Enhanced performance in demanding applications.

DIMENSIONS

d
140 mm
 Bore diameter
D
250 mm
 Outside diameter
T
71.75 mm
 Total bearing width
d1
≈191.53 mm
 Inner ring shoulder diameter
B
68 mm
 Width inner ring
C
58 mm
 Width outer ring
r1,2
min.4 mm
 Corner radius inner ring
r3,4
min.3 mm
 Corner radius outer ring
a
59.503 mm
 Distance pressure point

ABUTMENT DIMENSIONS

da
max.159 mm
 Abutment diameter shaft
db
min.156.5 mm
 Abutment diameter shaft
Da
min.210 mm
 Abutment diameter housing
Da
max.236.5 mm
 Abutment diameter housing
Db
min.238 mm
 Abutment diameter housing
Ca
min.8 mm
 Abutment housing - axial space at the large side face/ both sides of the outer ring
Cb
min.13.5 mm
 Abutment housing - axial space at the small side face/ both sides of the outer ring
ra
max.4 mm
 Fillet radius
rb
max.3 mm
 Fillet radius

CALCULATION DATA

Basic dynamic load rating C
691 kN
Basic static load rating C0
1 000 kN
Fatigue load limit Pu
100 kN
Reference speed
1 900 r/min
Limiting speed
2 600 r/min
Calculation factor e
0.43
Calculation factor Y
1.4
Calculation factor Y0
0.8

MASS

Mass bearing
14.2 kg

SKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup WidthSKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup Width

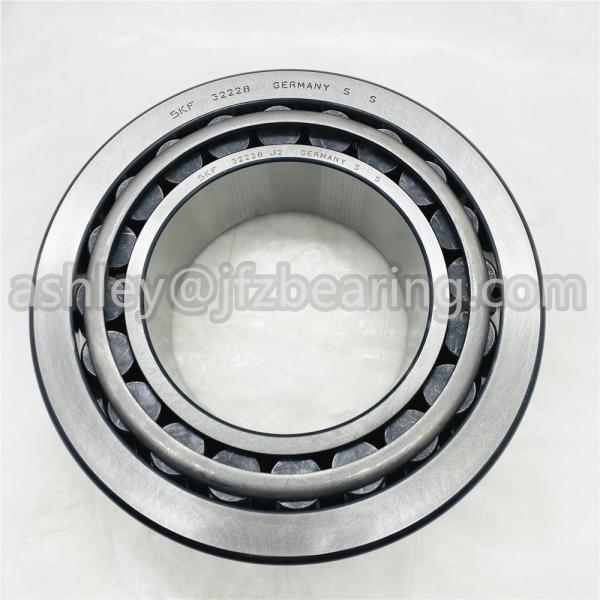

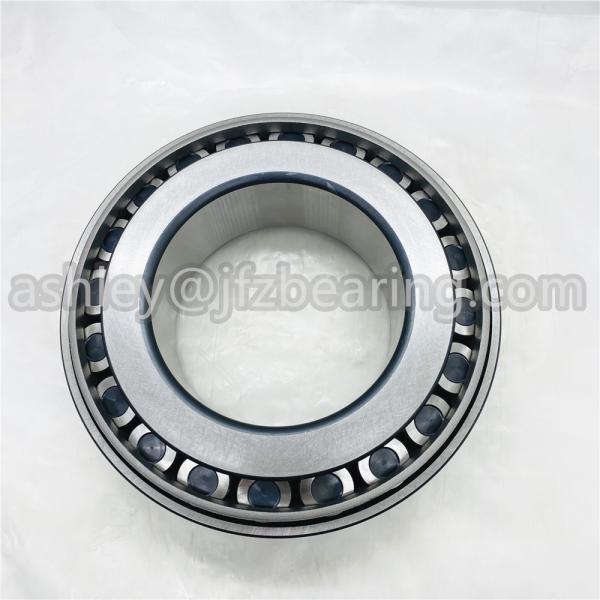

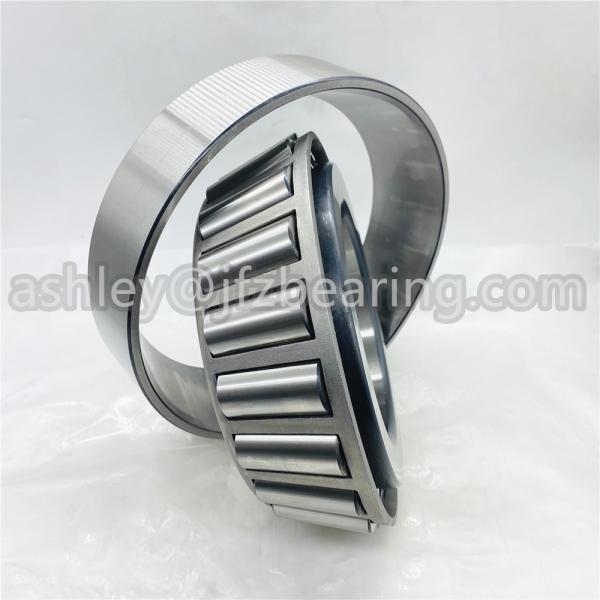

Product Picture

SKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup WidthSKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup WidthSKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup WidthSKF 32228 J2 Tapered Roller Bearing Chrome Steel - 140 mm Bore, 250 mm OD, 68 mm Cone Width, 58 mm Cup Width

Packing , Payment , Delievry and Stock

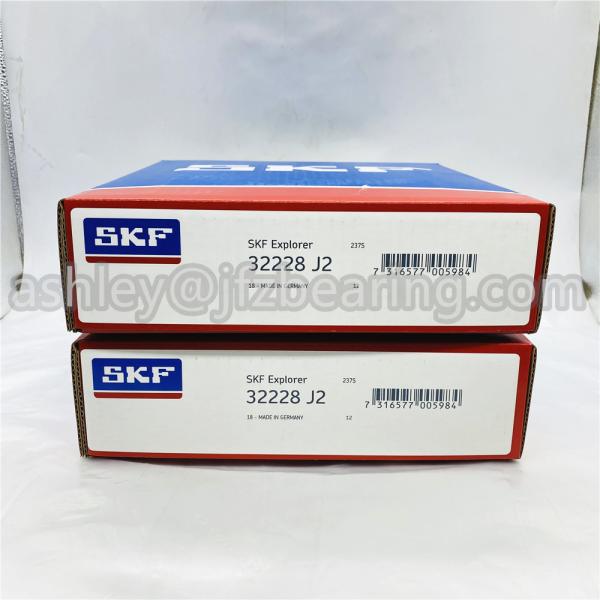

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
