SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!
SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!
SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!
SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!
SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!
SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!
SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!
SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!
Specifications
Brand Name :
SKF
Model Number :
BTM 100 A / P4CDBA
MOQ :
1
Price :
USD 0.5-10 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Precision rating :
P0 P6 P5 P4 P2
Material :
Chrome Steel
Service :
OEM Service.Design Service,OEM or original bearings
Sample :
Available
Package :
Original Package
Description

DIMENSIONS

d
100 mm
 Bore diameter
D
150 mm
 Outside diameter
H
45 mm
 Height
d1
123 mm
 Shoulder diameter shaft washer (high shoulder)
D1
137.1 mm
 Shoulder diameter housing washer (low shoulder)
r1,2
min.1.5 mm
 Shaft washer chamfer radius
r3,4
min.1 mm
 Housing washer small cham

ABUTMENT DIMENSIONS

da
min.107 mm
 Abutment diameter shaft
Da
max.145 mm
 Abutment diameter housing
ra
max.1.5 mm
 Fillet radius
rb
max.1 mm
 Fillet radius
dn
119.7 mm
 Oil nozzle position

CALCULATION DATA

Basic dynamic load rating C
41.5 kN
Basic static load rating C0
102 kN
Fatigue load limit Pu
3.8 kN
Attainable speed for grease lubrication
7 900 r/min
Attainable speed for oil-air lubrication
9 400 r/min
Contact angle α
30 °
Preload class A
400 N
Preload class B
1 200 N
Static axial stiffnes for preload A
350 N/µm
Static axial stiffnes for preload B
529 N/µm
Reference grease quantity Gref
22 cm³

NOTES
Speed values are applicable to bearings with light preload (suffix DBA). For bearings with a heavy preload (suffix DBB), attainable speeds are about 75% of the quoted values.

SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW! SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!

MASS

Mass bearing
2.5 kg

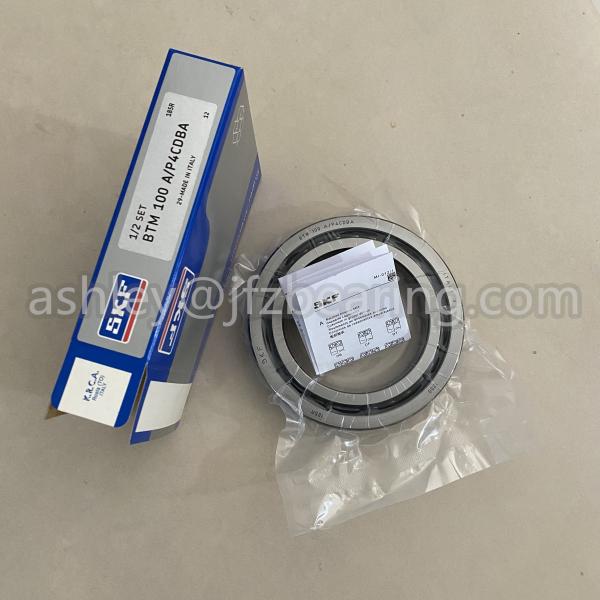

Product Picture

SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
