Round Flange 2~7 Pins Gx12 Aviation Connector 3A 200V For Panel Mounting
Round Flange 2~7 Pins Gx12 Aviation Connector 3A 200V For Panel Mounting
Round Flange 2~7 Pins Gx12 Aviation Connector 3A 200V For Panel Mounting
Round Flange 2~7 Pins Gx12 Aviation Connector 3A 200V For Panel Mounting
Round Flange 2~7 Pins Gx12 Aviation Connector 3A 200V For Panel Mounting
Round Flange 2~7 Pins Gx12 Aviation Connector 3A 200V For Panel Mounting
Specifications
Brand Name :
BEDE
Model Number :
gx12-CF-2~7
Certification :
CE RoHS
Place of Origin :
China
MOQ :
200 sets
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
7000 sets per day
Delivery Time :
within 48 hours after payment
Packaging Details :
packing with pe bags and 100 sets per carton
style :
panel mounting connector
pins :
2~7
rated current :
3A
working voltage :
200V
contact hole :
1.15mm
mounting hole :
12mm
wring type :
welding
main material :
zinc alloy with nickel plated
Description

GX12 Aviation Connector With Round Flange 2~7 Pins 3A 200V For Panel Mounting

Description

  1. Military grade connector set, male and female
  2. Female connector is wire welding model, suitable for cable diameter φ6mm

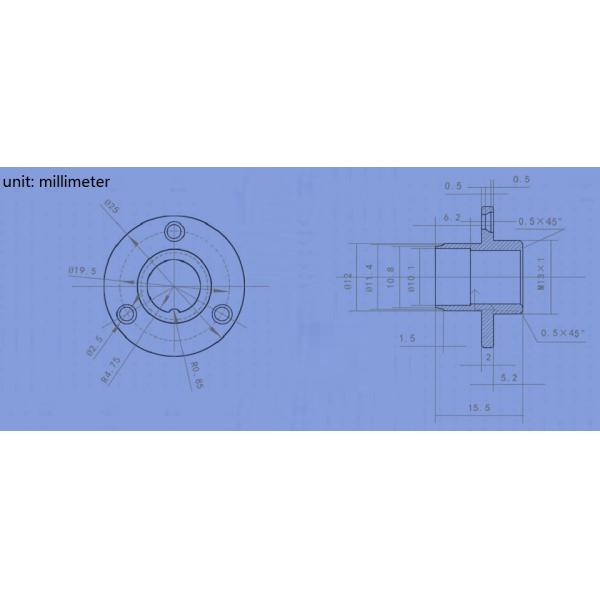

  3. The male connector is panel mount model, with circular flange, the panel needs to reserve 12mm mounting holes, 3 flange mounting holes, diameter φ2.5mm
  4. Applicable ambient temperature -50~+70℃
  5. service life: plug and unplug more than 500 times

Round Flange 2~7 Pins Gx12 Aviation Connector 3A 200V For Panel Mounting

Materials

  1. mine bady, zinc alloy with nickel plated, silver color
  2. insulator, bakelite material, black color
  3. contact pins, brass with silver plated, silver color

Electrical data

pins rated current rated voltage Insulation resistance Contact resistance
2~7 3A 200 1500MΩ 0.003Ω

Round Flange 2~7 Pins Gx12 Aviation Connector 3A 200V For Panel Mounting

Similar product

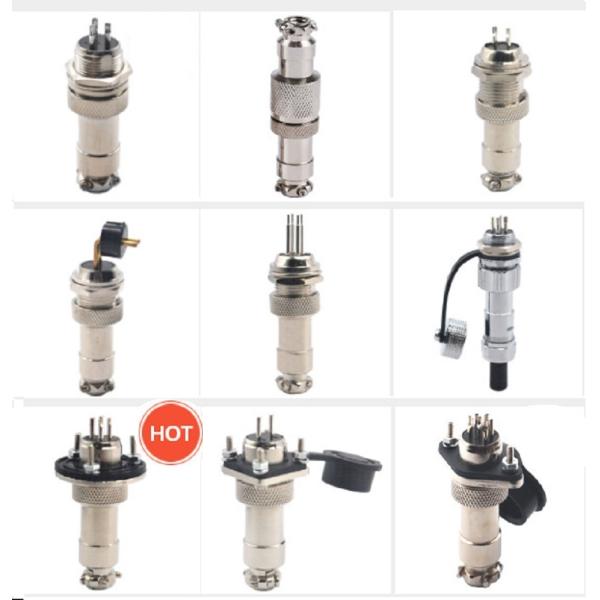

GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and right angle pins, GX12 waterproof type, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking typeRound Flange 2~7 Pins Gx12 Aviation Connector 3A 200V For Panel Mounting
