PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel
PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel
PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel
PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel
PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel
PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel
Specifications
Brand Name :
BEDE
Model Number :
1710P-1712S
Certification :
CE RoHS
Place of Origin :
China
MOQ :
160 sets
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000sets per day
Delivery Time :
within 5 days
Packaging Details :
packing in PE bag each and 80sets per carton
shell material :
PA66 UL94V-0
pins material :
brass with gold plated
applicabel wire :
5~8mm / 7~10mm
applicable temperatrue :
-25~+80℃
Withstand voltage :
1500V
mounting hole :
17mm
Description

M17 Waterproof Connector Panel Mounting Connector 2 3 4 5 6 7 9 Pin Cable To Panel

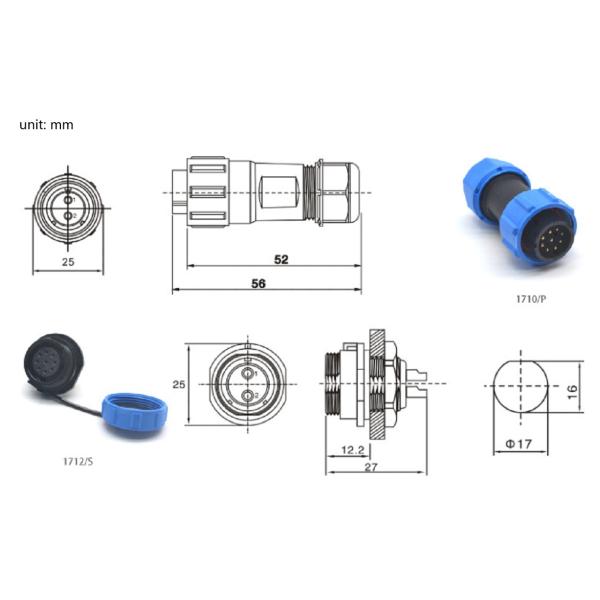

Structure

1. Female connector for panel mounting, housing merterial is PPS(Temperature resistance 260℃), pins merterial is brass with gold plated

2.Protactive cap, protect the socket when not connected

3.O-ring for waterproofing, rubber material

4.Male connector, material as the same as female

5.Nut for fixing male and female after connection

6.Housing, fix male connector and cable

7/8.Screw claw and nut for waterproof of cable end

PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel

Electrical data

pins 2 3 4 5 6 7 9
Rated current / A 10 10 5 5 5 55
contact hole size / mm Φ1.5x2 Φ1.5x3 Φ1.0x4 Φ1.0x5 Φ1.0x6 Φ1.0x7 Φ1.0x9
working voltage / V 500 500 500 500 400 400 400

PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel

All family

M13 M17 M21 are in stock, all of them have cable-to-cable docking model and cable to panel mounting models
