Specifications
Brand Name :
BEDE
Model Number :
AISG-0136
Certification :
CE RoHS
Place of Origin :
China
MOQ :
300pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs per day
Delivery Time :
4days after payment
Packaging Details :
packing in PE bag with mounting nut and Protective cap, 150pcs per carton
wiring method :
welding
pins :
5
style :
rear mounting
mounting hole :
18mm
length :
100mm
contcat resistance :
3Ω max
Description

AISG RET Cables AISG Rear Panel Mounting Male Contacts To 5 Pins Crimp Terminal

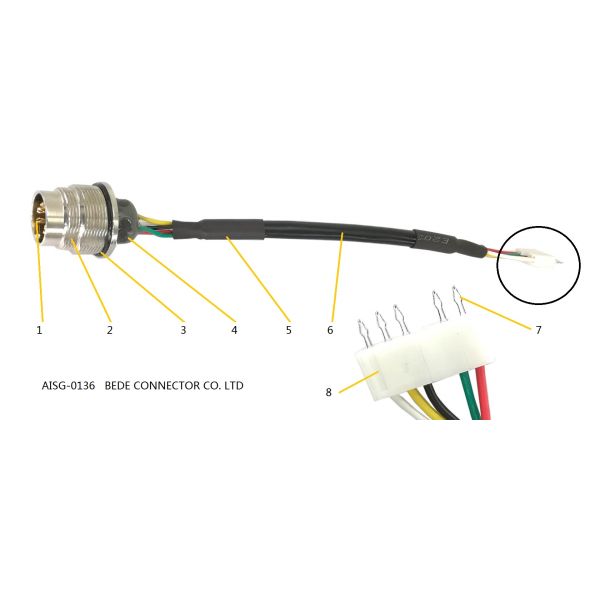

Structure

1. contact pin of AISG connector, brass with gold plated

2.housing of AISG male connector, copper with nickel plated

3.O-ring for waterproof, rubber material

4. Epoxy glue to seal wires and waterproof

5.heat shrink tube, color and length can be customized

6. cable jacket with Shield, cable gauge 5*22AWG

7.contact pin of crimp terminal, brass with silver plated

8. 6 pins crimp terminal, the 3rd pin not connect. Terminal block of this end can be customized

AISG RET Cables AISG Rear Panel Mounting Male Contacts To 5 Pins Crimp Terminal

Pins location

Male pin layout is based on DIN EN 61076-2-106:2012-04 variant 08-a. The male pins 2, 4 and 8 are not in use for AISG applications. Male pin 1 shall not be used for new constructions, only needed to keep compatibility to older versions. Pin assignment according AISG specification.AISG RET Cables AISG Rear Panel Mounting Male Contacts To 5 Pins Crimp Terminal
