RET Control Cables 0.5~100 Meter 5 Pin AISG Male To Female For MCU To RCU

What is RET Cables:

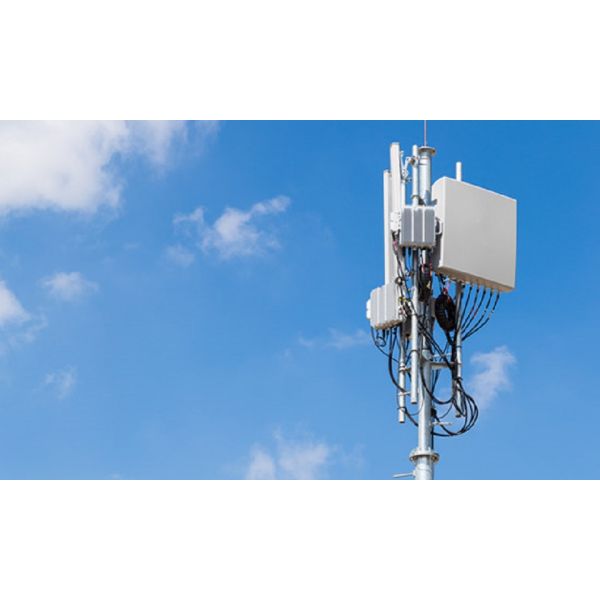

Remote Electrical Tilt (RET) is a system that makes it possible to adjust the electrical tilt of an antenna remotely. The RET Cables is generally used on the base station antenna, used for feeding signal and power from the controller to the Remote Control Unit (RCU), making remote adjustments to the angle of the antenna. It consists of two AISG connectors with IP67 degree, one type of male end and another type of female end, connected by an RVVP cable.

Quick details:

Applications:

• Remote Electrical Tilt (RET) System Applications or Remote Control Unit (RCU)
• Antenna Control Unit for AISG Compliant Systems
• Tower Mounted or Masthead Amplifiers with AISG Interface (TMA)
• Network Control with Integrated AISG Interface
• Antenna Base Stations
• Separate connectors (male and female)or cables are on sale also

Features:

1. 720 h salt spray resistance, connectors and cables no abnormality

2. IP68 protection without tape

3. EMC with 30 db

4. Female end 8 pin layout , male end 5 pins

5. Gauges materials is gold plated copper, good electrical conductivity and low contact resistance

6. Length: 0.5~100 meters, or by feet, customized available

About the wire:

• 4 cores cables, the following two specifications are for your opinion, the second price is lower
• 3x 0.75mm²(20 AWG) stranded (power) 2 x 0.25mm²(23 AWG) twisted pair (data) 5 cores cable 8mm (0.26 inch) diameter
• 3 x 0.41mm²(21AWG) stranded (power) 2 x 0.21mm² (24 AWG)twisted pair (data) 5 cores cable 8mm (0.26 inch) diameter
• The outer jacket is available in two materials for your opinion, PU or PVC, PU quality is better, PVC price is lower
• Aluminum-Magnesium alloy braid‐type shield, coverage≥ 85%
