Male And Female Docking Circular Connectors 2 3 Pins 10A 500V
Male And Female Docking Circular Connectors 2 3 Pins 10A 500V
Male And Female Docking Circular Connectors 2 3 Pins 10A 500V
Male And Female Docking Circular Connectors 2 3 Pins 10A 500V
Male And Female Docking Circular Connectors 2 3 Pins 10A 500V
Male And Female Docking Circular Connectors 2 3 Pins 10A 500V
Male And Female Docking Circular Connectors 2 3 Pins 10A 500V
Male And Female Docking Circular Connectors 2 3 Pins 10A 500V
Specifications
Brand Name :
BEDE
Model Number :
WS16-D-2 / 3
Certification :
CE RoHS
Place of Origin :
China
MOQ :
100 sets
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000sets per day
Delivery Time :
3 days
Packaging Details :
100set per carton
housing material :
Zinc Alloy with Chrome Plated
contact material :
brass with gold plated
Insulation Materials :
PPS
applicable wire :
6mm
Rated current :
10A
Rated voltage :
500V
Description

WS16 Circular Connector Male And Female Docking Connectors 2 3 Pins 10A 500V

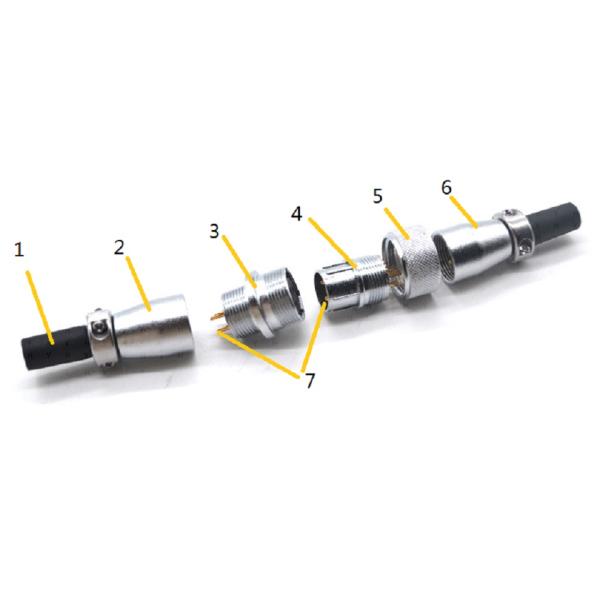

Product structure

1.Cable protection sleeve, suitable for cable diameter 6mm

2.housing for female connector, zinc alloy with chrome plated

3.female connector, housing materials zinc alloy with chrome plated, Insulator material PPS plastic

4.male connector, materials as the same as female connector

5.Nut,materials zinc alloy with chrome plated,used for fixing male and female adter connection

6.housing for male connector

7.contact pins, brass material with gold plated

Male And Female Docking Circular Connectors 2 3 Pins 10A 500V

Product Size

Female connector: ΦD=M18 L=47.5mm Φd max=10mm

Male connector: ΦD=21mm L=44.8mm Φd max=10mm

Male And Female Docking Circular Connectors 2 3 Pins 10A 500V

Electrical data

pins rated current rated voltage contact hole diameter contact resistance wire section (AWG)
2 / 3 10A 500V φ1.5 2.5mΩ 14

Similar product

This page is about WS16, WS20, WS24, WS28 on sales also, the series also includes panel mount mode, square flange mode, please feel free to contact us if you are interested
