Specifications
Brand Name :
BEDE
Model Number :
AISG-0016
Certification :
CE RoHS
Place of Origin :
China
MOQ :
150 pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5800 pcs per day
Delivery Time :
4 days after payment
Packaging Details :
packing in PE bag with mounting nut and protective cap, 150pcs per carton
wire gauge :
22AWG
rated current :
3A
Withstand voltage :
AC 500V
contact resistance :
3Ω max
Insulation resistance :
5MΩ min
applicable temperature :
-45 ~ + 80℃
Description

AISG Panel Connector Cables RET Cables Male To Female With SCN2.54-6P Plug

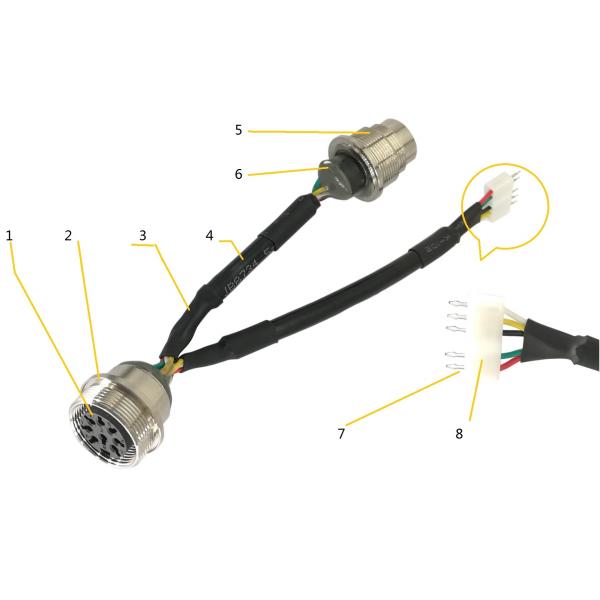

Structure

1. Insulator, female connector, PBT plastic material,

2. housing of female connector, brass with nickel plated

3. Heat shrink tube for protecting cables, EVA material

4. cable jecket with Aluminum Magnesium alloy shielding layer, wire gauge 22AWG,

5. Male connector, housing material is brass with nickel plated, contact pins material is brass with gold plated

6. Epoxy, sealed wires and waterproof

7. contact pins, brass with silver plated

8. SCN2.54-6P connector, this end can be customized on request

22AWG Wire Gauge RET Cables Male To Female AC 500V With SCN2.54-6P Plug

Contact pin location

Pin No. 1 2 3 4 5 6 7 8
color blue not contact white not contact brown red black not contact

Notice

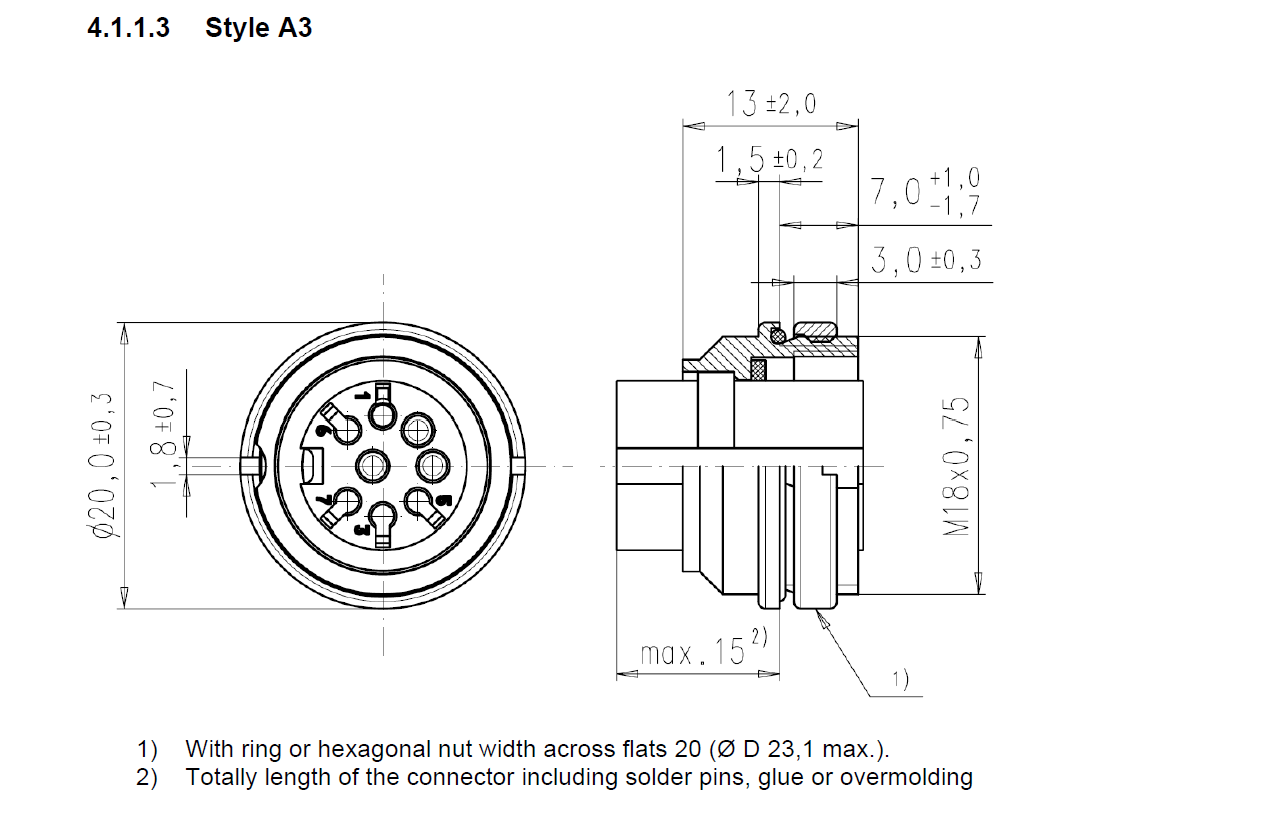

The AISG connector male and female is made according AISG C485, fixed connector, rear panel mounting, A1 style and A3 style
