Customized 500-1000L Beer Brewing Equipment
Customized 500-1000L Beer Brewing Equipment
Specifications
Brand Name :
HERMANN
Model Number :
HEM-300L/500L
Certification :
CE ISO UL
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
45 working days
Packaging Details :
Iron frame
Name :
Micro brewing equipment
Capacity :
500-1000L
Material :
304 stainless steel and copper
Control :
PLC semi-automatic manual
Surface treatment :
polishing
Insulation :
Rock wool
Whether it can be customized: :
customized
Description

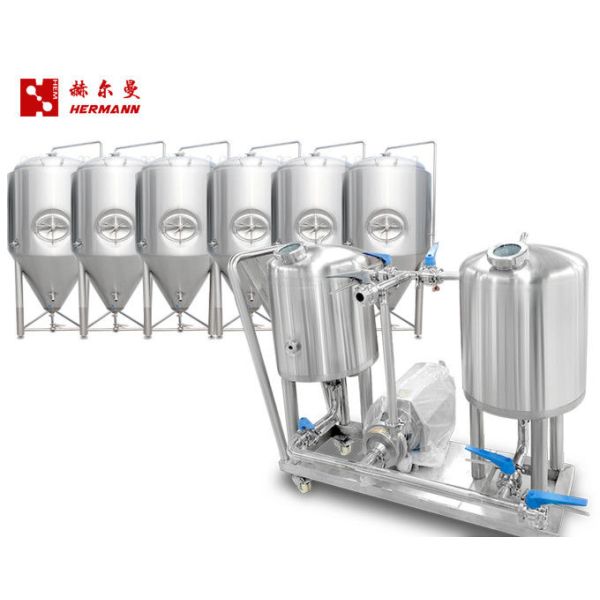

Customized 500-1000L Beer Brewing Equipment

Introduction to beer brewing equipment

The Brewpub 500-1000L beer brewing equipment we produce is a set of technical equipment used to produce "live" and filtered beer. The brewing master makes beer attractive to consumers through unique brewing technology and unique beer taste. If necessary, they can be placed directly in beer consumption places: restaurants, bars, bars, hotels, tourists and shopping centers. In addition to stainless steel, interpreters may also face polished brass and copper. Similarly, the microbrewery is placed behind the glass partition so that visitors can observe the beer brewing process. This is an excellent internal design solution and a powerful marketing tool.
Customized 500-1000L Beer Brewing Equipment
Advantages of small beer brewing equipment
In restaurants, bars, and hotels, most of the installations use 2 to 8 barrels of microbrewery. The restaurant network uses larger capacity equipment. The Tiantai Microbrewery is being installed at the turnkey of the client company. It is not profitable to release less than 200 liters of beer per day, so the minimum performance of our equipment is 200 liters.
1000L Brewery Configurations
Architecture Main Components Brewing process
1.Milling System 01.Malt Mill Malt crushing in mille
2.Heating Method 01.Steam Boiler(Optional) For heating saccharification systems
02.Burner(Optional)
03.Electric Heating(Optional)
3.Saccharification System 01.Mash Tun / Lauter Tank & Brew Kettle/Whirlpool Tank (2 Vessel) Extraction of sugar from malt for subsequent fermentation
02.Mash Tun & Lauter Tank & Brew Kettle/Whirlpool Tank(3 Vessel)
03.Mash Tun / Lauter Tank & Brew Kettle & Whirlpool Tank(3 Vessel)
04.Mash Tun & Lauter Tank & Brew Kettle & Whirlpool Tank(4 Vessel)
4.Fermentation System 01.Fermentation Tank Use for cool wort fermentation or maturation.
02.Bright Tank
5. Cooling System 01.Glycol Tank Use for glycol water chilling and keep cooling wort in the late of fermentation period
02.Glycol Unit
6. Cleaning System 01.Disinfection Tank Use for cleaning tanks
02.Alkali Tank
7. Control System 01.PID Plays a controlling role in the brewing process
02.PLC(Siemens)
8.Packing system 01.Bottling Beer filling
02.Canning
03.Kegging

Features of beer brewing equipment
▪ Feed bucket with multiple steam jackets and agitation.
▪ Lauter tun container with grain outer door and milling screen
▪ Brewing kettle/vortex container with multiple steam jackets
▪SS 304 working platform, with hygienic process and molding technology
▪Sanitary pipes and valves
▪Variable speed wort pump
▪Glass wort supplement
▪ Sanitary heat exchanger and wort aeration system
▪Tank light assembly
▪Mud hydration
▪Brewery control cabinet
