Complete Beer Manufacturing Equipment Sanitary Wort Pumps With Variable Speed Control
Complete Beer Manufacturing Equipment Sanitary Wort Pumps With Variable Speed Control
Complete Beer Manufacturing Equipment Sanitary Wort Pumps With Variable Speed Control
Complete Beer Manufacturing Equipment Sanitary Wort Pumps With Variable Speed Control
Complete Beer Manufacturing Equipment Sanitary Wort Pumps With Variable Speed Control
Complete Beer Manufacturing Equipment Sanitary Wort Pumps With Variable Speed Control
Complete Beer Manufacturing Equipment Sanitary Wort Pumps With Variable Speed Control
Complete Beer Manufacturing Equipment Sanitary Wort Pumps With Variable Speed Control
Specifications
Brand Name :
HERMANN
Model Number :
HEM-50L/100L/200L/300L/500L
Certification :
CE,ISO9001,TUV
Place of Origin :
China
MOQ :
≥1Set/Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1-30 Set/Sets per Month
Delivery Time :
15-35 work days
Packaging Details :
Iron frame
Name :
Home beer brewing system
Material :
Stainless Steel 304/Stainless Steel 316/Copper
Heating way :
Steam Heating /Electric Tube Heating/Direct Fire Heating
Thickness of Tanks :
Inner 3mm/Outer 2mm
Heat Insulation :
Rock Wool
Surface :
Brushed Stainless Steel
After-sales Service Provided :
Engineers available to service machinery overseas
Control System :
PLC
Description

Complete Home Beer Brewing Equipment Sanitary Wort Pumps With Variable Speed Control

Home Brewing System Introduction

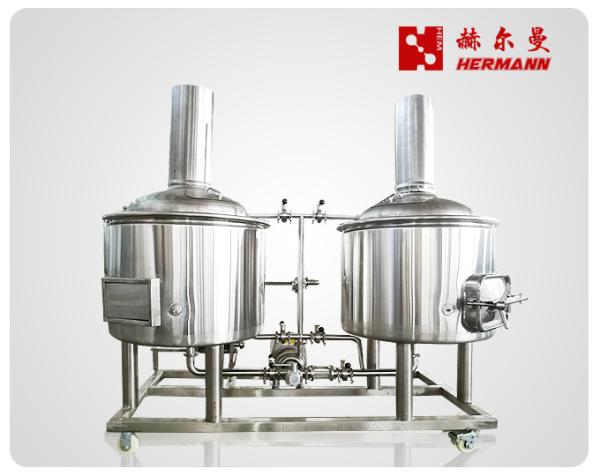

This skid home brewing system is designed for craft brewing amateurs who has been experienced in simple home brewing and would like to be close to commercial brewing. This system includes all functions which a microbrewery system standardly have. Whole mashing procedure happens in one tank with a filter drum inside. Two fermentation tanks are all insulated and jacketed with temperature controller for each. The glycol cooling system has one small ice water tank and a mini refrigerator. All the system seats on a skid with heavy wheels. It is very easily movable. This integreted brewing system is able to take on most of the real brewing in a micro brewery. It is suitable for some enthusiastic brewing fans or family party or some brewery labs.

Complete Beer Manufacturing Equipment Sanitary Wort Pumps With Variable Speed Control

Complete Beer Manufacturing Equipment Sanitary Wort Pumps With Variable Speed Control

Complete Beer Manufacturing Equipment Sanitary Wort Pumps With Variable Speed Control

Specification

Mash/lauter boiling whirlpool combined tank 50L
Accessories of the brewhouse Plate heat exchanger/Centrifugal type wort pump/Brewhouse Pipes/With sight glass
Insulated fermenters 2*50L
Glycol water box with refrigerator
Accessories of the cooling system

Chiller/Glycol water pump/Pipes & Valves
Control system

Control Cabinet/Digital gauge controller/Control & Signal Wire

Power request specification

Heating Elements 6kw; 220v/50,60Hz
Wort pump 0.55kw; 220v/50,60Hz
Refrigerator 1.5KW; 220v/50,60Hz

PRODUCT FEATURES

▪ Mash tun vessel with multi steam jackets and agitation.

▪ Lauter tun vessel with grain out door and Milling sieve plate

▪ Brew kettle/ whirlpool vessel with multi steam jackets

▪ SS 304 work platform with sanitary process with a molding technology

▪ Sanitary piping &valves

▪ Sanitary wort pumps with variable speed control

▪ Glass wort grant

▪ Sanitary heat exchanger and wort aeration system

▪ Tank light assemblies

▪ Mash hydration assembly

▪ Brewhouse control cabinet
