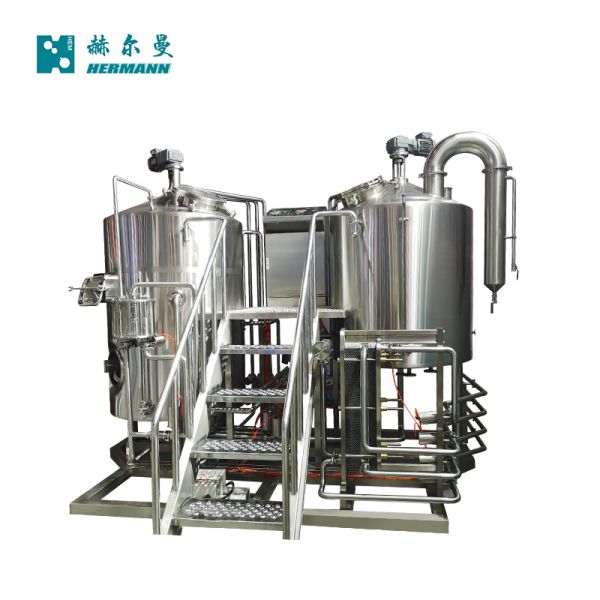

PLC Control 5BBL Craft Beer Brewing Equipment CE ISO9001 Certificate
PLC Control 5BBL Craft Beer Brewing Equipment CE ISO9001 Certificate
PLC Control 5BBL Craft Beer Brewing Equipment CE ISO9001 Certificate
PLC Control 5BBL Craft Beer Brewing Equipment CE ISO9001 Certificate
Specifications
Brand Name :
HERMANN
Model Number :
HEM-5BBL
Certification :
CE,ISO9001,TUV
Place of Origin :
China
MOQ :
≥1Set/Sets
Price :
US $20000-$39999 Set/Sets
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1-30 Set/Sets per Month
Delivery Time :
15-50 work days
Packaging Details :
Iron frame
Name :
Beer making system
Material :
Stainless Steel 304/Stainless Steel 316/Copper
Heating way :
Steam Heating /Electric Tube Heating/Direct Fire Heating
Thickness of Tanks :
Inner 3mm/Outer 2mm
Heat Insulation :
Rock Wool
Control System :
PLC
Surface :
Brushed Stainless Steel
After-sales Service Provided :
Engineers available to service machinery overseas
Description

PLC Control 5BBL Craft Beer Brewing Equipment CE ISO9001 Certificate

The Whole System of Beer Brewing Introduction

Equipments Request Components
1. Milling System Malt Miller
2. Mashing System Mash/Lauter Tun
Boiler Tank
Boiler
Heat Exchanger
Wort Pump
Stiring Device (Optional)
Other accessories are available: 1. Ornamental Pipe; 2. Mashing Pipeline; 3. Operating Plateform; 4. Yeast Feeder; 5. Venturi Tube; 6. Butterfly Valve DN40; 7. Butterfly Valve DN32; 8. Soft Pipe; 9. Dregs Rake; 10. Sugar Measuring Cylinder; 11. Saccharimeter;
3. Fermenting System Fermentation Tank
Other accessories are available: 1. L-Pipe; 2. Butterfly Valve; 3. Pressure Gage; 4. Solenoid Valve; 5. Vacuum Valve; 6. Cooling Pipe; 7. Thermal Insulation Pipe;
4. Cooling System Ice Water Tank
Refrigeration Machine
Centrifugal Pump
Evaporator
Ice Water Pump
Relative Pipes and Valves
5. CIP System Washing Tank
Sterilization Tank
Pump and Valve
6. Filter System Kieselguhr Filter
Membrane Filter
Filtered Beer Tanks
7. Packing System Fresh Keg Packing Machine
Pop Can Packing Machine
Glass Bottle Packing Machine
8. Controlling System Mashing Control Panel
Fermenting Control Panel
Refrigerating Control Panel

PLC Control 5BBL Craft Beer Brewing Equipment CE ISO9001 Certificate

Brewhouse System Introduction

Brewhouse System is mainly composed by mash tun,lauter tun, boil/whirlpool tun, hops adding equipment etc.

The main body of brewhouse system all using international standards, high-quality 304 stainless steel. The manufacture is using of modern automatic plasma & laser cutting and the protection of pure argon gas welding and other technology. External matte polished to ensure customers with high quality and low price, beautiful mash system.

Mash tun

Use of highly efficient miller jacket heat technology, the application of scientific principles of steam turbulence to achieve maximum heat transfer, energy-saving effects, while taking fully automated temperature control technology, to ensure the heating and the heat accuracy at the stage of the saccharification, gelatinization process.
The international advanced speed control system using the variable frequency, automatic control technology to ensure the homogeneous liquid mixture gelatinization, mash saccharification process. This system can maximize the biological activity and conversion, catalytic effect of the enzymes in the gelatinization, saccharification process, to ensure the best quality beer and the highest yield from the source.

Lauter tun

Use of advanced scientific farming knife shaped structure and hydraulic automatic take-off and landing system technology to ensure the uniform double slot, the smooth groove and also the improved filtering speed and production efficiency. Maintain the transparency of the wort and a good juice yield.
Applying with the international advanced suspension, stirring devices, with variable frequency, speed control, automatic control technology, so that the operation could be more convenient, flexible and maintenance is simple, cost-saving.

Boil/whirlpool tun

In application of advanced boiling, pressurized technology to improve the boiling intensity, greatly increased the evaporation dimethyl sulfide, promote coagulation such as proteins and other cohesive material, so that rapid separation of boiled wort and polymers.
By the off-pump hybrid technology to speed up the inside wort heating rate, wort is heated with an even temperature to avoid partially overheating caused degeneration phenomenon. This technology can ensure the quality of the boiled wort.
Design according to the quantity of the spent grain on unit filtration area, enlarges the proportion of the height and diameter, reduces the speed, promotes the settlement of coagulum and cohesion to achieve the best separation


PRODUCT FEATURES

▪ Mash tun vessel with multi steam jackets and agitation.

▪ Lauter tun vessel with grain out door and Milling sieve plate

▪ Brew kettle/ whirlpool vessel with multi steam jackets

▪ SS 304 work platform with sanitary process with a molding technology

▪ Sanitary piping &valves

▪ Sanitary wort pumps with variable speed control

▪ Glass wort grant

▪ Sanitary heat exchanger and wort aeration system

▪ Tank light assemblies

▪ Mash hydration assembly

▪ Brewhouse control cabinet
