Long Service Life Automated Brewing System , 1000L Craft Beer System
Long Service Life Automated Brewing System , 1000L Craft Beer System
Long Service Life Automated Brewing System , 1000L Craft Beer System
Long Service Life Automated Brewing System , 1000L Craft Beer System
Long Service Life Automated Brewing System , 1000L Craft Beer System
Long Service Life Automated Brewing System , 1000L Craft Beer System
Long Service Life Automated Brewing System , 1000L Craft Beer System
Long Service Life Automated Brewing System , 1000L Craft Beer System
Long Service Life Automated Brewing System , 1000L Craft Beer System
Long Service Life Automated Brewing System , 1000L Craft Beer System
Specifications
Brand Name :
HERMANN
Model Number :
HEM-1000L
Certification :
CE,ISO9001,TUV
Place of Origin :
China
MOQ :
≥1Set/Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1-30 Set/Sets per Month
Delivery Time :
15-50 work days
Packaging Details :
Iron frame
Material :
Stainless Steel 304/Stainless Steel 316/Copper
Heating way :
Steam Heating /Electric Tube Heating/Direct Fire Heating
Thickness of Tanks :
Inner 3mm/Outer 2mm
Heat Insulation :
Rock Wool
Control System :
PLC
Surface :
Brushed Stainless Steel
After-sales Service Provided :
Engineers available to service machinery overseas
Description

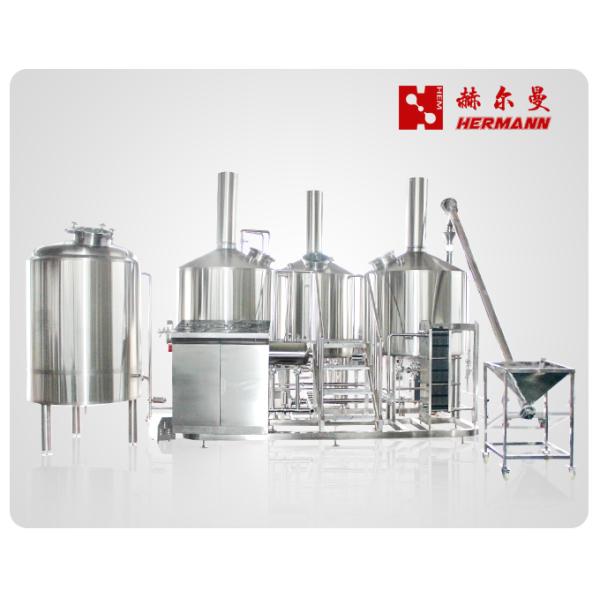

1000L Brewhouse System Stainless Steel 304 Craft Beer Brewery Equipment for Micro Brewery

Brewhouse System Introduction

Brewhouse System is mainly composed by mash tun,lauter tun, boil/whirlpool tun, hops adding equipment etc.

The main body of brewhouse system all using international standards, high-quality 304 stainless steel. The manufacture is using of modern automatic plasma & laser cutting and the protection of pure argon gas welding and other technology. External matte polished to ensure customers with high quality and low price, beautiful mash system.

Mash tun

Use of highly efficient miller jacket heat technology, the application of scientific principles of steam turbulence to achieve maximum heat transfer, energy-saving effects, while taking fully automated temperature control technology, to ensure the heating and the heat accuracy at the stage of the saccharification, gelatinization process.
The international advanced speed control system using the variable frequency, automatic control technology to ensure the homogeneous liquid mixture gelatinization, mash saccharification process. This system can maximize the biological activity and conversion, catalytic effect of the enzymes in the gelatinization, saccharification process, to ensure the best quality beer and the highest yield from the source.

Lauter tun

Use of advanced scientific farming knife shaped structure and hydraulic automatic take-off and landing system technology to ensure the uniform double slot, the smooth groove and also the improved filtering speed and production efficiency. Maintain the transparency of the wort and a good juice yield.
Applying with the international advanced suspension, stirring devices, with variable frequency, speed control, automatic control technology, so that the operation could be more convenient, flexible and maintenance is simple, cost-saving.

Boil/whirlpool tun

In application of advanced boiling, pressurized technology to improve the boiling intensity, greatly increased the evaporation dimethyl sulfide, promote coagulation such as proteins and other cohesive material, so that rapid separation of boiled wort and polymers.
By the off-pump hybrid technology to speed up the inside wort heating rate, wort is heated with an even temperature to avoid partially overheating caused degeneration phenomenon. This technology can ensure the quality of the boiled wort.
Design according to the quantity of the spent grain on unit filtration area, enlarges the proportion of the height and diameter, reduces the speed, promotes the settlement of coagulum and cohesion to achieve the best separation

Long Service Life Automated Brewing System , 1000L Craft Beer System

PRODUCT FEATURES

▪ Mash tun vessel with multi steam jackets and agitation.

▪ Lauter tun vessel with grain out door and Milling sieve plate

▪ Brew kettle/ whirlpool vessel with multi steam jackets

▪ SS 304 work platform with sanitary process with a molding technology

▪ Sanitary piping &valves

▪ Sanitary wort pumps with variable speed control

▪ Glass wort grant

▪ Sanitary heat exchanger and wort aeration system

▪ Tank light assemblies

▪ Mash hydration assembly

▪ Brewhouse control cabinet
