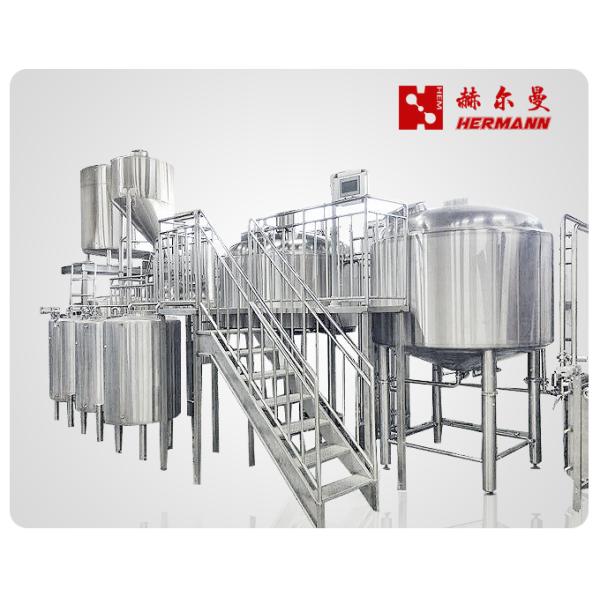

Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels
Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels
Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels
Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels
Specifications
Brand Name :
Shandong Hermann Biological Engineering Co,.Ltd
Model Number :
Hermann-1000L
Certification :
CE, ISO 9001, TUV
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
30 set per month
Packaging Details :
Iron
Delivery Time :
50 Working Days
Name :
Brewpub equipment
Material :
SUS304
Thcikness :
Inner 3mm, outer 2mm
Insulation Material :
Rock Wood
Surface :
Brushed Stainless Steel
After-sale Service :
Engineer On-site Installation
Control System :
PLC Control
Heating :
Steam/Electric/Fire
Description

Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels

Advantage

1) Automatic /semi-automatic operation system ,need one or two brewer operate

2) with our equipment you can make different kinds beer such as ale,lager, IPA, stout beer and so on, we supply the brewing recipes

3) we have different capacity from 50L to 10000L per batch , our brewery equipment approved PessureCE, ISO ,ROHS,TUV certificate

4) have good feedback from our clients

5) Installation/Operation/ Service/ Maintenance Manual: Provided In English.

Beer brewing equipment are usually independently owned. Such breweries are

generally characterized by theire empahsis on flavor and brewing technique. We supply

microbreweries from 500L to 3500L per brew. Our service includes:complete

microbrewery equipment, installation, recipes of branded beers, staff training etc.

If necessary, it can be expanded in future.

Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels

Brewhouse System is mainly composed by mash tun,lauter tun, boil/whirlpool tun, hops adding equipment etc.

The main body of brewhouse system all using international standards, high-quality 304 stainless steel. The manufacture is using of modern automatic plasma & laser cutting and the protection of pure argon gas welding and other technology. External matte polished to ensure customers with high quality and low price, beautiful mash system.

Mash System
Mash tun,Lauter tun
1:Total capacity 1300 litres,Effective capacity 1000 litres；
2:Size:Φ With reference to the drawings；
3:Heat Insulation:Polyurethane-thickness:80mm；
4:Inner 3.0mm/external 2.0mm(Wire drawing)；
5:Torispherical head:3.0mm Precision polishing；
6:Cone:3.0mm ；
7:Stir:grain raking,Stir:The upper stirring motor is equipped with a reducer,speed ratio 40；
8:Heating mode:steam,Dimple Jacket,The tank and cone are heated,Free rising temperature can be achieved；
9:Sieve plate:Milling machine sieve plate,4.0mm,spacing 0.7；
10:Cleaning :spray ball,360°；
11:Grain removal:The side Grain removal；
12:Cleaning :spray ball,360°；
13:Sparging device:Ring shape；
14:Whirlpool :Side entry,Diagonal plane,Formula calculation Angle；
15:Vent；Top vent；
16:Thermometry:pt100 sensor,Temperature control digital display；
17:Level gauge:Mash water feeding and dosing device ；
18:Internal Pickling passivation；
19:SUS304；
Wort kettle
Whirlpool setting tank
Mash tun accessories: Steam boiler,Mash pump,Plate heat exchanger,Mash tun pipes,Operation platform,Measuring bucket,Rake,Sugar meter,Malt Milling Unit,Wort thermometer,Yeast propagation,Hops dosing tank,Buffering tank,Oxygen filling device

Equipments Request Components
1. Milling System Malt Miller
2. Mashing System Mash/Lauter Tun
Boiler Tank
Boiler
Heat Exchanger
Wort Pump
Stiring Device (Optional)
Other accessories are available: 1. Ornamental Pipe; 2. Mashing Pipeline; 3. Operating Plateform; 4. Yeast Feeder; 5. Venturi Tube; 6. Butterfly Valve DN40; 7. Butterfly Valve DN32; 8. Soft Pipe; 9. Dregs Rake; 10. Sugar Measuring Cylinder; 11. Saccharimeter;
3. Fermenting System Fermentation Tank
Other accessories are available: 1. L-Pipe; 2. Butterfly Valve; 3. Pressure Gage; 4. Solenoid Valve; 5. Vacuum Valve; 6. Cooling Pipe; 7. Thermal Insulation Pipe;
4. Cooling System Ice Water Tank
Refrigeration Machine
Centrifugal Pump
Evaporator
Ice Water Pump
Relative Pipes and Valves
5. CIP System Washing Tank
Sterilization Tank
Pump and Valve
6. Filter System Kieselguhr Filter
Membrane Filter
Filtered Beer Tanks
7. Packing System Fresh Keg Packing Machine
Pop Can Packing Machine
Glass Bottle Packing Machine
8. Controlling System Mashing Control Panel
Fermenting Control Panel
Refrigerating Control Panel

Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels

Automatic / Semi Automatic Craft Beer Brewing Equipment 1000L 3 Vessels
