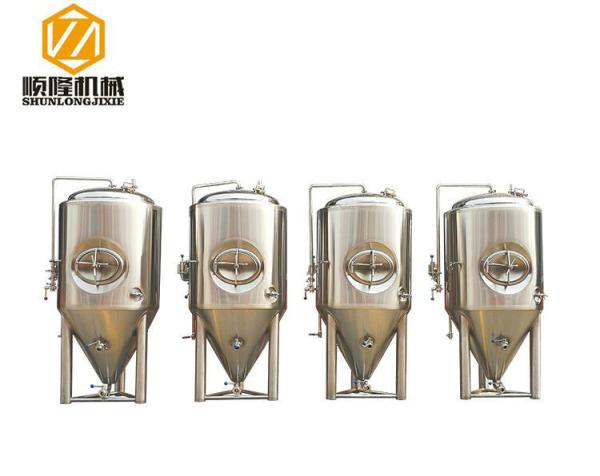

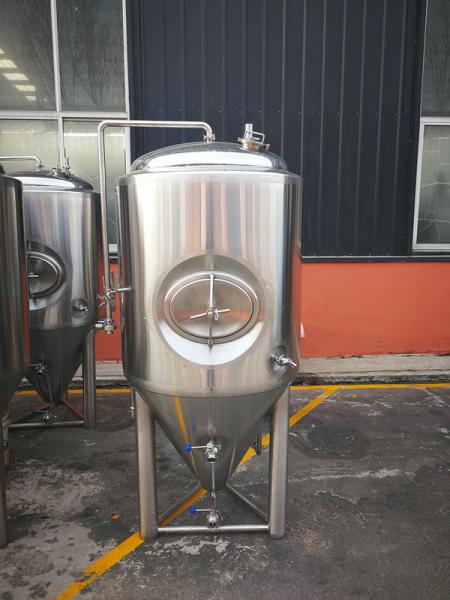

1000L Beer Fermentation Tanks , Stainless Steel Double Jacket Tank Fermenter With Dry Hopping
1000L Beer Fermentation Tanks , Stainless Steel Double Jacket Tank Fermenter With Dry Hopping
1000L Beer Fermentation Tanks , Stainless Steel Double Jacket Tank Fermenter With Dry Hopping
1000L Beer Fermentation Tanks , Stainless Steel Double Jacket Tank Fermenter With Dry Hopping
Specifications
Brand Name :
SLET
Model Number :
1000L
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
56,800 USD
Payment Terms :
T/T
Supply Ability :
35 working days
Delivery Time :
less than 40 working days
Packaging Details :
Q235 frame
Material :
Stainless stee/red copper
Working capacity :
1000L
Working pressure :
2 bars
Cone degree :
60/72
Founction :
Beer fermentation
Cooling :
With jacket
Description

1200L stainless steel double jacket fermenter with dry hopping

Production Details

• Design pressure 2 bars

• 4 stainless steel legs with leveling footpads

• Interior shell: 304 stainless steel, thickness 3mm

• Exterior shell: 304 stainless steel, thickness 2mm

• Interior and exterior finish bright polish to 0.6, hygiene surface

• 60 / 72 degree cone bottom, with 25% head space

• Racking arm and discharge port with butterfly valve and fittings

• Side manway door, food grade

• Dual zone dimple cooling jacket with separate glycol inlet and outlet

• Polyurethane insulation thickness 100mm for cooling jacket on side and bottom

• Fully welded exterior shell

• CIP arm and spray ball

• Rotating tank racking arm

• Vacuum & pressure relief valve, relief pressure 2bars

• Pressure gauge

• Thermometer

• Perlick style Sample valve

• Tank complete with fittings, valves and all parts.

1000L Beer Fermentation Tanks , Stainless Steel Double Jacket Tank Fermenter With Dry Hopping

. Brewhouse: two vessels, three vessels, four vessels brewhouse

2. Heating medium: steam heating

3. Insulation material: rock wool. Insulation thickness: 100mm

4. Mash tank; hydrator, mixer, steam heating jacket

5. Lauter tun: rake, agitator, false bottom, hydrator

6. Brewkettle, steam heating jacket, inner steam heating deivce

7. Whirlpool tun: whirlpool entry

1000L Beer Fermentation Tanks , Stainless Steel Double Jacket Tank Fermenter With Dry Hopping

Product advantages :

1- we support installation and debugging, technical guidance on site

2- engineer will teach how to brewing and running the production line, test the beer’s quaity

3- design drawing for free

4- competitive and low price of raw material

5- high quality of the beer equipment

6- competitive price

7- highly automatic or manual operation

8- material: SS304 or red copper

1000L Beer Fermentation Tanks , Stainless Steel Double Jacket Tank Fermenter With Dry Hopping

II Configuration

Item Capacity Material Heating method Mixed mode
2-vessel 100L 304 stailess steel(food grade) Steam &electricity &fire [Mash+Lauter(upper)+Whirlpool(lower)]+Kettle
200L
250L [Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool
500L
3BBL [Mash+Lauter(upper)+Whirlpool(lower)]+Kettle
3.5BBL [Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool
5BBL [Mash+Lauter(upper)+Whirlpool(lower)]+Kettle
7BBL [Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool

Shun Long Servie

Pre-sale service:

1. Make the equipment details specifications to customers

2. We can supply the OEM process, according to the drawings, the samples to customized the beer equipment

3. Layout plan in CAD drawings of beer machine.

4. The competitive price and the timely delivery.

After-sale service:

1. Provide the required customs declaration files, timely tracking freight

2. The equipment main configurationgs for 3 years warranty time, such as the valves and so on.

3. Professional engineers for installation, commissioning, maintenance.

4. Directed by executable remote installation(with no experience in beer, equipment installation experience, can also perform operations, please make this clear before custom equipment, we have successful cases)

1000L Beer Fermentation Tanks , Stainless Steel Double Jacket Tank Fermenter With Dry Hopping

If you are interested in our machines, please don't hesitate to contact me.

We can meet you what you want, looking forward to your inquiry. Let's go together in the process of cooperation to the good prospects.
